Complete your heat trace cable system with the right power connection, end seal, splice or tee kit. YeloDeer offers seven options for compatible cut-to-length self-regulating heating cable used in roof de-icing, gutter and downspout protection, and external pipe freeze protection.
Bulk heating cable needs a power connection, sealed unused ends and properly completed joints before use. Choose the connection you need first, then the assembly method that suits your installation. For end sealing and cable joining, ES-PRO and TS-PRO offer screwdriver assembly without a heat gun; KYSF02 and KYSF04 use heat-shrink components.
CSA Certified — Canada & USA
For specified self-regulating heating cable systems used in pipe freeze protection and roof & gutter de-icing.
The key difference is where the connection is made and whether a power cord and GFCI plug are supplied.
Connection layouts are examples. Select the kit for your power connection, whether the cable serves a roof, gutter, downspout or external pipe.

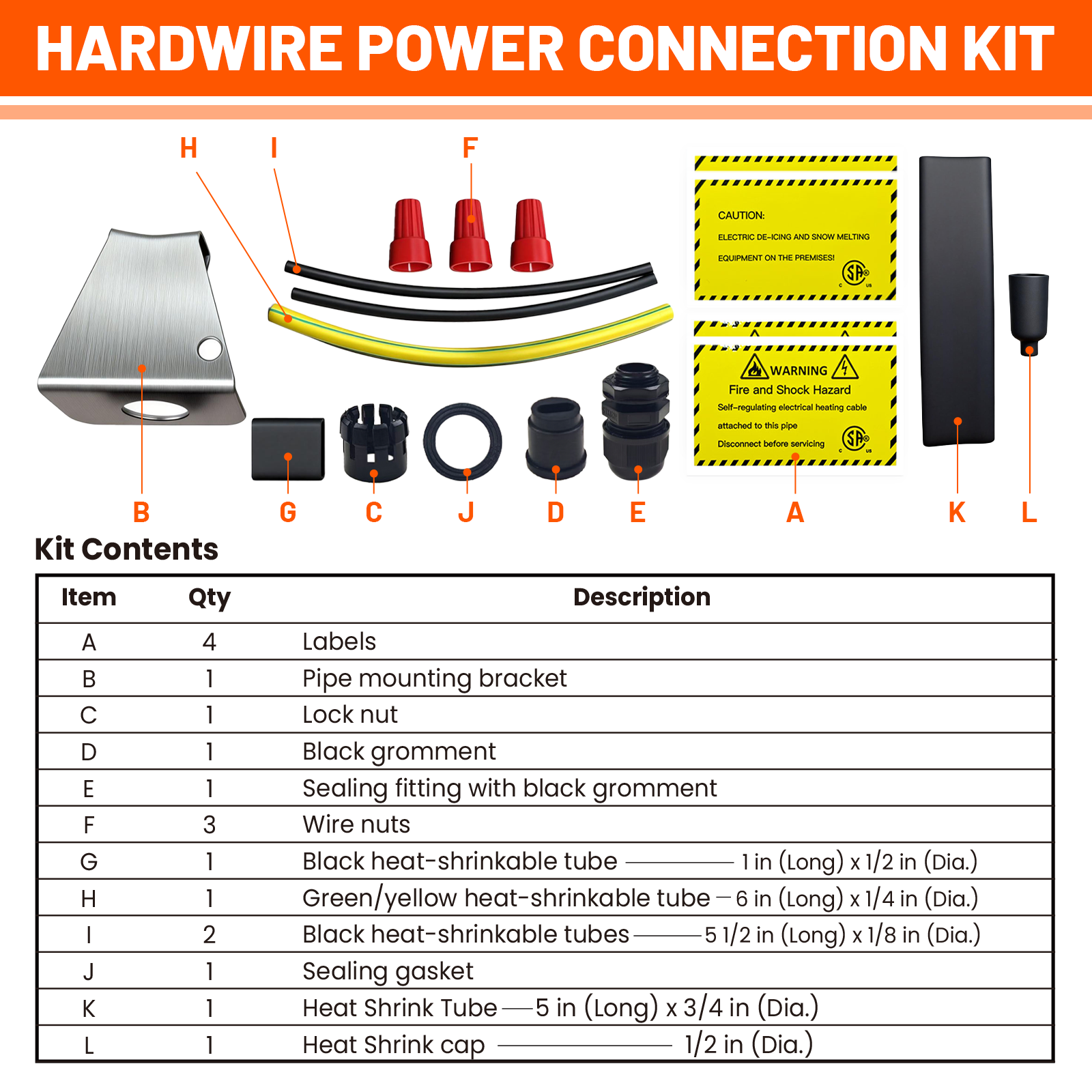

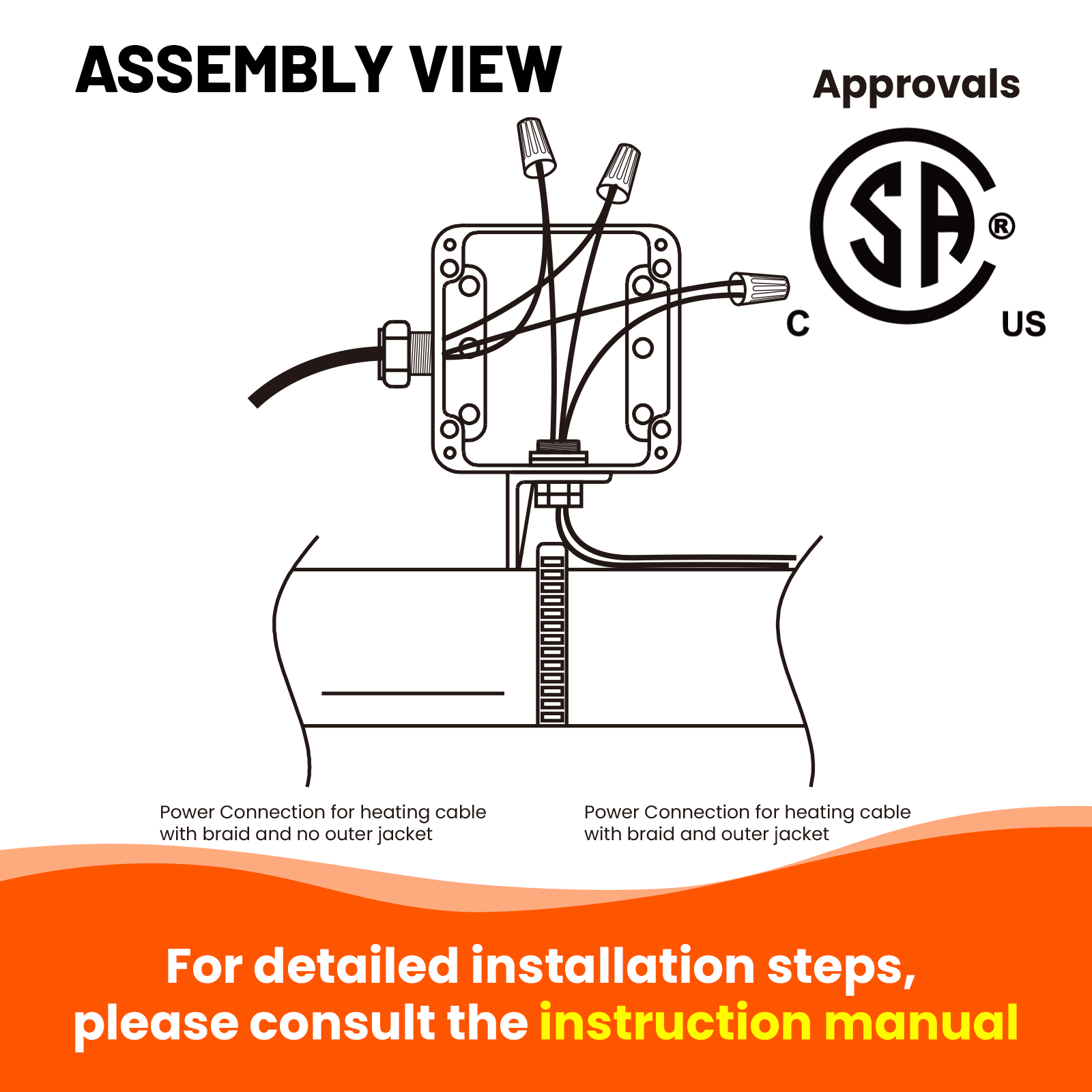

KYSF01
Hardwired connection inside a junction box
Bring the heating cable through the entry fittings into a suitable junction box. Inside the box, use wire nuts to join the prepared cable leads to the supply conductors.
Choose it for: a hardwired supply connection in a junction box.
Provide separately: the junction box, supply wiring and appropriate electrical protection.

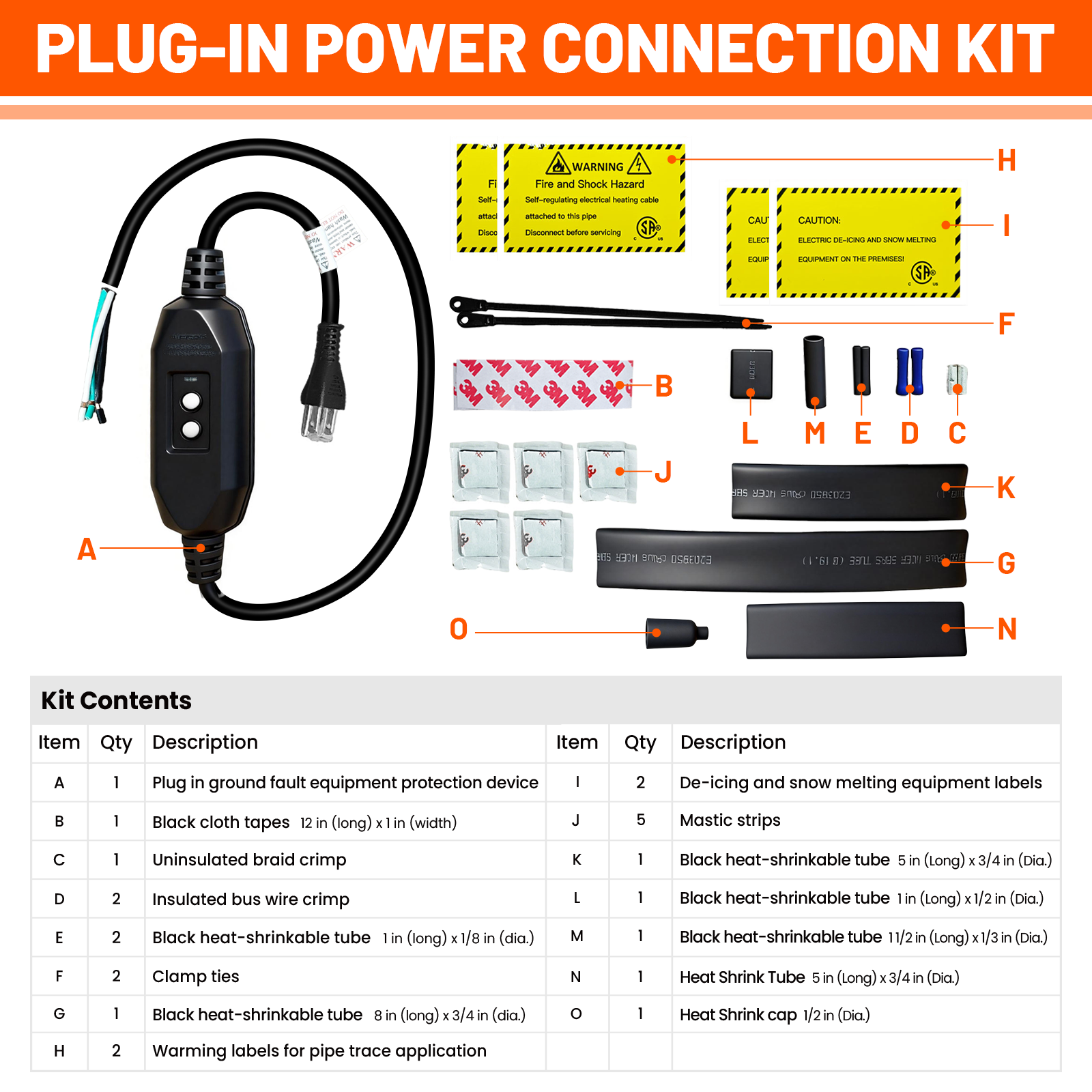

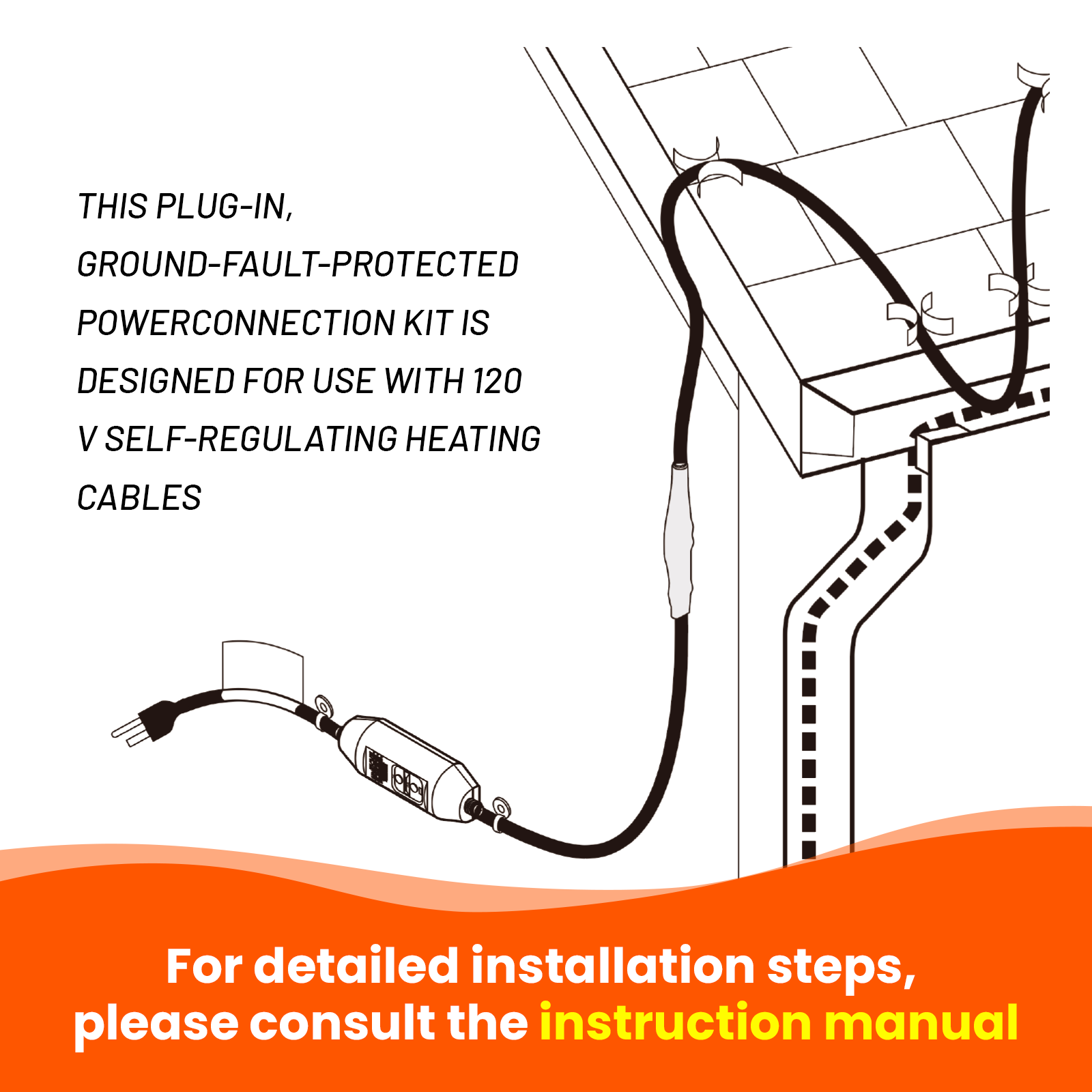

KYSF03
Connection to the included 120V GFCI cord

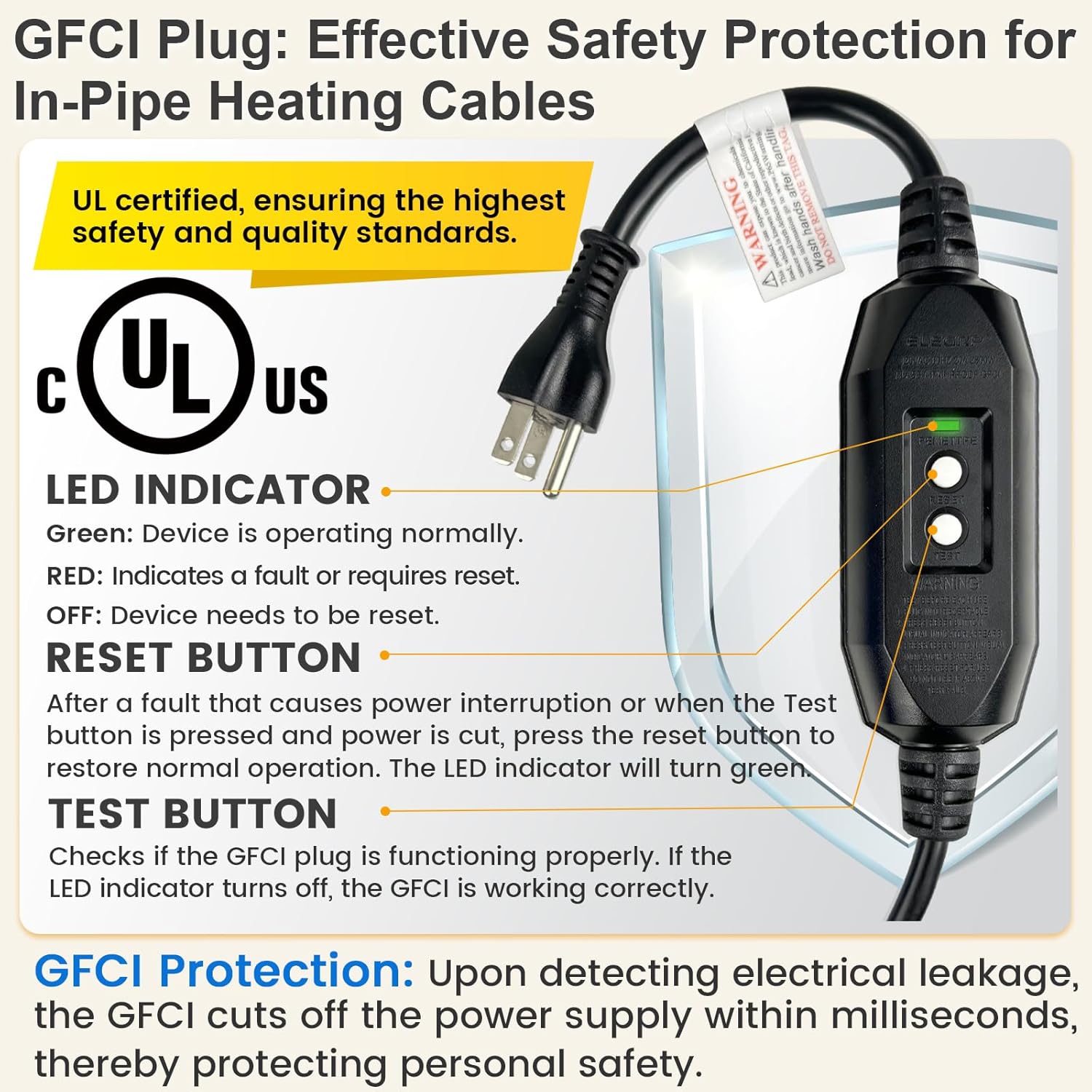

Connect the heating cable to the supplied power cord using the crimp and heat-shrink components. The cord includes a GFCI plug for a compatible 120V setup.
Choose it for: a 120V plug-in installation with the cord and protective plug included.
Included: 120V power cord with GFCI plug.
KYSF03-C
Connection to your own power cord
Connect the heating cable to a suitable customer-supplied power cord using the crimp and heat-shrink components. This is the connection-kit option without the KYSF03 cord and GFCI plug.
Choose it for: an installation using your own suitable power cord.
Provide separately: power cord, plug if used, and appropriate external ground-fault protection.
KYSF01, KYSF03 and KYSF03-C each include one KYSF02 End Seal Kit. Match the cable supply requirements, cord, protection and circuit load to your installation; the supplied KYSF03 GFCI cord is for 120V.
END SEAL
Two ways to seal an unused heating cable tail
KYSF02 and ES-PRO do the same job: terminate and protect one unused cable tail. Choose between heat-shrink assembly and a screw-assembled housing.

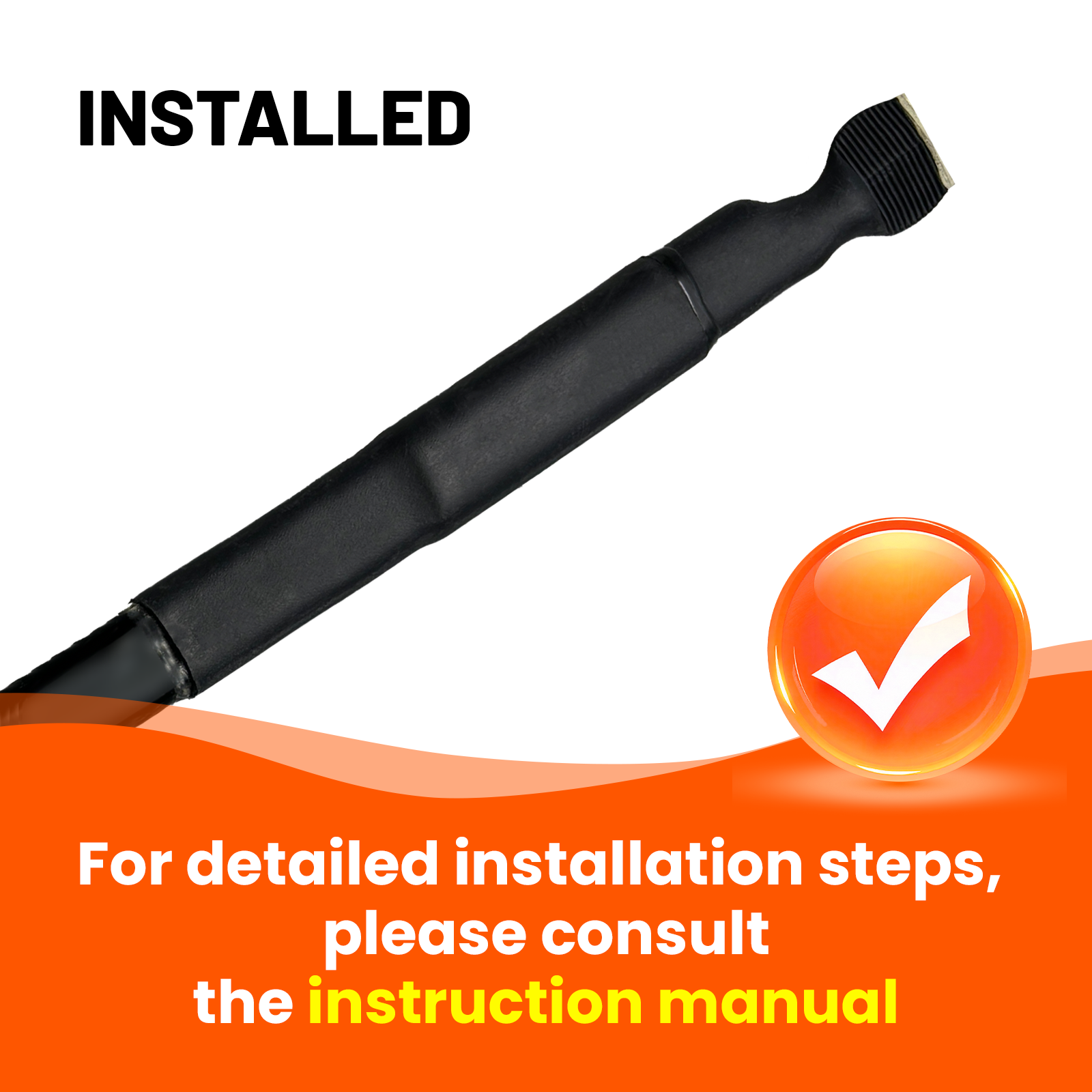

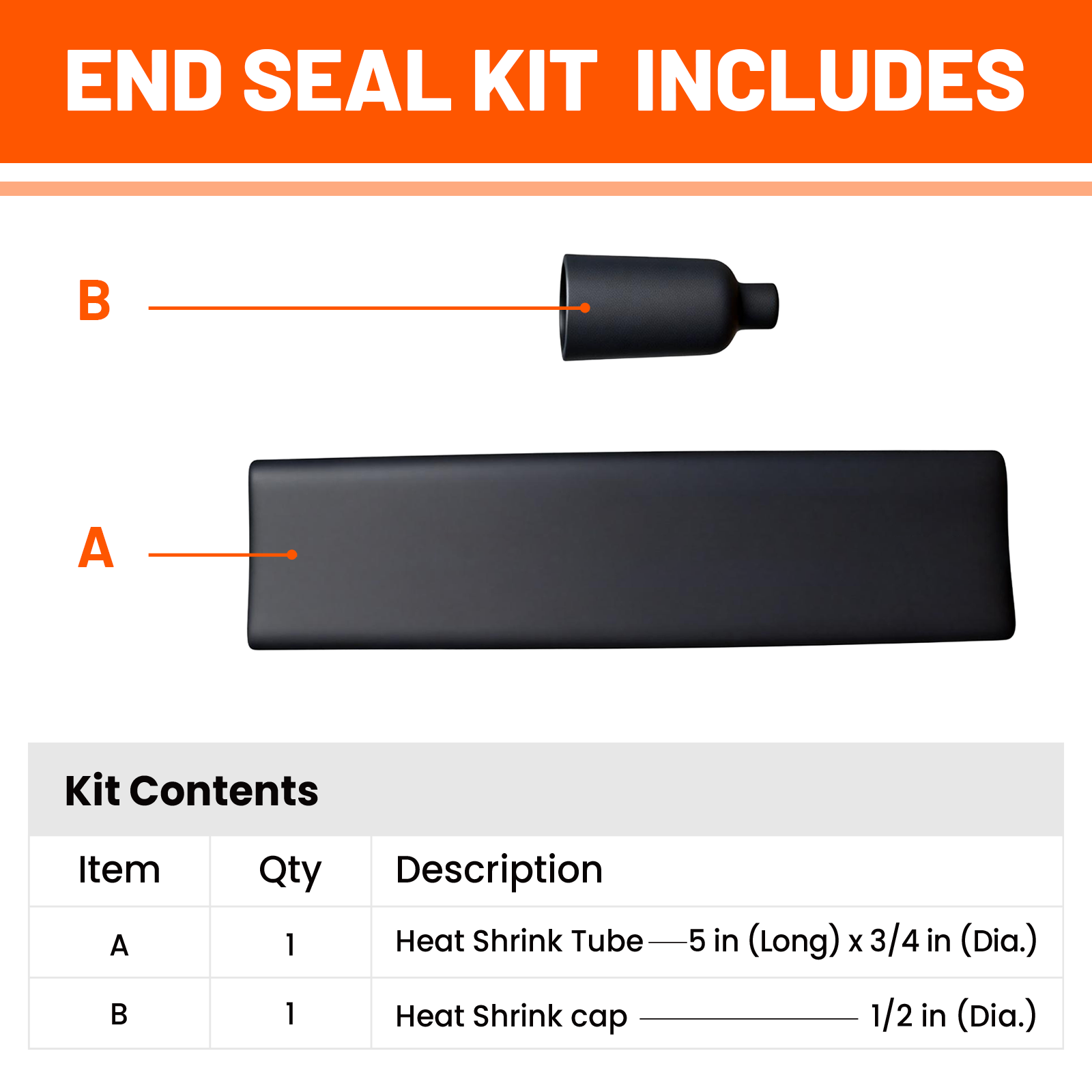

KYSF02
Heat-shrink end seal
Seal one unused heating cable tail with the heat-shrink tube and end-cap components. A heat gun is required.
Choose it for: an additional or replacement heat-shrink end seal, or to finish a layout with more unused tails than your other kits cover.
ES-PRO
Screw-assembled end seal
Prepare the cable and secure it in the end-seal housing using a screwdriver. No heat gun is required. The low-profile housing helps it fit under insulation where the installation permits.
Choose it for: a cable-tail termination when you prefer a housing assembled with screws.
KYSF01, KYSF03, KYSF03-C and KYSF04 each already include one KYSF02 kit. Count every unused tail in your finished layout before ordering extra end seals. End seals do not supply power or join cable sections.
SPLICE & TEE
Join two cable sections or add a branch
Both KYSF04 and TS-PRO support a two-cable splice or a three-cable branch. Their assembly methods and cable-entry directions differ.

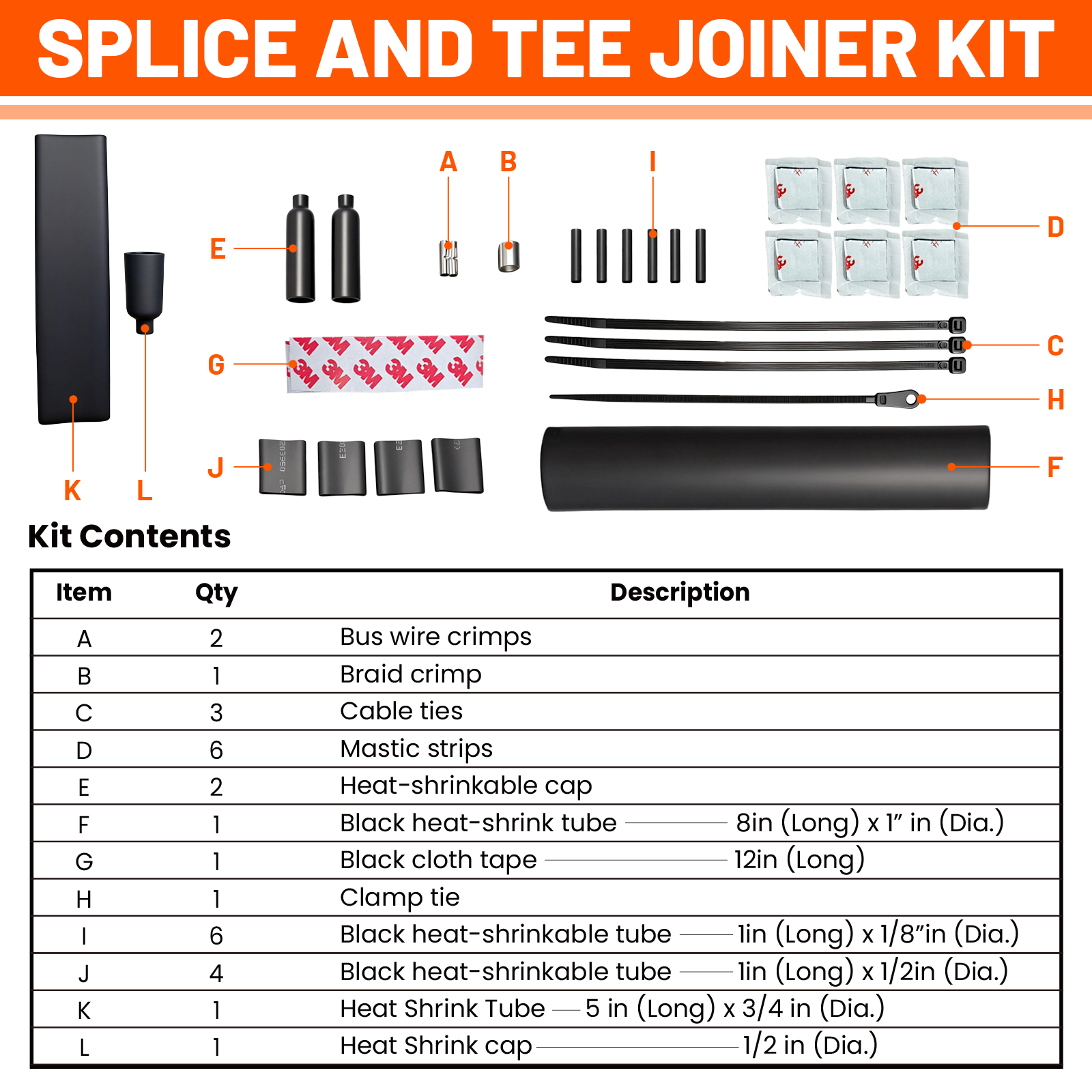

KYSF04
Crimp and heat-shrink splice / tee
Align two or three heating cable ends side by side. All ends enter the connection from the same side; complete the crimp connections and heat-shrink sealing according to the instructions.
Choose it for: extending or branching a cable circuit using a heat-shrink connection.
Included: one KYSF02 End Seal Kit.
TS-PRO
Screw-assembled inline splice / tee
For a two-cable inline splice, bring the cables through opposite ports. For a three-cable tee, use all three ports. Assemble the housing with a screwdriver; no heat gun is required.
Choose it for: extending or branching a cable circuit using a screw-assembled housing.
Included: a solid grommet to seal the unused port in a two-cable splice.
Splice and tee kits join cable sections; a separate power connection is still needed. Check total circuit length and electrical load when extending or branching a heating cable system.
THE KIT RANGE
Seven kits, individually packaged
The seven kit options shown together. Each model is sold separately; select the kit for your connection or termination.
Applications
Roof, gutter, downspout and pipe heat tracing
Choose the kit by its connection function and assembly method. Roof and pipe layouts can both need a power connection, end seals and cable joints. Match each kit to the cable and installation requirements.
Roof de-icingComplete compatible cable circuits along roof edges and valleys; choose splice or tee connections where the approved layout needs extensions or branches.
Gutter & downspout protectionConnect and terminate cable runs through gutters and downspouts, with connections positioned and sealed as directed in the cable and kit instructions.
External pipe freeze protectionComplete heat trace systems installed on the outside of pipes, including pipe branches and extensions where the layout requires them.
Plan the complete circuit
Power entryKYSF01 / KYSF03 / KYSF03-C
+
Unused cable tailsKYSF02 / ES-PRO
+
Joints, if neededKYSF04 / TS-PRO
For residential, commercial or industrial projects, select the correct kit for each connection in the layout. Permanent wiring, complex branches and installations requiring inspection should be handled by a qualified installer.
Use with
Compatible self-regulating heating cable, correctly matched supply and protection, and a layout that follows the cable and kit instructions.
Do not use with
Damaged or incompatible cable, exposed cut ends, unapproved field connections, submerged electrical joints or unverified system configurations.
Specifications
Compare all seven connection and termination kits
CSA Certified — Canada & USA
For specified self-regulating heating cable systems used in pipe freeze protection and roof & gutter de-icing.
Screw-assembled housing; opposite ports for a splice, three ports for a tee.
Separate power connection required.
Solid grommet for the unused port
Each included KYSF02 kit seals one unused heating cable tail. The TS-PRO solid grommet seals an unused housing port; it is not an end seal for a separate cable tail.
Compatibility with other self-regulating heating cables
YeloDeer connection and termination kits can also be used with other flat self-regulating heating cables when the cable dimensions, construction and connection requirements match the selected kit.
Using heating cable from Raychem, Thermon, EasyHeat, Nelson or another supplier? Start with the specific cable model and the connection you need: a power connection, end seal, splice or tee. Brand alone does not determine fit.
KYSF SERIES
Heat-shrink tubing conforms to the cable
The tubing contracts around the cable during installation, accommodating differences in cable dimensions within its designed shrink range. An exact dimensional match to YeloDeer cable is not required.
ES-PRO & TS-PRO
Flexible rubber seals accommodate variations
The rubber sealing components compress around the cable as the fittings are tightened. This accommodates differences in cable width and thickness within the components’ designed sealing range.
01 · Cable size
Check both width and thickness against the selected kit’s fit requirements.
02 · Cable construction
Check the outer jacket, grounding braid, conductor size and required cable preparation.
03 · Connection function
Choose a power connection, end seal, splice or tee, then select the assembly method.
Need help selecting a kit? Send us your cable model, width and thickness, and a clear photo of an existing cut end or its datasheet. Contact product support →
Electrical requirements
Match the cable supply requirements, voltage and connection method to the selected kit. Check circuit length and total load, including branch sections. KYSF03 includes a 120V GFCI cord; for KYSF01 and KYSF03-C, use suitable supply components and the electrical protection required for the installation.
Housing and certification — ES-PRO / TS-PRO
Heat-tracing system standards: CSA C22.2 No. 130-16, ANSI/IEEE 515-2017 (industrial applications), and ANSI/IEEE 515.1-2012 (commercial applications).
ES-PRO and TS-PRO have the Type 4X / NEMA 4X housing rating and CSA hazardous-location certification described in their product specifications. For a rated or hazardous-location installation, confirm the exact cable-and-kit combination, area classification and installation instructions. These model-specific ratings do not describe all seven kits.
Certification and code compliance depend on the exact cable, kit, supply, installation method and local requirements. Use the rating and instructions for the selected model.
Installation
Choose the assembly method, then follow the kit instructions
Heat-shrink assembly
KYSF connection kits use cable preparation and heat-shrink sealing as specified in their manuals. KYSF03, KYSF03-C and KYSF04 also use crimp connections. Prepare the correct tools before starting.
Screwdriver assembly
ES-PRO and TS-PRO use screw-assembled housings without a heat gun. Cable cutting, stripping and preparation are still required; follow the instructions for the selected configuration.
Installed examples: ES-PRO end seal, TS-PRO inline splice and TS-PRO tee. Heating cable is shown to explain the connection and is sold separately.
Prepare, seal and test
Plan with the power disconnected. Check the cable, supply, kit selection, circuit length, branch locations and number of unused tails.
Prepare the cable as directed. Cut and strip in a dry, clean area. Protect the jacket, braid and internal layers from damage.
Complete every connection. Follow the power, end-seal or splice instructions. Seal every unused tail; use the supplied solid grommet in an unused TS-PRO port.
Check before energizing. Inspect the joints, sealing, exposed conductors and electrical protection, then carry out the tests required by the cable and kit instructions.
For hardwired, complex, inspected or hazardous-location work, use a qualified installer and follow the applicable electrical requirements. Do not energize a cable with unfinished joints or exposed cut ends.
ES-PRO / TS-PRO installation videos
TS-PRO installationES-PRO installation
FAQ
Heating cable connection kit questions
Which kits do I need for a complete heating cable installation?
Start with one suitable power connection: KYSF01 for a junction box, KYSF03 for the included 120V GFCI cord, or KYSF03-C for your own cord. Seal each unused cable tail with KYSF02 or ES-PRO. Add KYSF04 or TS-PRO only where the layout needs a splice or branch. Check whether the KYSF02 kit included with your power kit already covers the tail end.
What is the difference between KYSF01, KYSF03 and KYSF03-C?
KYSF01 brings the heating cable into a junction box and uses wire nuts to connect it to supply conductors inside that box. KYSF03 connects to the included 120V power cord with GFCI plug. KYSF03-C connects to your own suitable power cord; the cord, plug and external ground-fault protection are not supplied. Each includes one KYSF02 End Seal Kit.
Should I choose KYSF02 or ES-PRO for an end seal?
Both seal one unused heating cable tail. KYSF02 uses heat-shrink components and requires a heat gun. ES-PRO uses a screw-assembled housing without a heat gun. Choose the assembly method suited to your installation and confirm cable compatibility. Neither kit supplies power or joins cable sections.
How do KYSF04 and TS-PRO differ for a splice or tee?
Both can join two cable sections or create a three-cable branch. KYSF04 uses crimp and heat-shrink assembly, with every cable end entering from the same side. TS-PRO uses a screw-assembled housing: opposite ports for a two-cable inline splice, or three ports for a tee. No heat gun is required for TS-PRO.
Is the TS-PRO solid grommet included?
Yes. Every TS-PRO kit includes a solid grommet to seal the unused port when making a two-cable inline splice. For a three-cable tee, all three ports are used. A separate unused cable tail still needs an appropriate end seal.
Which kits include a KYSF02 end seal?
KYSF01, KYSF03, KYSF03-C and KYSF04 each include one KYSF02 kit. Order additional end seals if your finished layout has more unused cable tails than the included kits cover, or if you need replacements.
Can I use these kits for roof, gutter and pipe applications?
Yes, with compatible self-regulating heating cable and a suitable system configuration. Typical uses include roof de-icing, gutters, downspouts and external pipe freeze protection. Choose by the connection you need, not just by the application pictured. Follow the cable and kit instructions for placement, sealing and electrical protection.
Can these kits be used with other self-regulating heating cables?
Yes, when the cable dimensions, construction and connection requirements match the selected kit. You are not limited to YeloDeer cable. Check the specific cable model, width, thickness, jacket, grounding braid and conductor size. See cable compatibility and selection details.
Does my heating cable need to be exactly the same size?
No. KYSF heat-shrink tubing contracts around the cable, while ES-PRO and TS-PRO use flexible rubber sealing components. Both methods accommodate dimensional differences within their designed fit ranges. The cable must still fit and seal correctly; matching the width alone is not enough.
What if I do not know my heating cable brand or model?
Send us a photo of any jacket markings, the cable’s width and thickness, and a clear photo of an existing cut end or the cable datasheet. Tell us whether you need a power connection, end seal, splice or tee so we can help check the appropriate kit.
Does “no heat gun required” mean no cable preparation?
No. ES-PRO and TS-PRO still require cable preparation and correct assembly. The difference is the screw-assembled housing, which does not need heat-shrink processing. Follow the instructions for stripping, positioning, sealing and testing.
What should I check for an outdoor or professional installation?
Confirm cable compatibility, supply and electrical protection, circuit length and load, connection placement, and the number of end seals and joints. For hardwired, complex, inspected or hazardous-location installations, use qualified help and confirm the selected model’s ratings. These accessories do not generate heat themselves; heating cable is sold separately.
