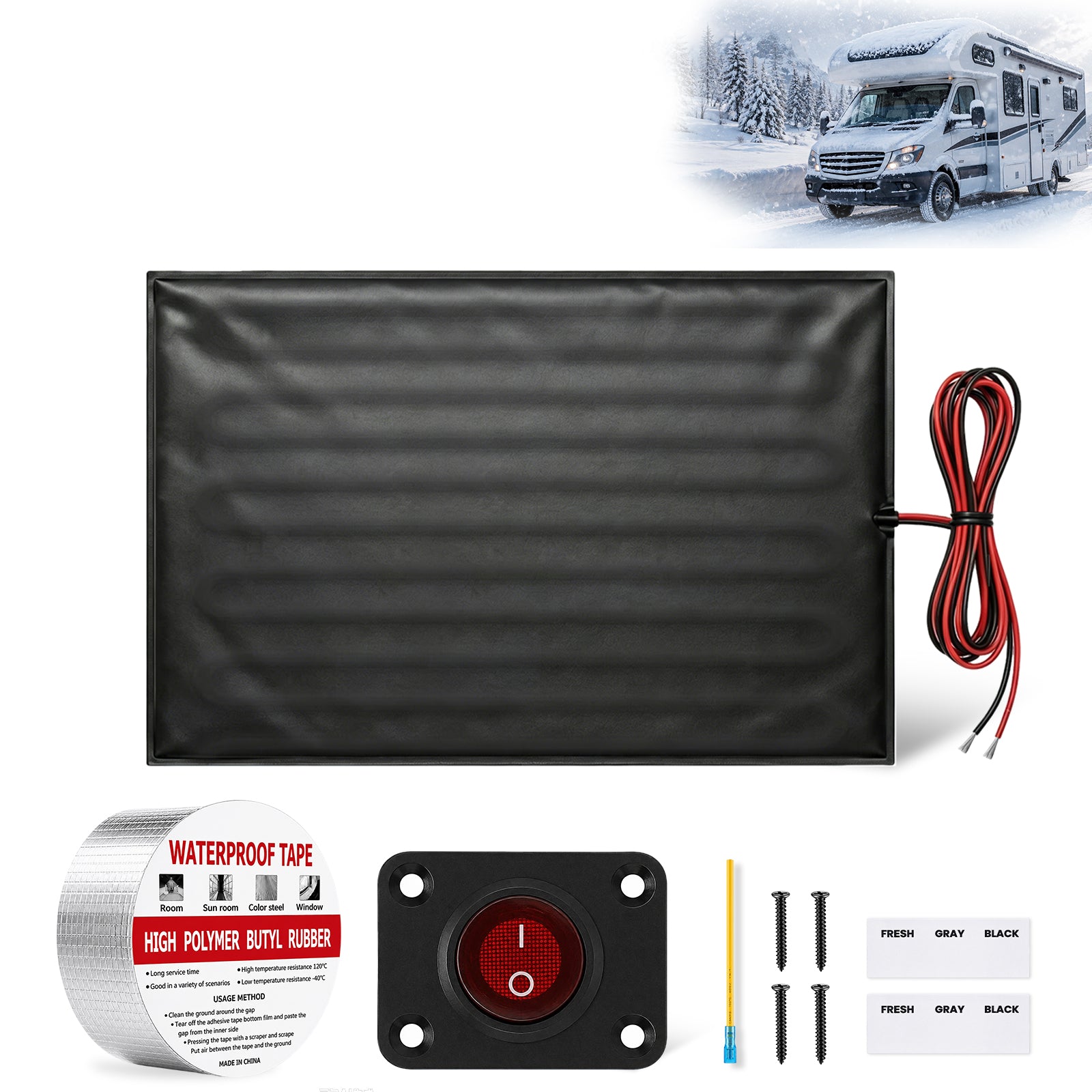

12V RV Tank Heater Pad with Switch for Cold-Weather Freeze Protection
The YeloDeer 12V RV Tank Heater Pad is designed to help protect RV fresh water, gray water, and black water tanks from freezing during cold-weather camping, travel, and storage.

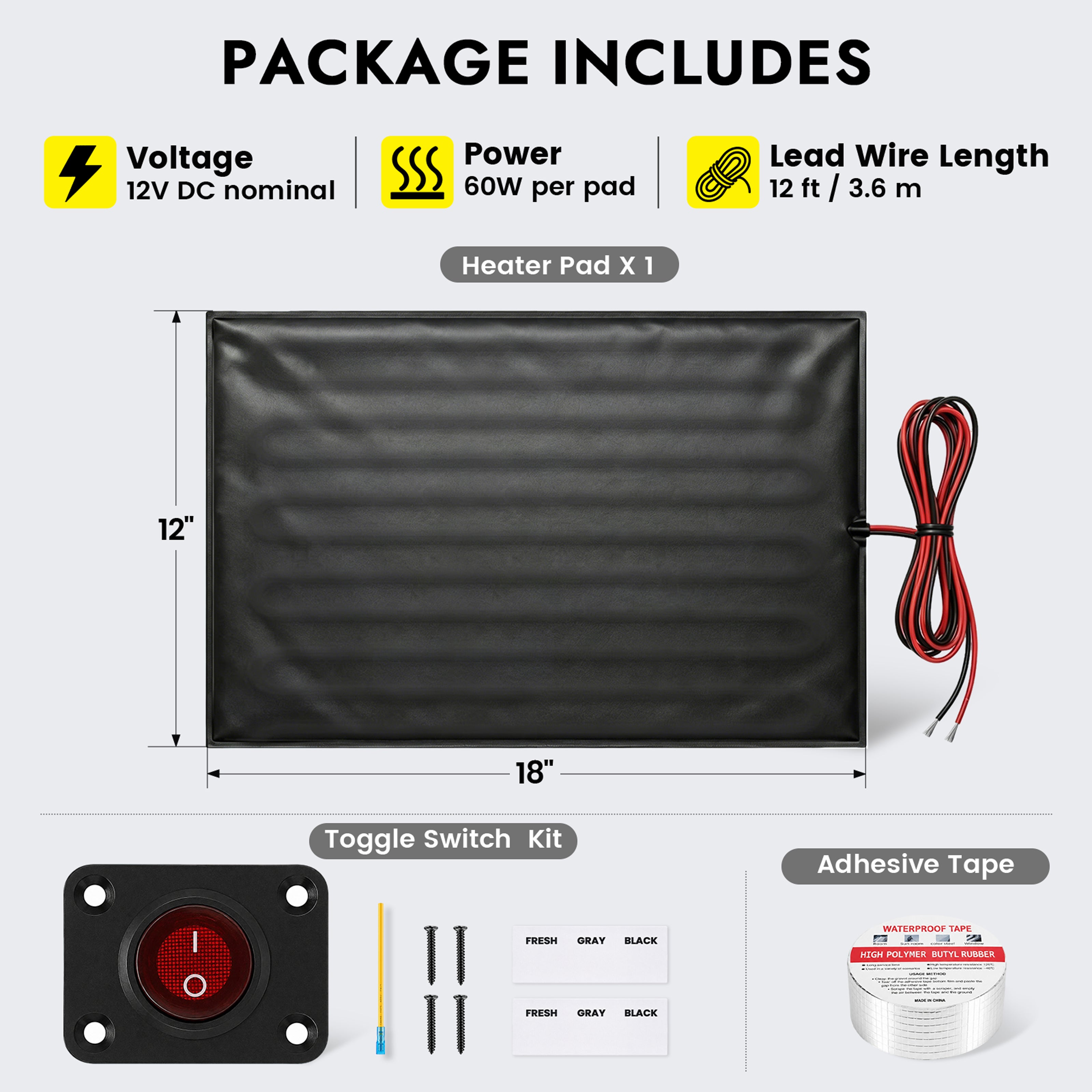

Each 12 x 18 in heater pad connects to a standard RV 12V DC electrical system and provides 60W of steady supplemental heat to the tank surface. The included switch control lets you turn each heater pad on only when freeze protection is needed.
Available in 1-pad, 2-pad, and 3-pad configurations, this system is suitable for single-tank or multi-tank RV setups. Each pad in a multi-pad kit must be connected to its own dedicated switch channel.
Quick Fit Snapshot
RV Tank Compatibility Designed for compatible fresh water, gray water, and black water tanks.
12V DC Power 60W per pad with approximately 5A current draw per pad at 12V DC.

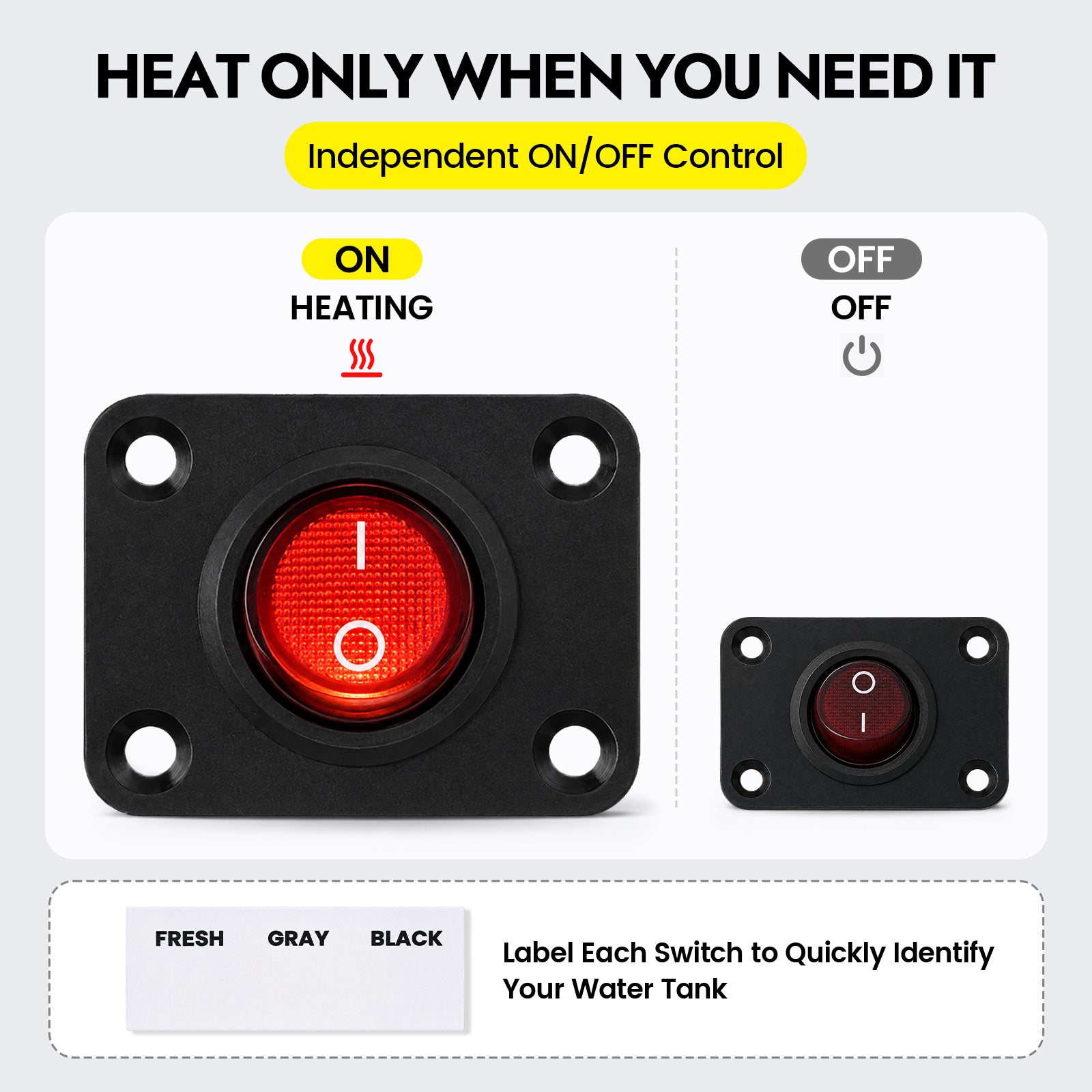

Switch Controlled Turn the corresponding heater pad on when freeze protection is needed and off when it is no longer required.
12 x 18 in Pad Confirm that the tank has a suitable flat mounting area before ordering.
Key Benefits
Helps Reduce Tank Freezing Provides supplemental heat to the tank surface to help maintain fluid flow and reduce the risk of freeze damage in cold weather.
Works with Standard RV 12V Systems Designed for standard RV 12V DC electrical systems used in campers, travel trailers, fifth wheels, and similar RV applications.
Built-In Overheat Protection Each heater pad includes an internal overheat protection device to help reduce overheating risk under abnormal conditions.
Flexible 1-, 2-, or 3-Pad Setup Choose the number of independently controlled heater pads that best matches your RV tank configuration.
Suitable For
Winter RV Camping
Cold Nights Winter Campsites Cold-Weather RVing
Cold-Weather Travel
Travel Trailers Campers Fifth Wheels
RV Water & Waste Tanks
Fresh Water Tanks Gray Water Tanks Black Water Tanks
DIY & Professional Installation
RV Owners DIY Upgrades RV Technicians
Choose Your Pack Size
1 Pad
Includes one independently switched 12 x 18 in heater pad for a compatible RV tank application.
1 Heater Pad 1 Switch Channel 60W Total Pad Power

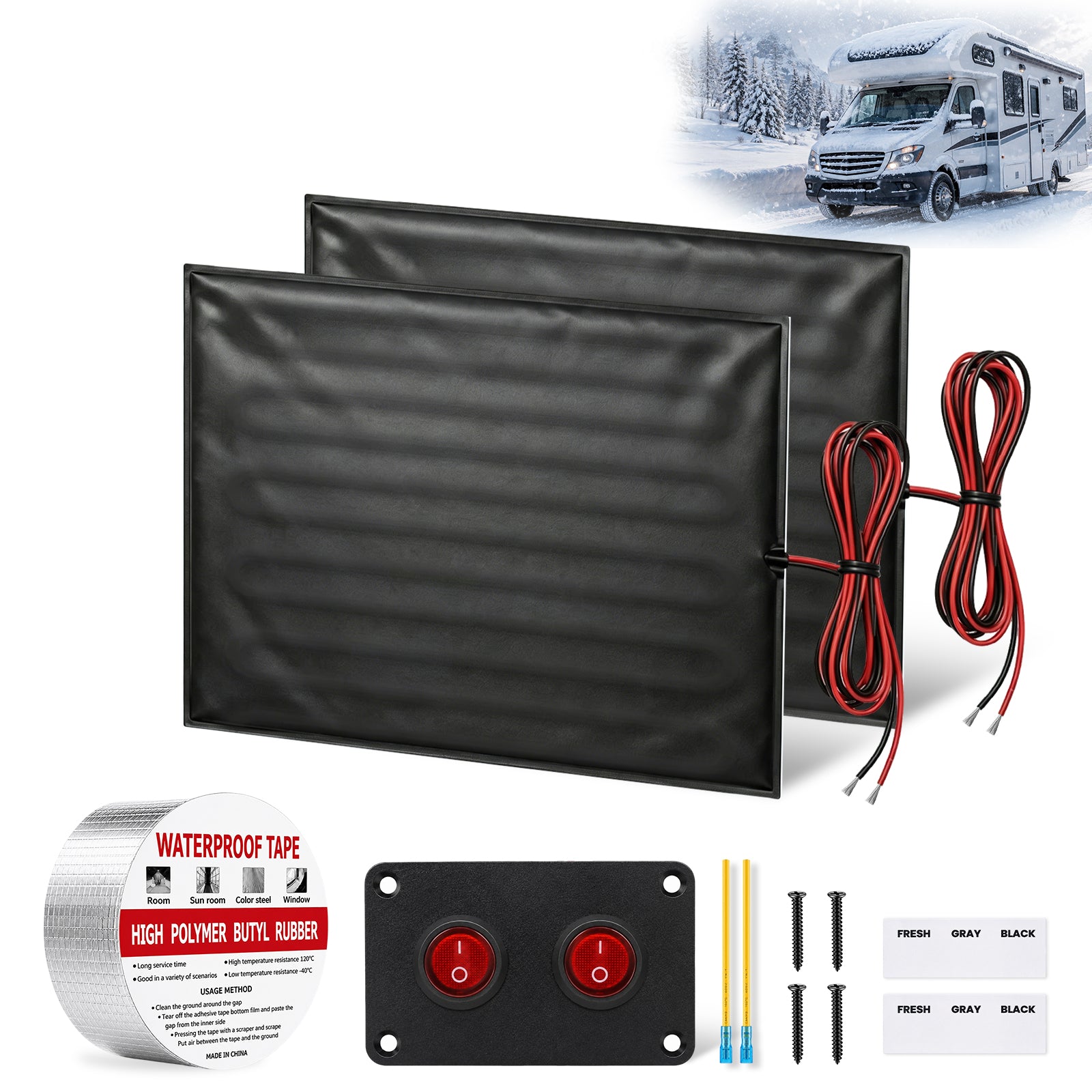

2 Pads
Includes two independently switched heater pads for compatible multi-pad RV tank applications. Each pad must use its own dedicated switch channel.
2 Heater Pads 2 Switch Channels 60W Per Pad

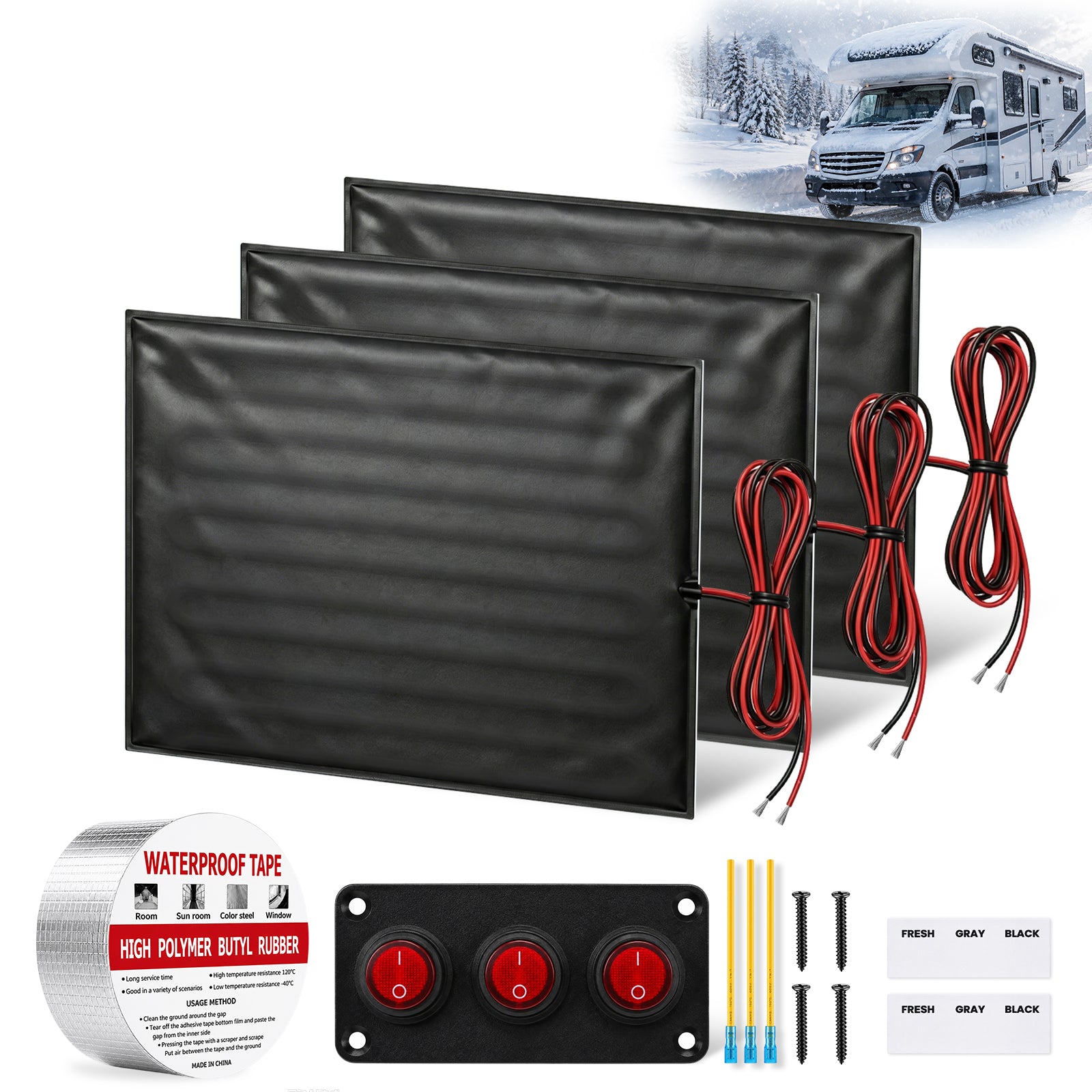

3 Pads
Includes three independently switched heater pads for compatible multi-tank RV setups, including fresh, gray, and black tank applications.
3 Heater Pads 3 Switch Channels 60W Per Pad
12V or 120V — Which One Should I Choose?
Choose 12V DC
Choose this version if you want the heater pads connected to your RV's standard 12V DC electrical system. Each pad requires its own dedicated switch channel and appropriate circuit protection.
RV 12V DC System Switch Controlled Wiring Required
Prefer 120V Plug-In Power?
If you have access to a properly grounded 120V AC outlet and prefer a plug-in power connection, see the 120V RV Tank Heater Pad
120V AC Power Plug-In Setup No 12V Wiring
Important Before Ordering
The tank must contain liquid while the heater pad is operating. Do not operate the heater pad on an empty tank.
This product is designed for standard RV 12V DC electrical systems only. Do not connect it directly to 120V AC power.
Each pad measures 12 x 18 in and must be installed flat against a suitable tank surface. Do not cut, trim, fold, puncture, stretch, or resize the heater pad.
The heater pad protects the tank area where it is installed. Exposed pipes, valves, elbows, fittings, and other plumbing components may require separate freeze protection or insulation.
A properly rated fuse or circuit protection device is required. A fuse is not included with the product.
Your RV uses a standard 12V DC electrical system Your tank has a suitable flat 12 x 18 in mounting area The tank will contain liquid during operation You can provide approximately 5A per heater pad at 12V DC Each pad can use its own switch channel Appropriate circuit protection will be installed The tank surface can be cleaned and dried before installation Separate protection is available for exposed plumbing when needed
Recommended Applications
This RV tank heater pad is intended for supplemental freeze protection on compatible RV holding tanks during cold-weather use.
Fresh Water Tank Protection
Helps reduce freezing risk for compatible RV fresh water tanks during winter camping and travel.
Gray Water Tank Protection
Provides supplemental tank-surface heat for compatible gray water tanks exposed to freezing conditions.
Black Water Tank Protection
Suitable for compatible RV black water holding tanks when a flat installation surface is available.
Multi-Tank RV Systems
2-pad and 3-pad versions provide independently switched pads for compatible multi-tank installations.
Typical Users
RV owners who camp below freezing Travel trailer owners preparing for winter trips Fifth-wheel and camper owners DIY RV owners upgrading cold-weather protection RV service technicians and professional installers Owners who need supplemental protection for exposed holding tanks
Not Intended For
- 120V AC electrical systems
- Operating on an empty tank
- Heating drinking water for comfort or domestic hot-water use
- Replacing complete RV winterization
- Protecting exposed pipes, valves, elbows, or fittings by itself
- Installations that require cutting, folding, or resizing the heater pad
- Tank surfaces without a suitable flat mounting area
Installation Overview
Install the heater pad on the bottom or lower side of a compatible RV tank, preferably on a flat area near the lowest point and close to the drain or outlet area.
- Disconnect the RV 12V power source before installation or wiring.
- Clean the tank surface thoroughly to remove dirt, oil, moisture, and debris.
- Make sure the surface is fully dry, smooth, and free from sharp protrusions.
- For better adhesion, install when the tank surface is at room temperature or at least 50°F / 10°C.
- Peel the protective backing from the adhesive side of the heater pad.
- Position the heater pad flat against the bottom or lower side of the tank.
- Press firmly and evenly over the entire pad to ensure full contact.
- Remove trapped air bubbles during installation.

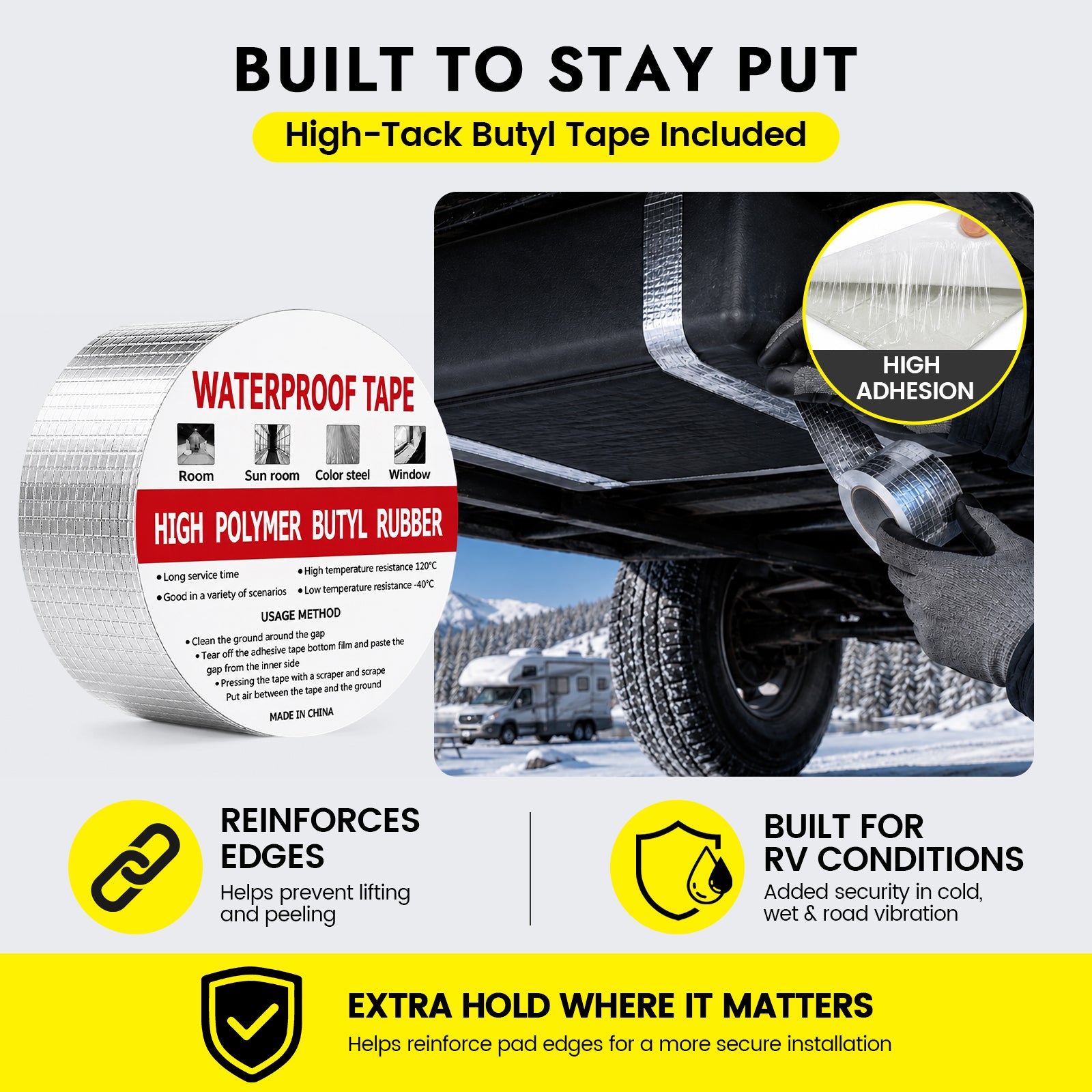

- Apply suitable adhesive tape around the pad edges when needed to improve long-term adhesion and reduce edge lifting.
- Secure the power cable away from sharp edges, moving parts, hot surfaces, and road-impact areas.
- Complete the 12V wiring and install appropriate circuit protection.
- Turn on each switch individually and confirm that it controls the correct heater pad.
Critical Wiring Information
Red Switch Wire Connect to RV 12V positive (+) input.
Yellow Switch Wire Switched positive output. Connect to the red wire of the corresponding heater pad.
Black Switch Wire Connect to RV 12V negative (-) or common ground.
Heater Pad Red Wire Connect to the corresponding yellow switched-output wire.
Heater Pad Black Wire Connect to RV 12V negative (-) or common ground.
Multiple Pads Each heater pad must be connected to its own dedicated switch channel.
Do not connect multiple heater pads to a single 6A switch channel.
The switch black wire and heater-pad black wire must both return to RV 12V negative (-) / common ground.
Use only a 12V DC power source. Never connect this product directly to 120V AC power.
If you are not familiar with RV electrical wiring, installation by a qualified RV technician is recommended.
Installation Mistakes to Avoid
Do not install over dirt, oil, or moisture Do not install over sharp protrusions Do not stretch the heater pad Do not fold or crease the heater pad Do not cut or trim the heater pad Do not puncture the heater pad Do not route wires against sharp edges Do not connect multiple pads to one switch channel
Before You Order
Confirm your RV uses a standard 12V DC system Measure for a flat 12 x 18 in mounting area Choose 1, 2, or 3 pads for your setup Plan one dedicated switch channel for each pad Allow approximately 5A current draw per pad at 12V DC Plan appropriate fuse or circuit protection Identify a suitable tank-bottom or lower-side mounting location Plan separate freeze protection for exposed plumbing when necessary
Before Turning the Heater On
Confirm the tank contains liquid Check that the heater pad remains flat against the tank Inspect pad edges for lifting Inspect all wires and connectors Confirm wires are protected from sharp edges and moving parts Confirm the correct switch controls the correct pad Check that circuit protection is installed Turn the heater off when freeze protection is no longer needed
Maintenance
Inspect the heater pad, wires, switches, connectors, and adhesive edges regularly. If an edge begins to lift, clean and dry the area before securing it with suitable adhesive tape.
Do not operate the product if the heater pad, wiring, switch, or connectors are damaged.
Storage Before Installation
Store in a cool, dry location Avoid direct sunlight Do not place heavy pressure on the heater pad Do not fold the heater pad Keep away from sharp objects Keep the adhesive surface clean Leave the protective backing in place until installation
Cold-Weather RV Reminder
This heater pad is intended as supplemental RV tank freeze protection. It does not replace proper winterization or separate protection for exposed pipes, valves, elbows, fittings, and other vulnerable plumbing components.
