120V Plug-In RV Tank Heater Pad for Cold-Weather Freeze Protection
The YeloDeer 120V RV Tank Heater Pad is designed to help protect RV fresh water, gray water, and black water tanks from freezing during cold-weather camping, travel, and storage.
Each heater pad connects directly to a properly grounded 120V AC outlet and provides 58W of steady supplemental heat to the tank surface. Heat transfers through the tank wall to help maintain fluid flow and reduce the risk of freezing damage.
Available in a standard 2-pad configuration and a mixed-size 3-pad configuration, this plug-in system is designed for RV owners who have access to 120V AC power and prefer a simpler power connection without wiring the heater pads into the RV's 12V DC electrical system.
Quick Fit Snapshot
RV Tank Compatibility
Designed for compatible fresh water, gray water, and black water tanks.
120V AC Power
Plug each heater pad directly into a properly grounded 120V AC outlet.
58W Per Pad
Provides steady supplemental heat to help reduce tank freezing risk in cold weather.
12 ft Power Cord
Provides additional reach when routing power from the tank area to a suitable outlet.
Key Benefits
Helps Reduce Tank Freezing
Provides supplemental heat to the tank surface to help maintain fluid flow and reduce the risk of freeze damage.
Simple 120V Plug-In Power
Connects to a properly grounded 120V AC outlet without wiring the heater pad directly into the RV's 12V DC electrical system.
Built-In Overheat Protection
Includes an internal overheat protection device to help reduce overheating risk under abnormal conditions.
Multiple Pad Configurations
Choose between a standard 2-pad setup or a mixed-size 3-pad configuration for compatible multi-tank RV installations.
Suitable For
Winter RV Camping
Cold Nights
Winter Campsites
Cold-Weather RVing
RV Park & Shore-Power Use
120V AC Outlets
Campgrounds
Parked RVs
RV Water & Waste Tanks
Fresh Water Tanks
Gray Water Tanks
Black Water Tanks
DIY RV Freeze Protection
RV Owners
Travel Trailers
Fifth Wheels

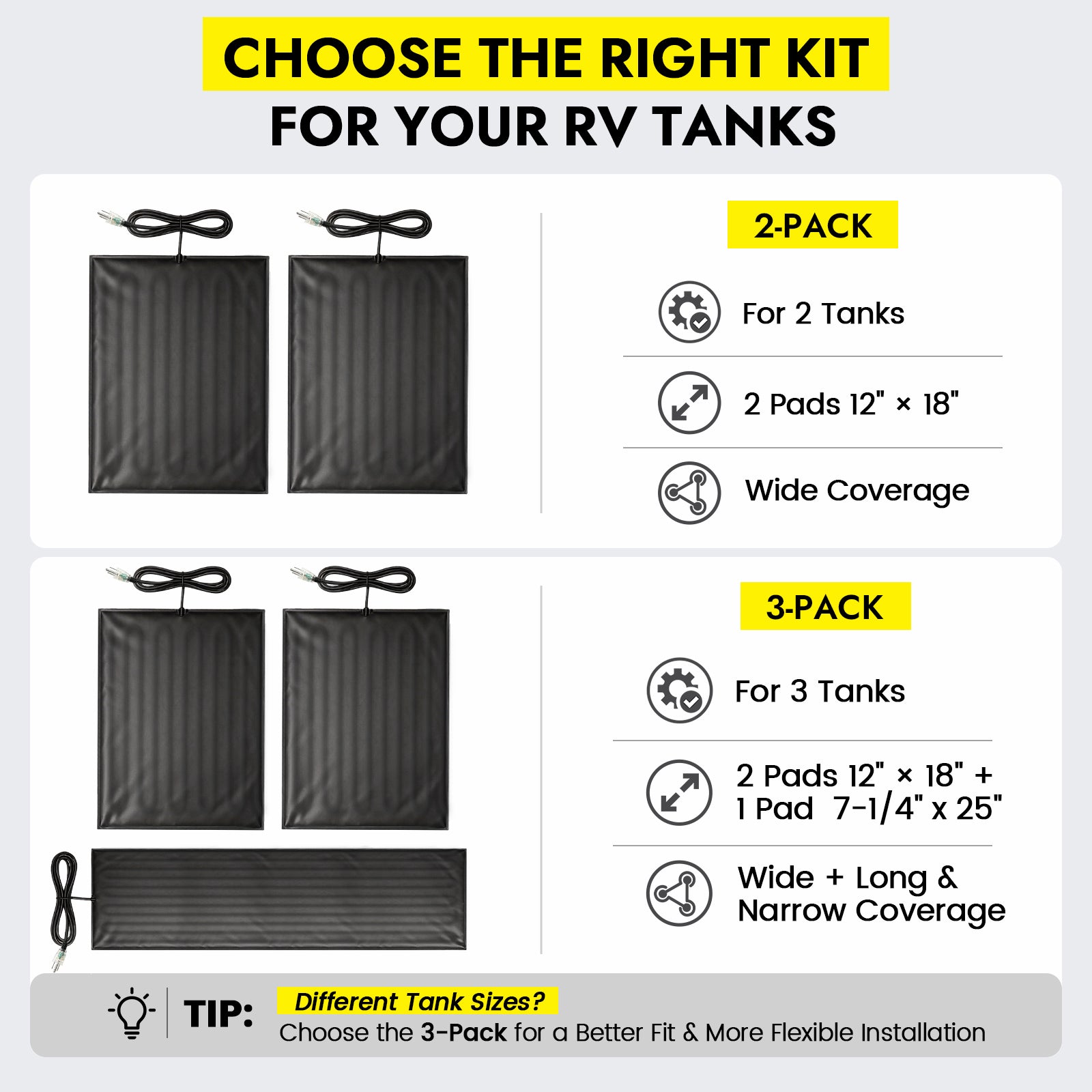

Choose Your Configuration

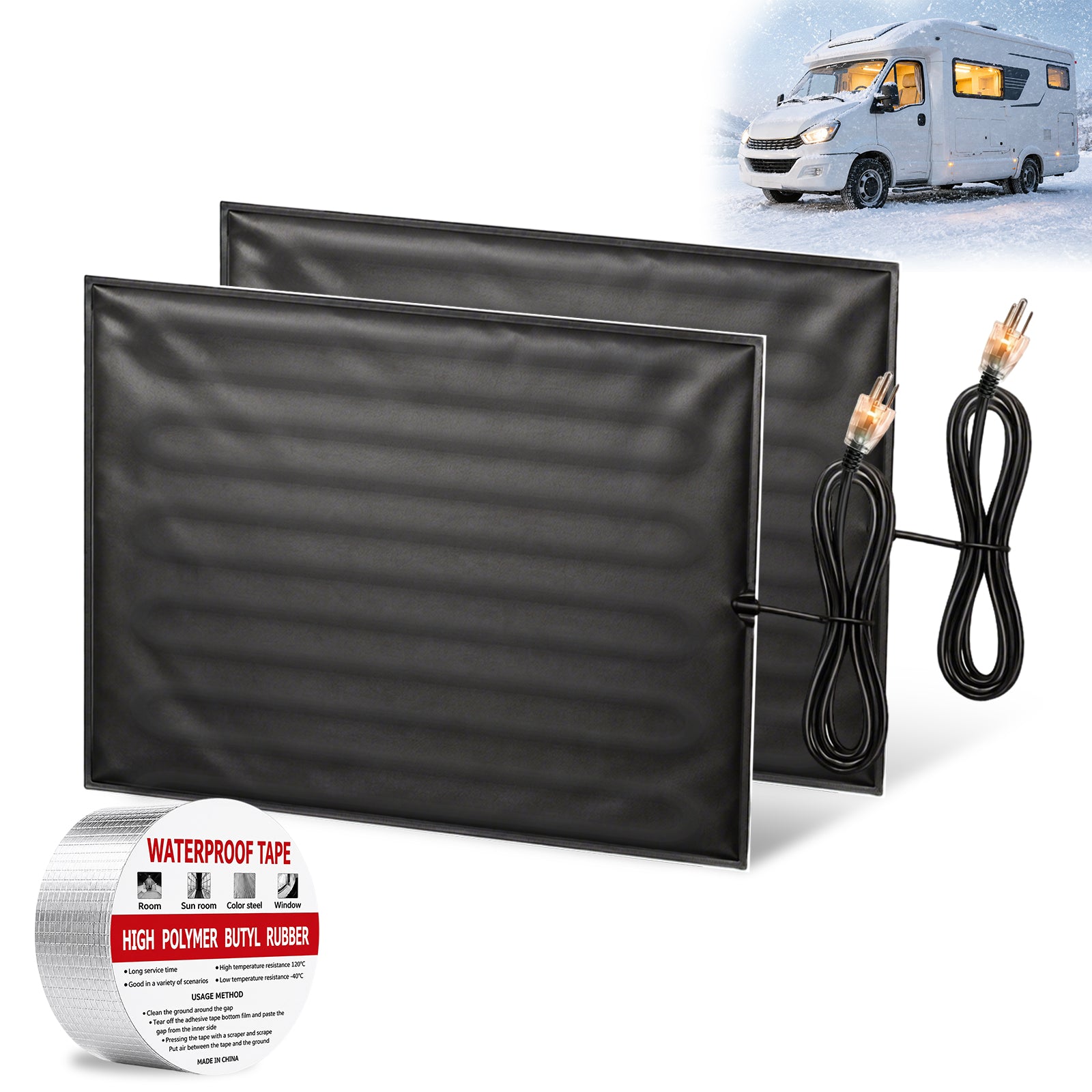

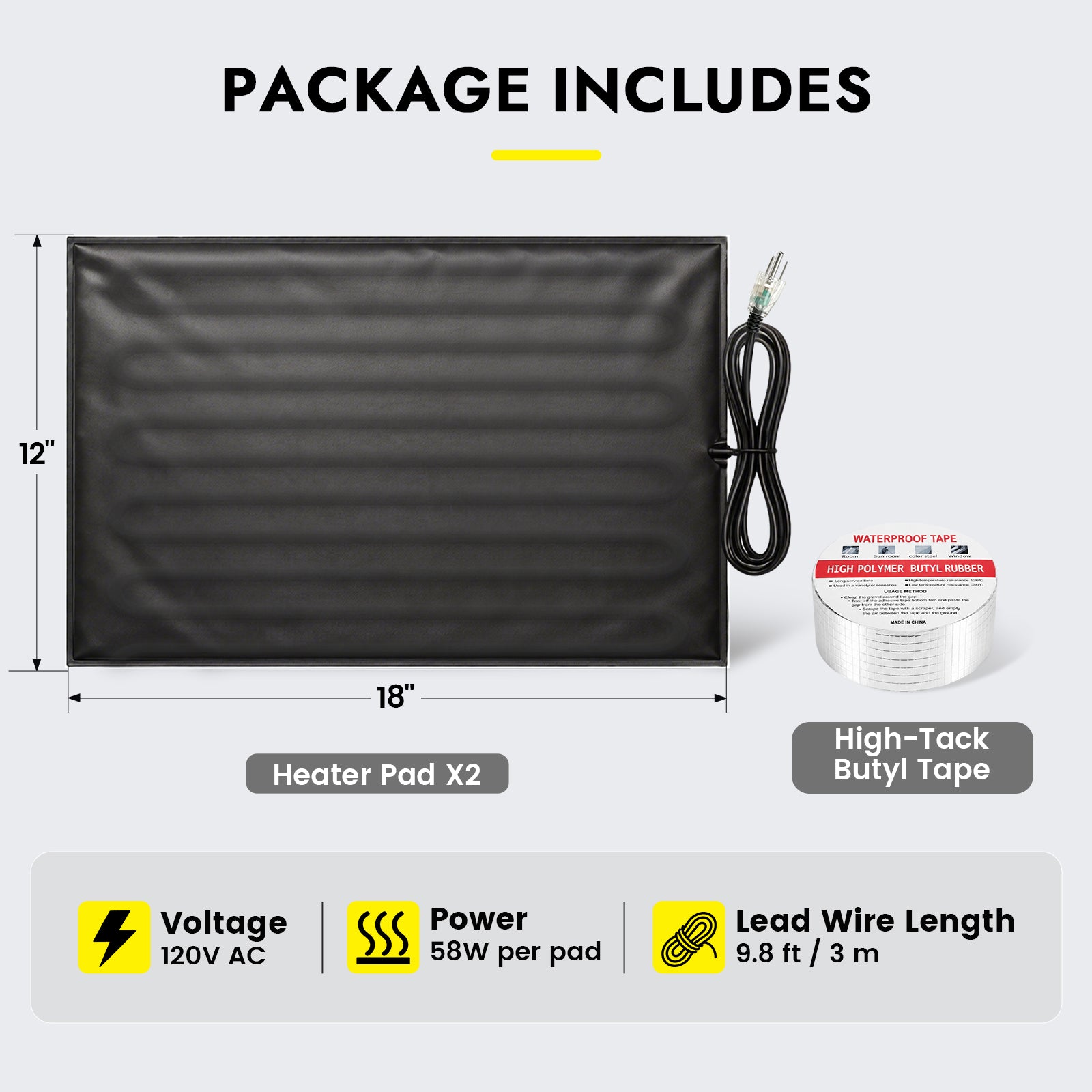

2-Pad Standard Kit
Includes two 12 x 18 in heater pads for compatible two-tank or multi-pad RV installations.
2 Heater Pads
12 x 18 in
58W Per Pad

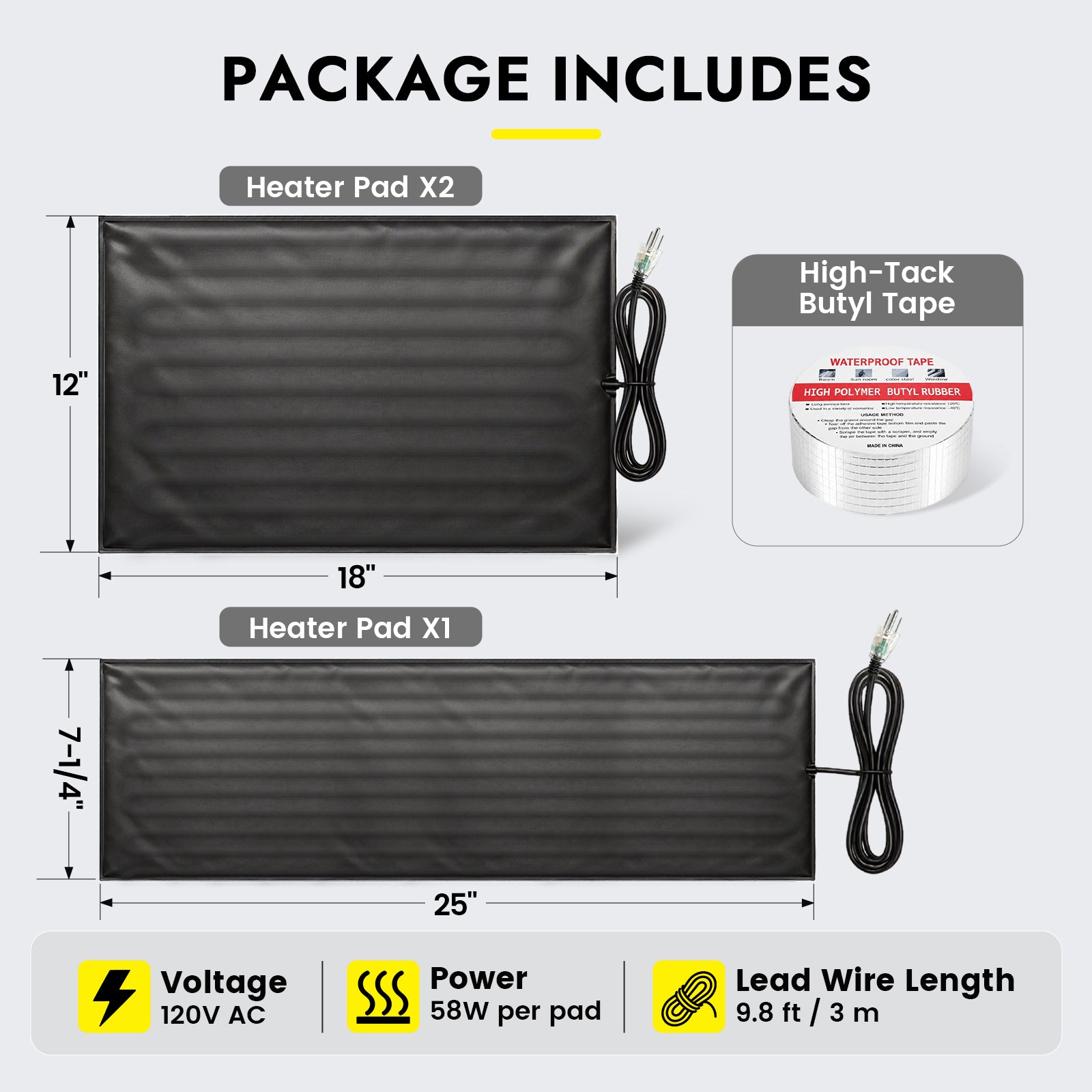

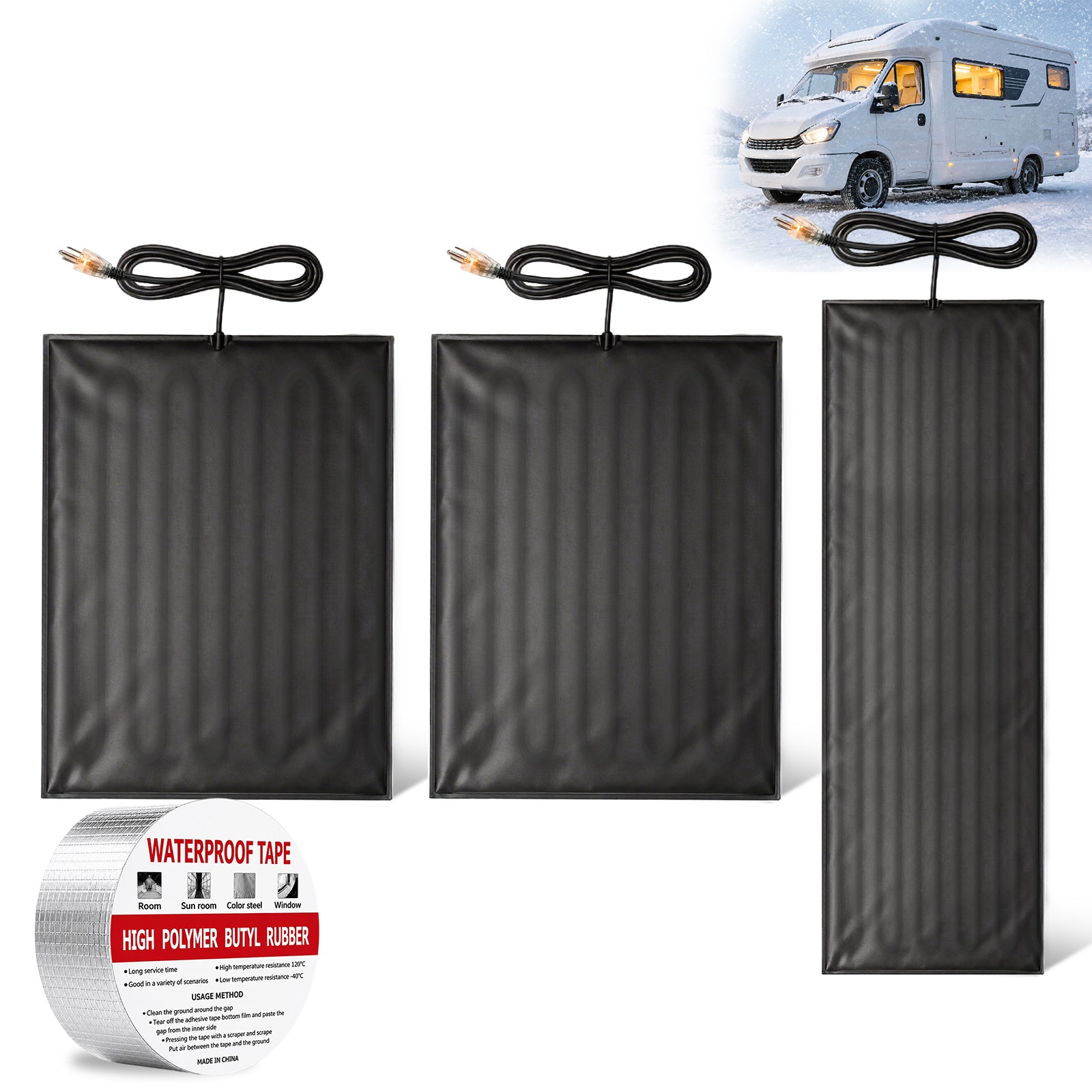

3-Pad Mixed-Size Kit
Includes two standard 12 x 18 in heater pads plus one additional narrow-format heater pad for RV setups that need a different mounting footprint.
3 Heater Pads
Mixed Sizes
Multi-Tank Setup
12V or 120V — Which One Should I Choose?
Choose 120V AC
Choose this version if you have access to a properly grounded 120V AC outlet and prefer a plug-in power connection without direct 12V heater-pad wiring.
120V AC Power
Plug-In Setup
No 12V Pad Wiring
Need RV 12V DC Power?
If you want the heater pads powered directly from your RV's standard 12V DC electrical system, see the 12V RV Tank Heater Pad with Switch.
RV 12V DC System
Switch Controlled
Mobile Power
Important Before Ordering
The tank must contain liquid while the heater pad is operating. Do not plug in or operate the heater pad when the tank is empty. Liquid inside the tank helps absorb and distribute heat.
This product is designed for 120V AC power only. Do not connect it directly to a 12V DC electrical system.
Confirm that each tank has a suitable flat mounting area before ordering. Do not cut, trim, stretch, fold, puncture, crease, resize, or otherwise modify the heater pad.
For RV underbody or outdoor use, the outlet should be protected by a GFCI device. Keep the plug and electrical connection away from standing water.
The heater pad protects the tank area where it is installed. Exposed pipes, valves, elbows, fittings, and other plumbing components may require separate insulation or freeze protection.
You have access to properly grounded 120V AC power
Your tank has a suitable flat mounting area
The tank will contain liquid during operation
The heater pad can remain completely flat
The power cord can be routed away from sharp edges and moving parts
A GFCI-protected outlet is available for outdoor or underbody use
The tank surface can be cleaned and dried before installation
Separate protection is available for exposed plumbing when needed
Recommended Applications
This 120V RV tank heater pad is intended for supplemental freeze protection on compatible RV holding tanks when a suitable 120V AC power source is available.
Fresh Water Tank Protection
Helps reduce freezing risk for compatible RV fresh water tanks during cold-weather camping, travel, or storage.
Gray Water Tank Protection
Provides supplemental tank-surface heat for compatible gray water tanks exposed to freezing conditions.
Black Water Tank Protection
Suitable for compatible RV black water holding tanks when a flat installation surface and safe 120V power connection are available.
Multi-Tank RV Systems
2-pad and 3-pad configurations can support compatible RV setups that require freeze protection on multiple tank areas.
Typical Users
RV owners using campgrounds with 120V electrical service
Travel trailer owners preparing for cold-weather trips
Fifth-wheel and camper owners
Owners protecting parked RVs during cold weather
DIY users who prefer plug-in power over 12V heater wiring
RV service technicians and professional installers
Not Intended For
- Direct connection to a 12V DC RV electrical system
- Operation on an empty tank
- Heating drinking water for comfort or domestic hot-water use
- Replacing complete RV winterization
- Protecting exposed pipes, valves, elbows, or fittings by itself
- Installations that require cutting, folding, stretching, or resizing the heater pad
- Damaged power cords, plugs, or heater-pad surfaces
- Electrical connections exposed to standing water
For a heater pad designed to connect to a standard RV 12V DC electrical system, see the 12V RV Tank Heater Pad with Switch.
Installation Overview

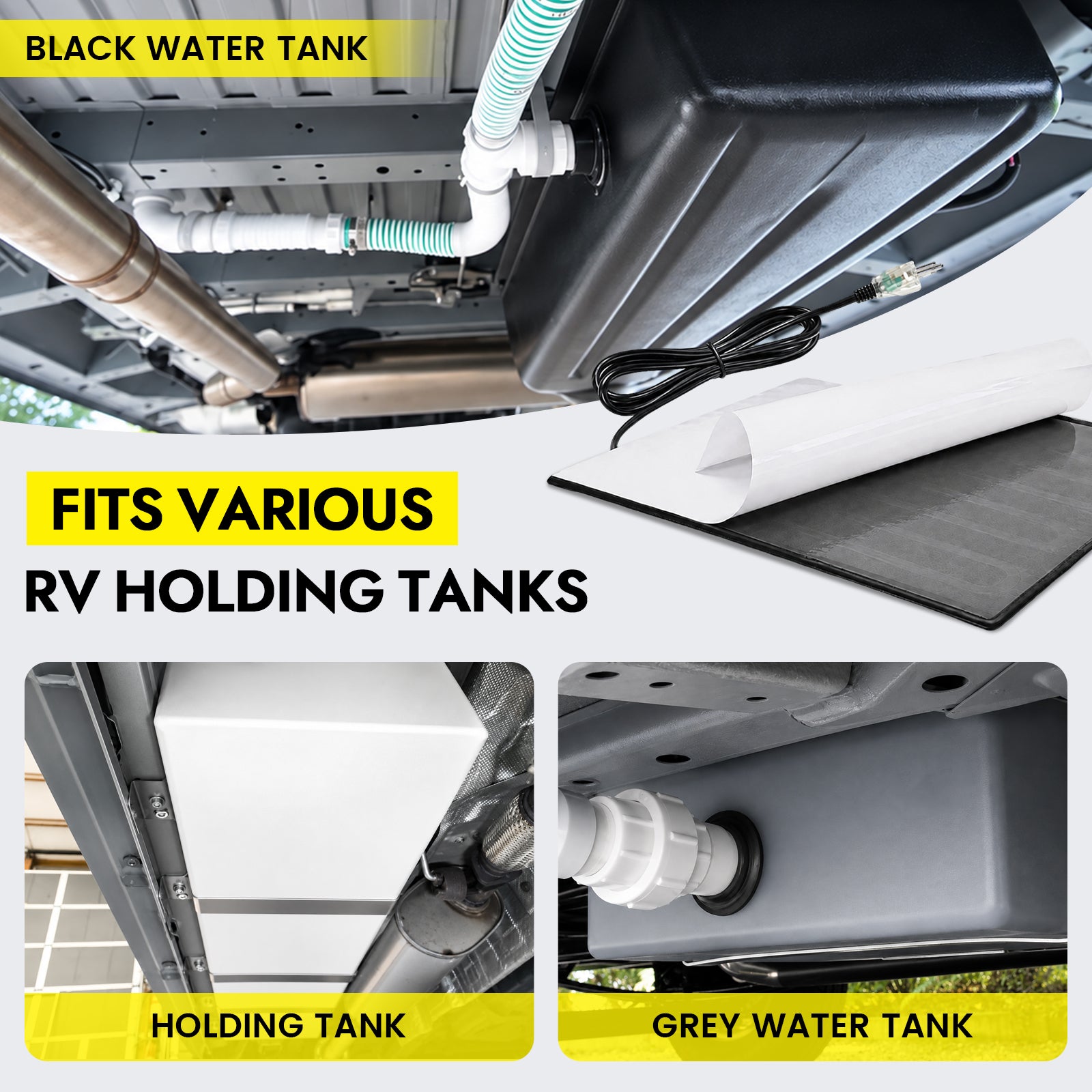

Install each heater pad on the bottom or lower side of a compatible RV tank, preferably on a flat area near the lowest point and close to the drain or outlet area.
- Keep the heater pad unplugged during installation.
- Clean the tank surface thoroughly to remove dirt, oil, moisture, and debris.
- Make sure the mounting surface is fully dry, smooth, and free from sharp protrusions.
- For better adhesion, install when the tank surface is at room temperature or at least 50°F / 10°C.
- Peel the protective backing from the adhesive side of the heater pad.
- Position the heater pad flat against the bottom or lower side of the tank.
- Press firmly and evenly across the entire pad to ensure full contact with the tank surface.
- Remove trapped air bubbles during installation.

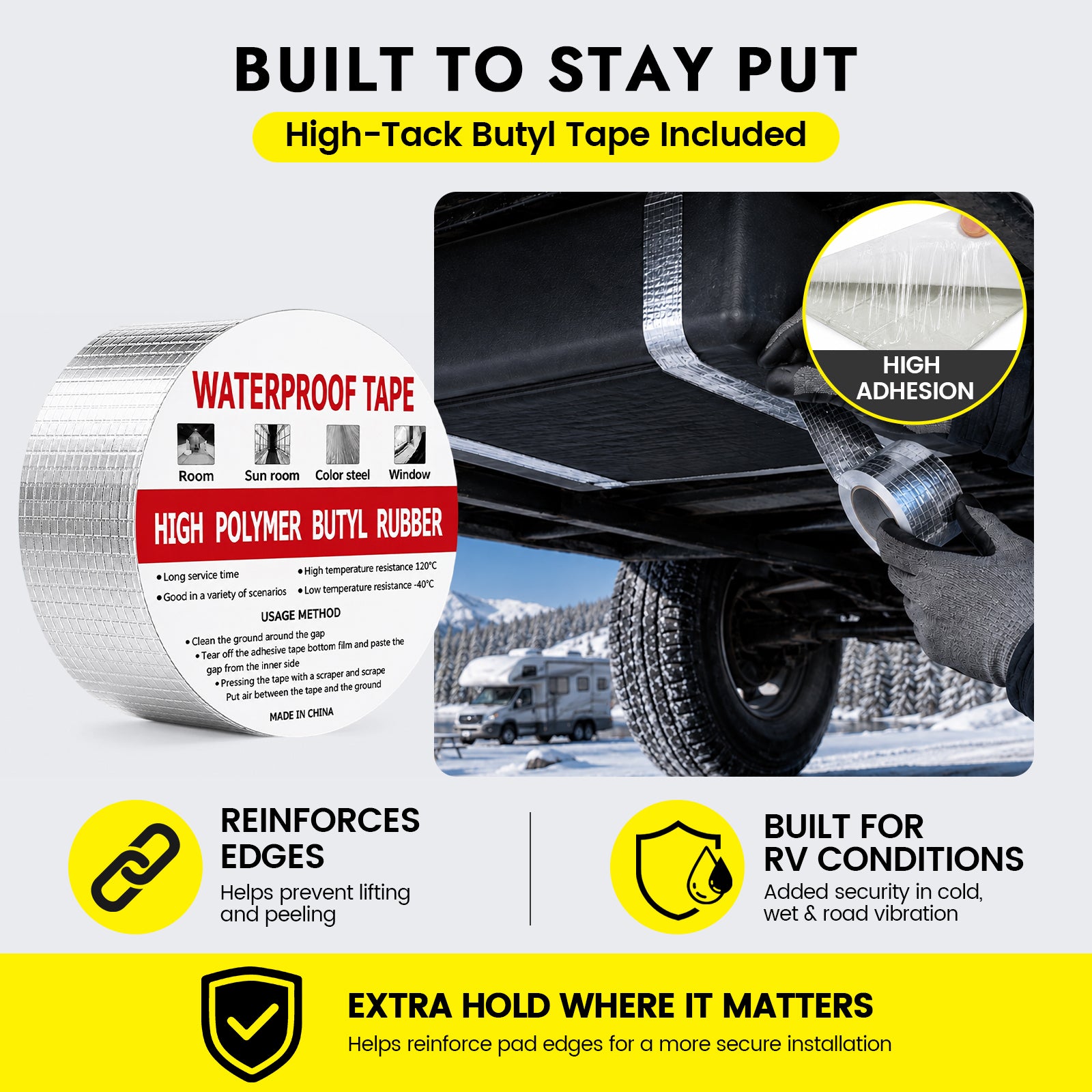

- Apply suitable adhesive tape around the pad edges when needed to improve long-term adhesion and help prevent edge lifting.
- Secure the power cord so it cannot hang loose, rub against sharp edges, contact moving parts, or be pulled during vehicle movement.
- Plug the heater pad directly into a properly grounded 120V AC outlet.
- For RV underbody or outdoor installations, use a GFCI-protected outlet and keep the plug and connection point away from standing water.
- Confirm that the power indicator illuminates when power is active.
Important Installation Notes
Install on a Flat Surface
Choose a smooth tank-bottom or lower-side area that allows full contact across the heater pad.
Keep the Pad Flat
Do not stretch, fold, crease, cut, trim, puncture, or resize the heater pad during installation.
Protect the Power Cord
Route the cord away from sharp edges, moving parts, hot surfaces, and areas exposed to road impact.
Use Grounded 120V Power
Connect only to a properly grounded 120V AC electrical outlet.
Use GFCI Protection Outdoors
For RV underbody or outdoor applications, use a GFCI-protected outlet and keep electrical connections away from standing water.
Never Heat an Empty Tank
The tank must contain liquid whenever the heater pad is operating.
Installation Mistakes to Avoid
Do not install over dirt, oil, or moisture
Do not install over sharp protrusions
Do not stretch the heater pad
Do not fold or crease the heater pad
Do not cut or trim the heater pad
Do not puncture the heater pad
Do not leave the power cord loose under the RV
Do not place the plug or connection in standing water
Before You Order
Confirm that 120V AC power is available
Confirm access to a properly grounded outlet
Choose the 2-pad or 3-pad configuration
Measure each planned mounting area
Confirm the tank has a flat mounting surface
Plan safe routing for each 12 ft power cord
Plan GFCI protection for outdoor or underbody use
Plan separate freeze protection for exposed plumbing when necessary
Before Turning the Heater On
Confirm the tank contains liquid
Check that each heater pad remains flat against the tank
Inspect heater-pad edges for lifting
Inspect each power cord and plug
Confirm cords are protected from sharp edges and moving parts
Keep electrical connections away from standing water
Confirm the outlet is properly grounded
Verify the power indicator illuminates when connected
Maintenance
Inspect the heater pad, power cord, plug, and adhesive edges regularly. If an edge begins to lift, clean and dry the area before securing it with suitable adhesive tape.
Do not operate the heater pad if the power cord, plug, heater-pad surface, or electrical connection is damaged.
Storage Before Installation
Store in a cool, dry location
Avoid direct sunlight
Do not place heavy pressure on the heater pad
Do not fold the heater pad
Keep away from sharp objects
Keep the adhesive surface clean
Leave the protective backing in place until installation
Cold-Weather RV Reminder
This heater pad is intended as supplemental RV tank freeze protection. It does not replace proper winterization or separate freeze protection for exposed pipes, valves, elbows, fittings, and other vulnerable plumbing components.
