YeloDeer 55 Gal Drum Heater Blanket with Thermostat Controller
The YeloDeer Drum Heater System is designed to maintain and gently heat materials stored in 55 gallon drums and similar containers. It helps reduce liquid viscosity, improve material flow, and prevent thickening or crystallization caused by low temperatures.

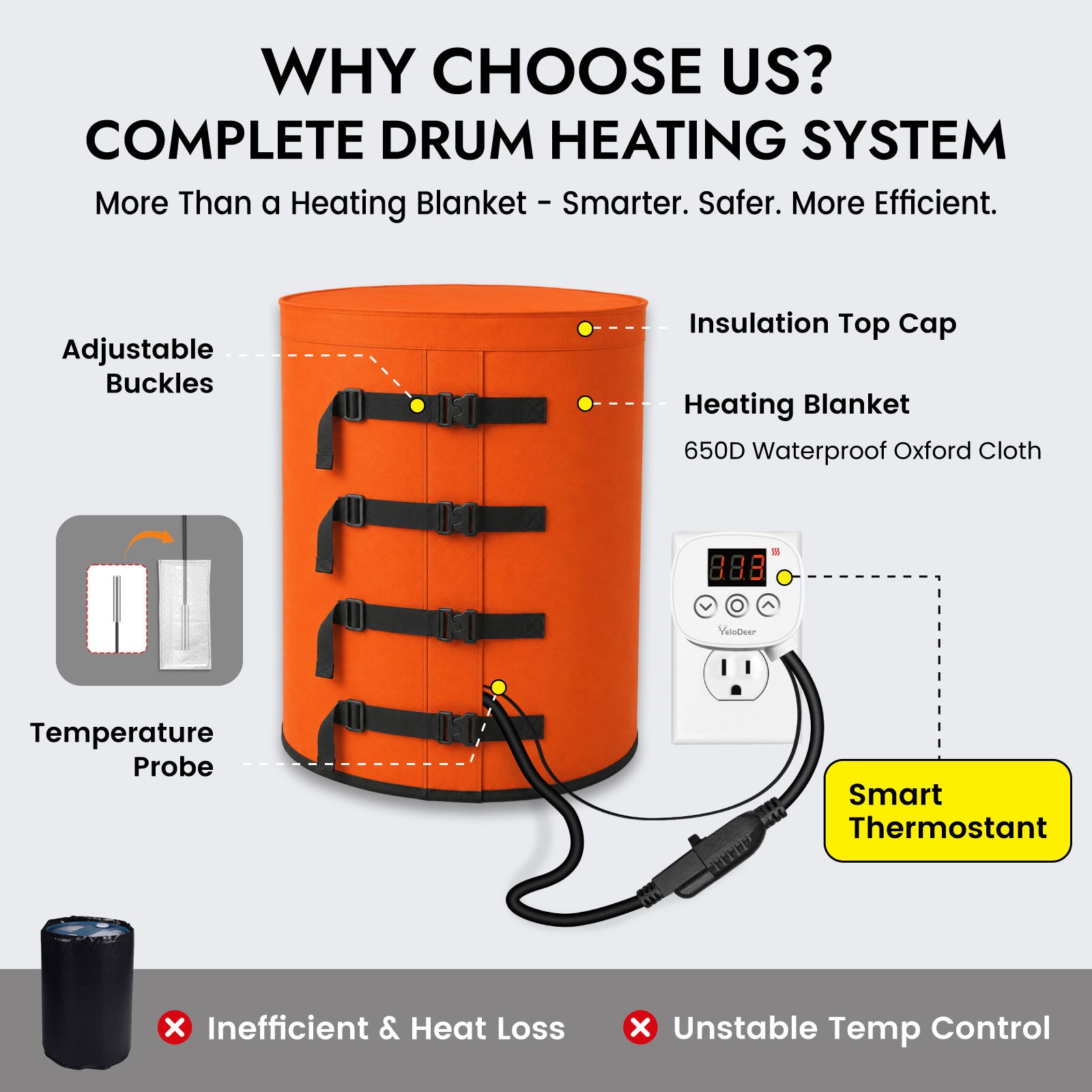

The system includes a full-coverage heating blanket, insulated top cover, and digital thermostat controller for precise temperature adjustment and automatic heating control.
Quick Fit Snapshot
55 Gallon Drum Heater
Designed for standard 55 gal drums and similar size containers.
Thermostat Controlled
Adjustable temperature control from 36–140°F (1–60°C).

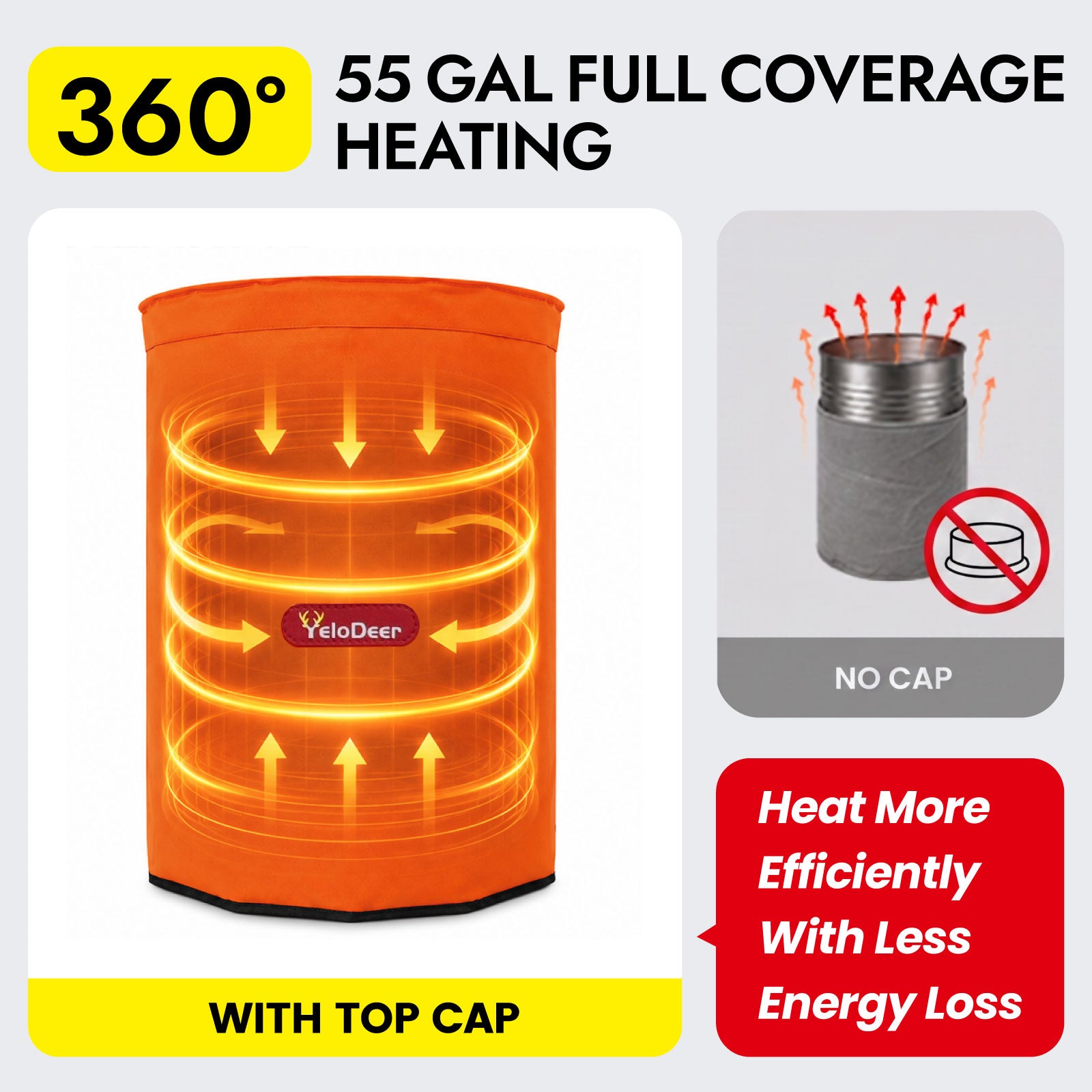

Full Coverage Heating
Provides uniform heating around the drum surface.

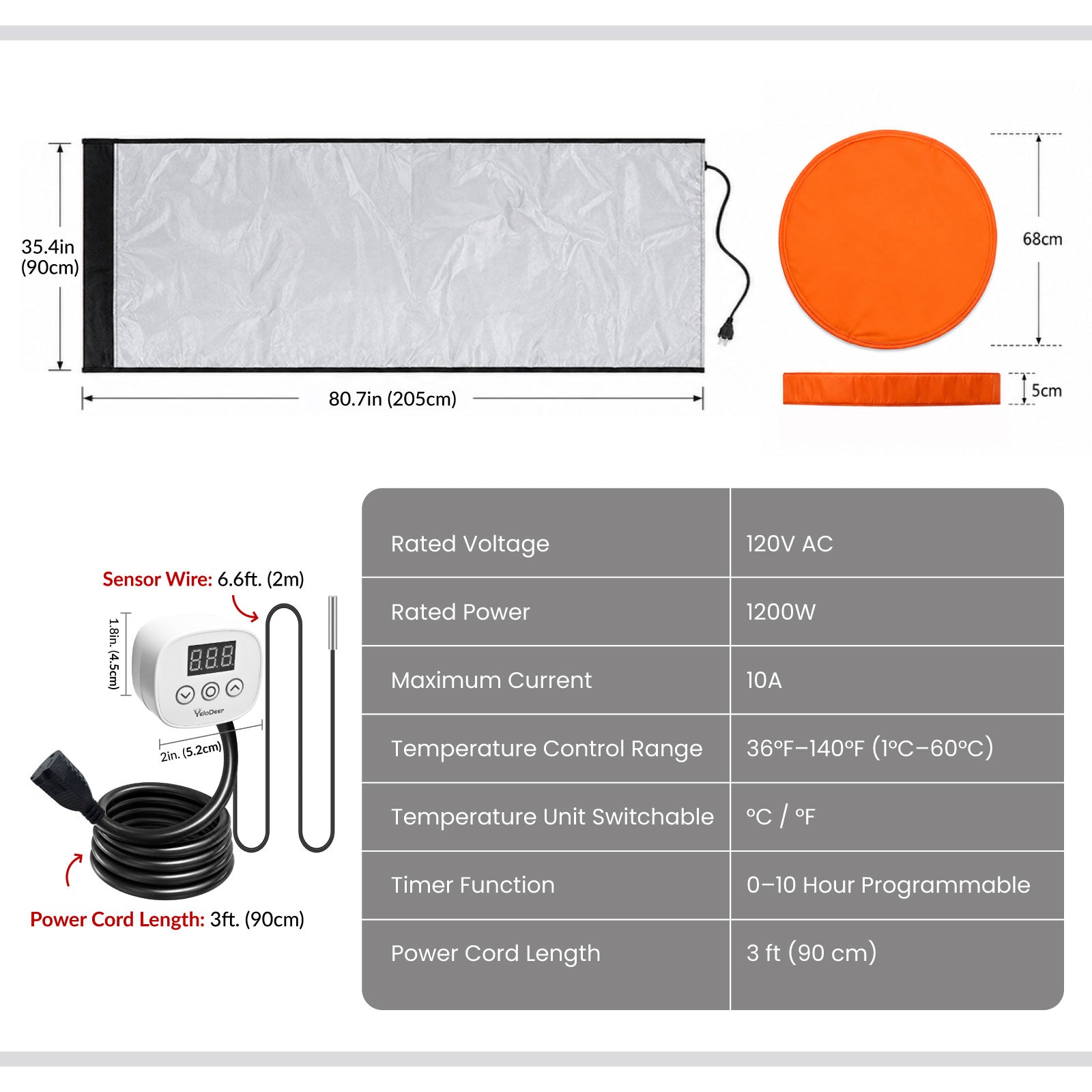

120V AC Power
1200W heating system for industrial and commercial applications.
Key Benefits
Reduce Liquid Viscosity
Helps warm thick liquids such as oils, coatings, adhesives, and resins to improve flow.
Prevent Cold Weather Issues
Helps prevent crystallization, thickening, and low-temperature material problems.

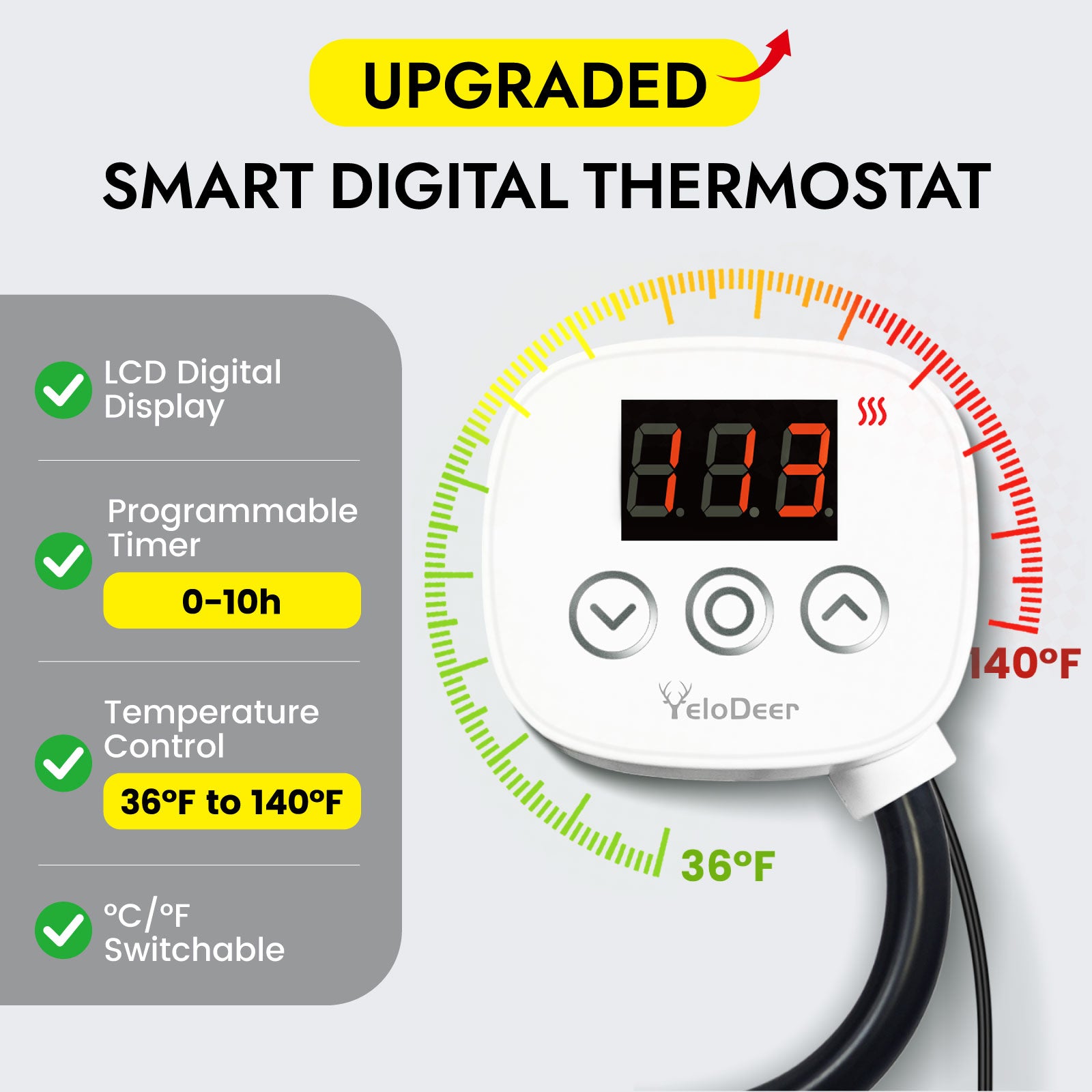

Precise Temperature Control
Digital thermostat provides adjustable temperature settings with real-time display.
Easy Installation
Wrap-around heating blanket design allows quick installation without complicated setup.
Suitable For
Industrial Materials
Lubricating Oils
Industrial Oils
Paints & Coatings
Adhesives
Resins
Food-Related Materials
Honey
Syrups
Viscous Food Products
Compatible Containers
55 Gal Metal Drums
Plastic Pails
Honey Buckets
Paint Buckets
Important Before Ordering
This drum heater is designed for non-hazardous materials only.
Do not use with flammable, combustible, explosive, or hazardous materials. Always confirm that the container material and heating temperature are suitable for your application.
Temperature Guide
| Material / Container |
Recommended Setting |
Purpose |
| Metal Drums |
113–140°F (45–60°C) |
Reduce viscosity and improve liquid flow |
| Honey / Food Materials |
95–113°F (35–45°C) |
Prevent crystallization |
| Plastic Containers |
Below 100°F (37°C) |
Reduce risk of deformation |
Recommended Applications

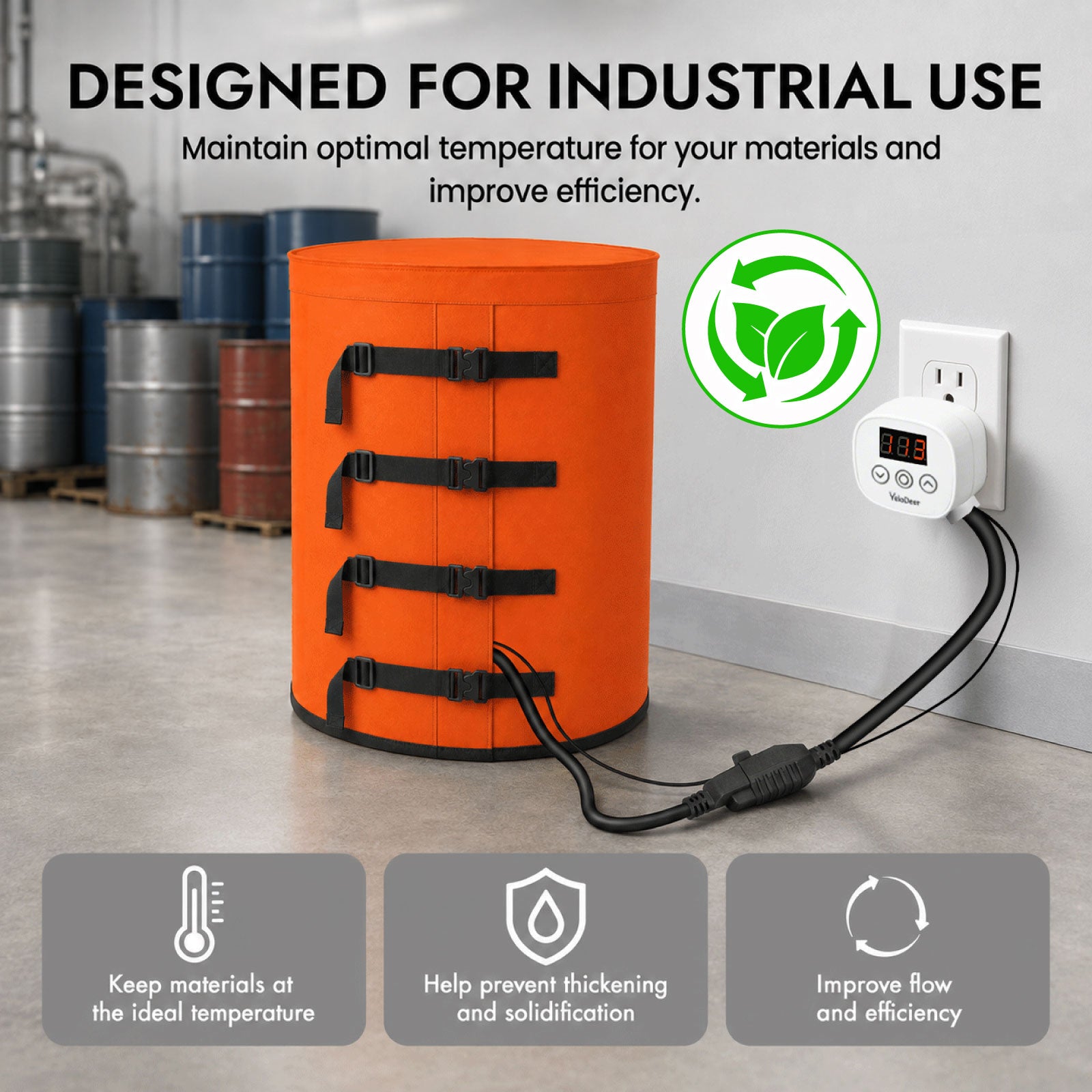

The YeloDeer Drum Heater is suitable for applications requiring controlled warming and temperature maintenance of non-hazardous liquids and materials.
Industrial Processing
Lubricants
Oils
Paints
Coatings
Adhesives
Food Material Handling
Honey
Syrup
Food Ingredients
Storage Applications
Winter Storage
Cold Environment
Material Conditioning
When Not To Use
Do Not Use For
Flammable liquids, combustible materials, hazardous chemicals, explosive environments, or applications requiring certified hazardous-area equipment.
Recommended Use
Non-hazardous materials stored in compatible containers where controlled warming is required.
Installation Overview
The drum heater is designed for simple wrap-around installation on compatible containers. Proper installation ensures uniform heating performance and safe operation.

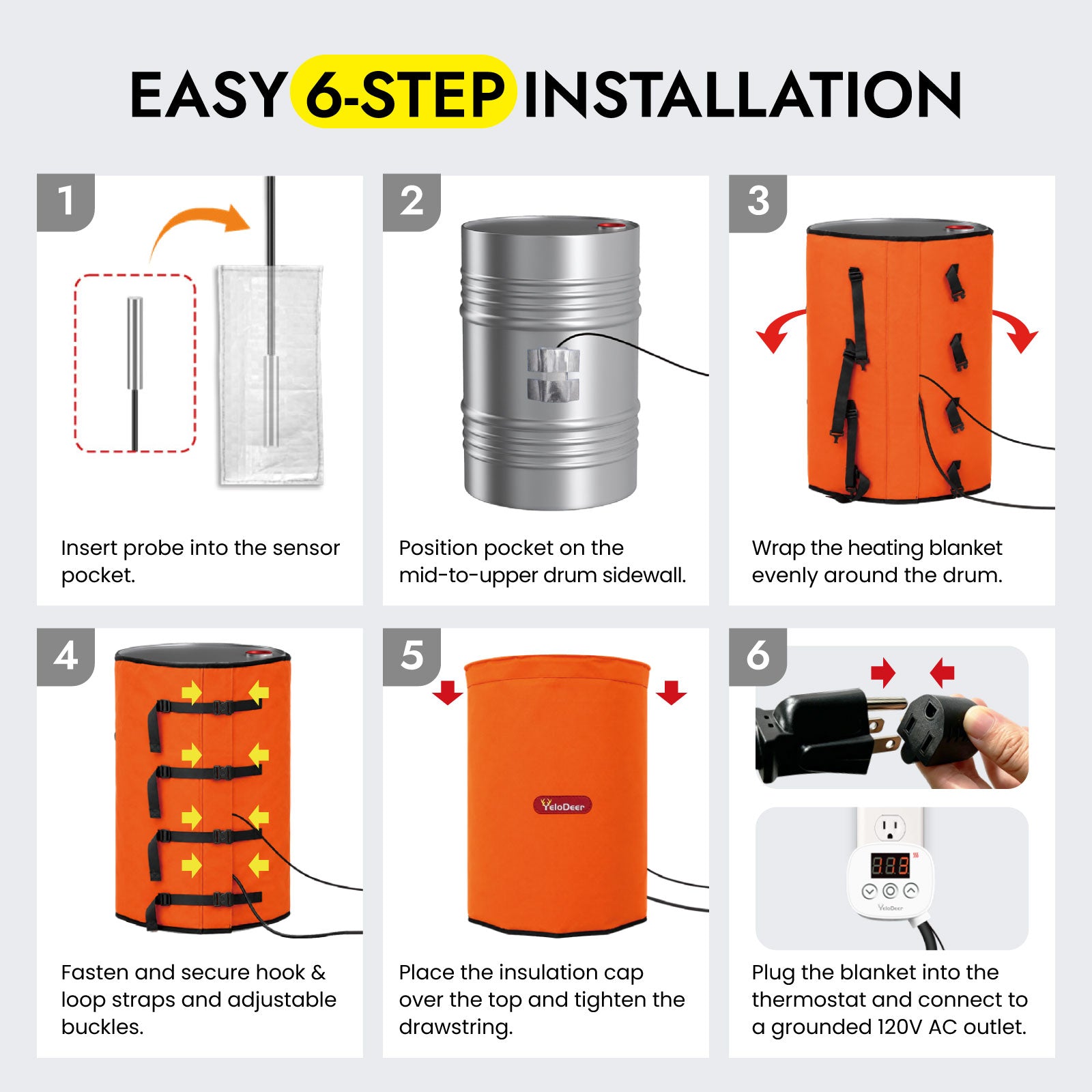

Installation Steps
-
Insert the thermostat sensor probe into the sensor pocket.
-
Place the sensor pocket firmly against the drum surface. The aluminum foil side should directly contact the drum.
-

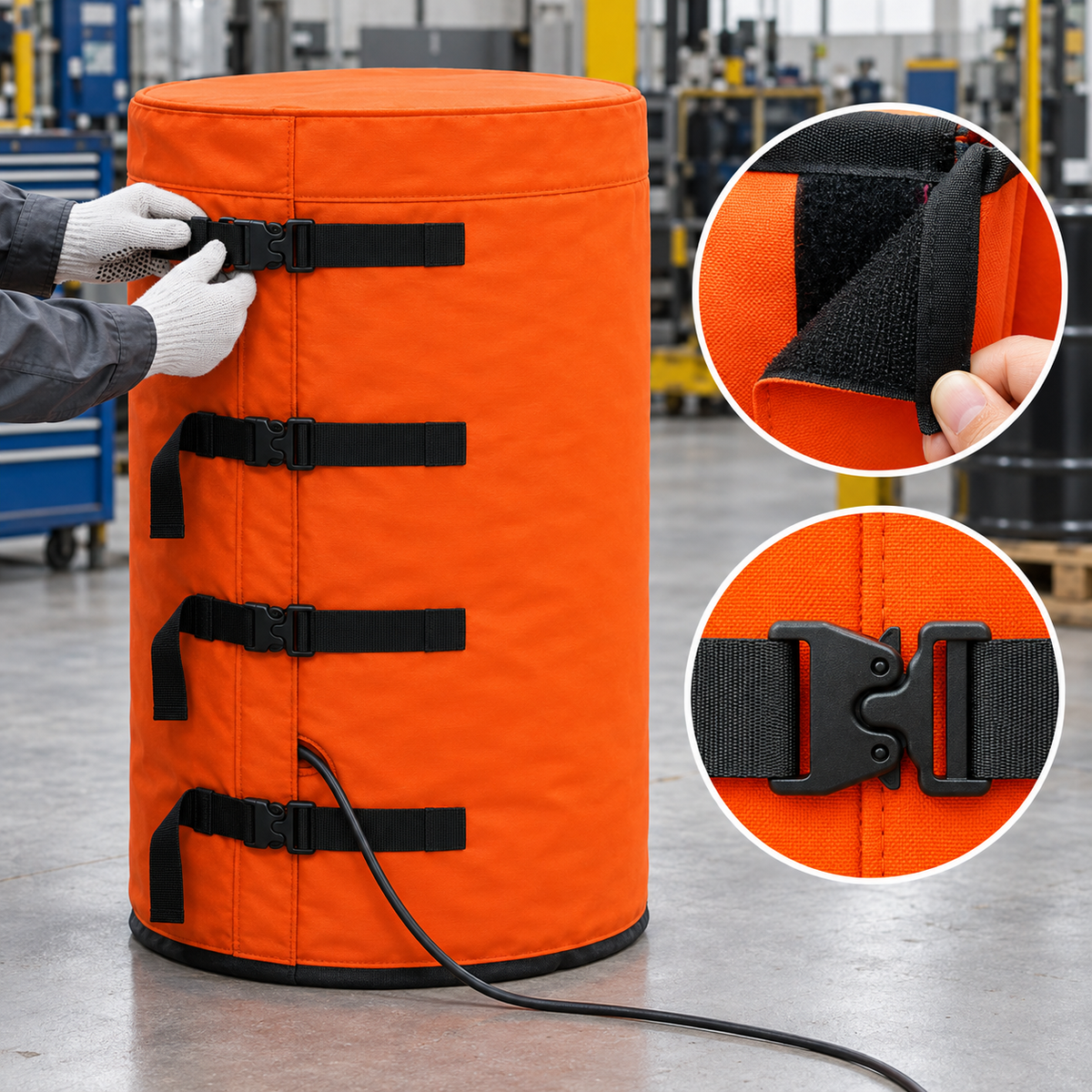

Wrap the heating blanket evenly around the drum and ensure full contact without gaps or folds.
-
Secure the blanket using the Velcro straps and adjustable buckle.
-
Install the insulation cap on the top of the container to reduce heat loss.
-
Connect the heater to the thermostat controller, then plug into a properly grounded 120V AC outlet.
Important Installation Notes
Full Surface Contact
Ensure the heating blanket fits tightly against the container surface for efficient heat transfer.
Correct Sensor Placement
The thermostat sensor should remain in direct contact with the drum surface for accurate temperature control.
Avoid Folding
Do not operate the heater when folded, overlapped, or tightly creased.
Check Power Supply
Confirm the power supply matches 120V AC before operation.
Hot Surface Warning:
The heating surface may become hot during operation. Do not touch the heater surface while powered.
Before Use Checklist
Confirm container size is compatible
Verify material is non-hazardous
Check heater and power cord condition
Install sensor correctly
Ensure blanket is flat and evenly installed
Confirm thermostat settings before heating
Maintenance Tips
Keep Clean
Clean the heater surface with a soft cloth. Avoid corrosive cleaning agents.
Inspect Regularly
Check the heating blanket, plug, sensor wire, and controller for damage before use.
Store Properly
Allow the heater to cool completely before storage. Keep it in a dry location.
Protect Heating Elements
Avoid scratching, puncturing, sharp bending, or mechanical damage.
Technical Support
If you need help selecting the correct drum heater or have questions about compatibility, please contact YeloDeer technical support with your container type, material information, and application details.
