Overview

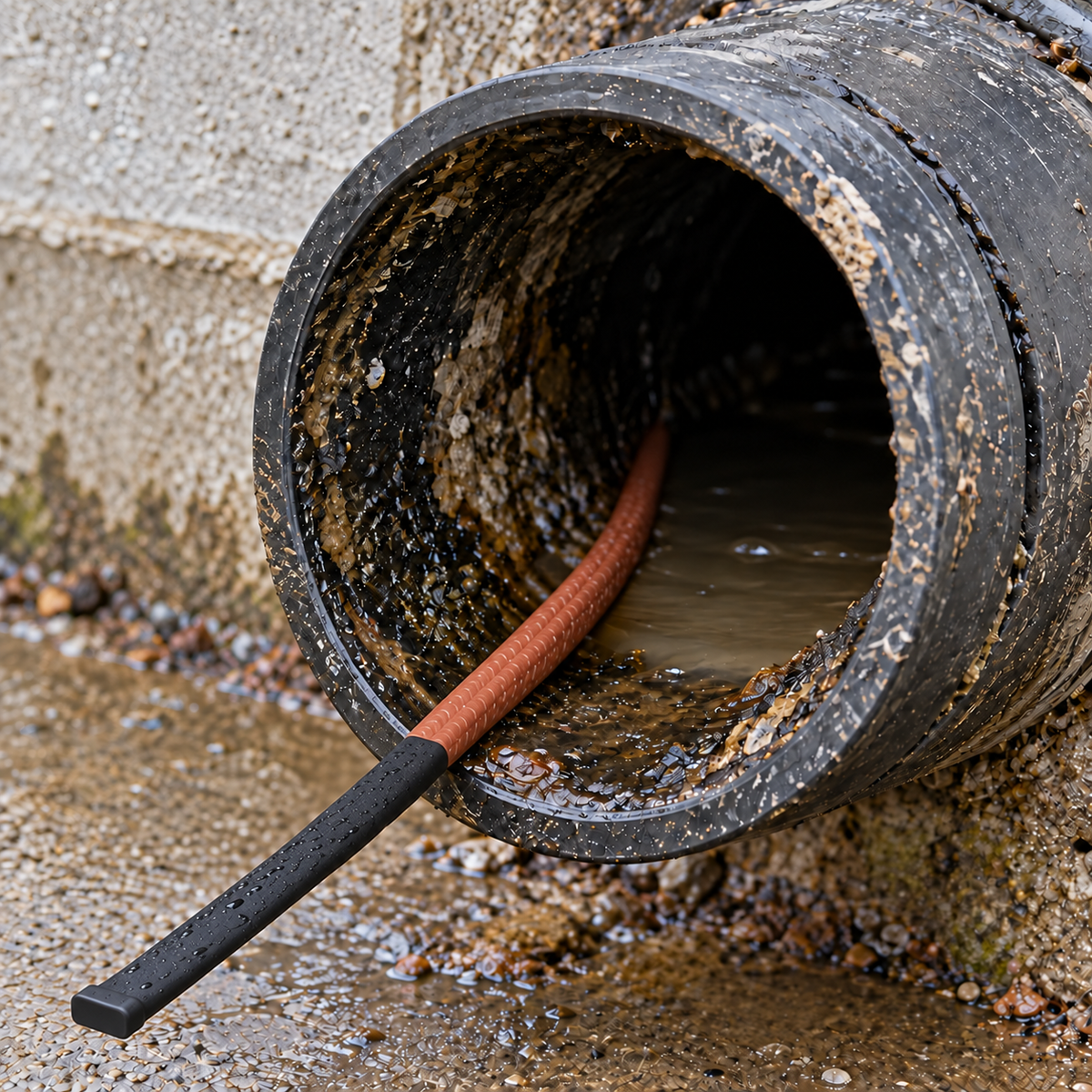

Heavy-Duty In-Pipe Heating Cable for Sewer, Septic & Waste Drain Systems
YeloDeer IPHC-DMa is a heavy-duty self-regulating in-pipe heating cable designed for non-pressurized sewer lines, septic systems, waste drain pipes, sump pump discharge lines, downspout drain lines, and larger drainage applications where freezing can block wastewater flow during winter.
This model is built specifically for sewer and drain environments. It delivers 5W/ft heating output at 50°F / 10°C and uses a corrosion-resistant fluoropolymer outer jacket to help withstand harsh wastewater conditions.
This product is ideal for customers who need to protect underground drain lines, septic outlets, large-diameter waste pipes, or exposed drain openings from freezing, ice buildup, and winter blockage.
Key Benefits
• Designed for non-pressurized sewer, septic, drain, and wastewater pipes
• 5W/ft heating output for heavy-duty freeze protection
• Self-regulating heating technology adjusts output as pipe temperature changes

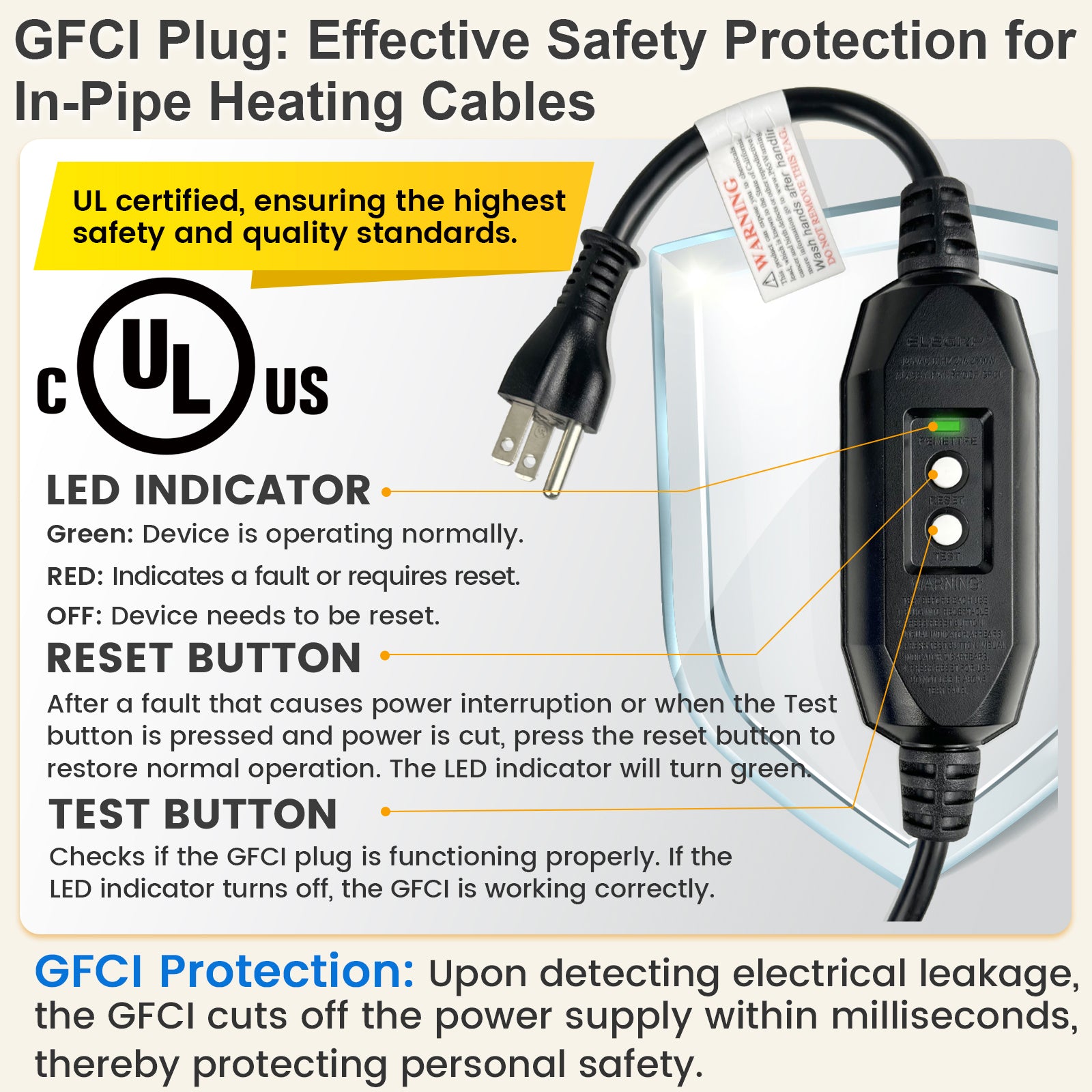

• Built-in GFCI plug for enhanced electrical safety

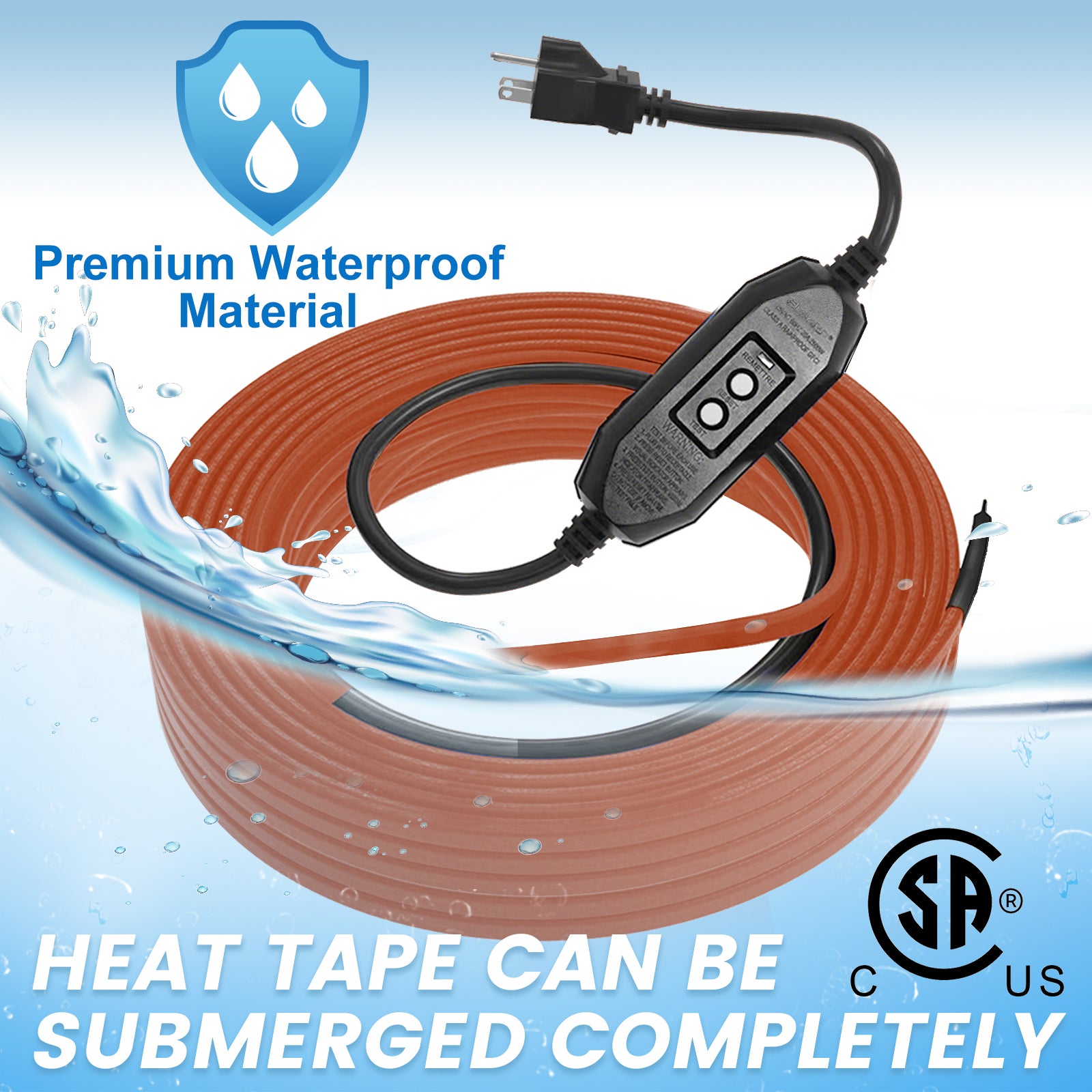

• Corrosion-resistant fluoropolymer jacket for wastewater environments
• Suitable for 2 in and larger drain or waste pipes
• Can be inserted through cleanouts, open pipe ends, drain outlets, or compatible access points
• Standard 120V options available, with custom 120V / 240V and custom lengths available
• Helps avoid frozen blockages without costly excavation in many installations
Important Before You Order
This cable is for non-pressurized sewer, septic, drain, and wastewater applications. It is not intended for pressurized drinking water supply lines. If you need freeze protection for potable water lines, please choose YeloDeer’s standard in-pipe heating cable or Y-fitting in-pipe heating cable instead.
For best results, confirm your pipe diameter, access point, cable route, freezing section length, and whether your pipe needs to remain sealed after installation.
If your system is a closed drain or sewer pipe that must be sealed after inserting the cable, a sealing accessory may be required. YeloDeer offers optional sealing end caps for 3 in and 4 in pipes, sold separately. If a T-type connector is needed for your installation, please note that it is not included.
Self-Regulating Does Not Mean Auto-Off
This cable automatically increases heat output in colder areas and reduces output in warmer areas. However, it does not shut off completely by itself. To fully stop heating, unplug the cable or use a compatible temperature controller.
For automatic seasonal operation and improved energy savings, we recommend using this cable with a thermostat, sold separately.
Need a Custom Length or Voltage?
Standard products are 120V. If you need a custom length or 240V version, select the “Custom: Any Size/Volt” option or contact us at yelodeer@yelodeer.com.
After a custom order is placed, our team will contact you by email within 1 business day to confirm your voltage, length, pipe type, and installation requirements.
For more details on the differences between our pipe heating solutions, check our blog: How to Choose the Right Heat Cable for Your Pipes
Applications & Compatibility
Recommended Applications

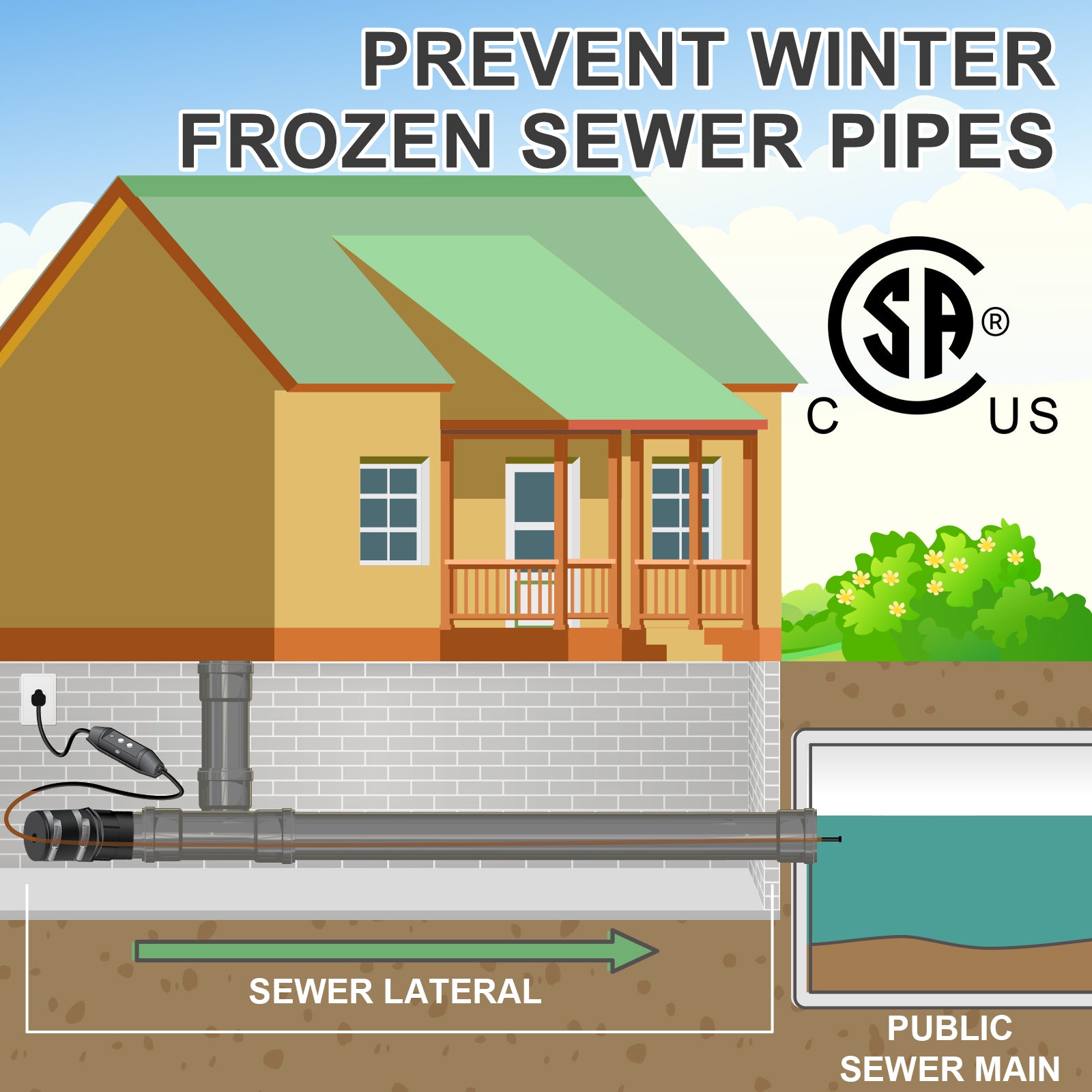

YeloDeer IPHC-DMa is designed for non-pressurized wastewater and drainage systems that are vulnerable to freezing during winter.
Common applications include:
• Sewer lines
• Septic tank outlets
• Waste drain pipes
• Sump pump discharge lines
• Downspout drain lines
• Large-diameter drainage pipes
• Outdoor wastewater outlets
• Underground drain lines
• Cabin, farm, and rural property drainage systems
• Commercial or residential drain freeze protection
This cable is especially useful when a frozen drain or sewer line could cause wastewater backup, drainage failure, pipe blockage, or winter maintenance issues.
Pipe Compatibility
This product is recommended for 2 in and larger non-pressurized drain or waste pipes.
It can be inserted through:
• Cleanout openings
• Open pipe ends
• Drain outlets
• Septic or sewer access points
• Compatible T-type access points
• 3 in or 4 in pipe openings when used with the appropriate sealing accessory
If your pipe is smaller than 2 in, has very tight bends, or has limited internal space, the smaller IPHC-DMi model may be a better option for open drain applications.

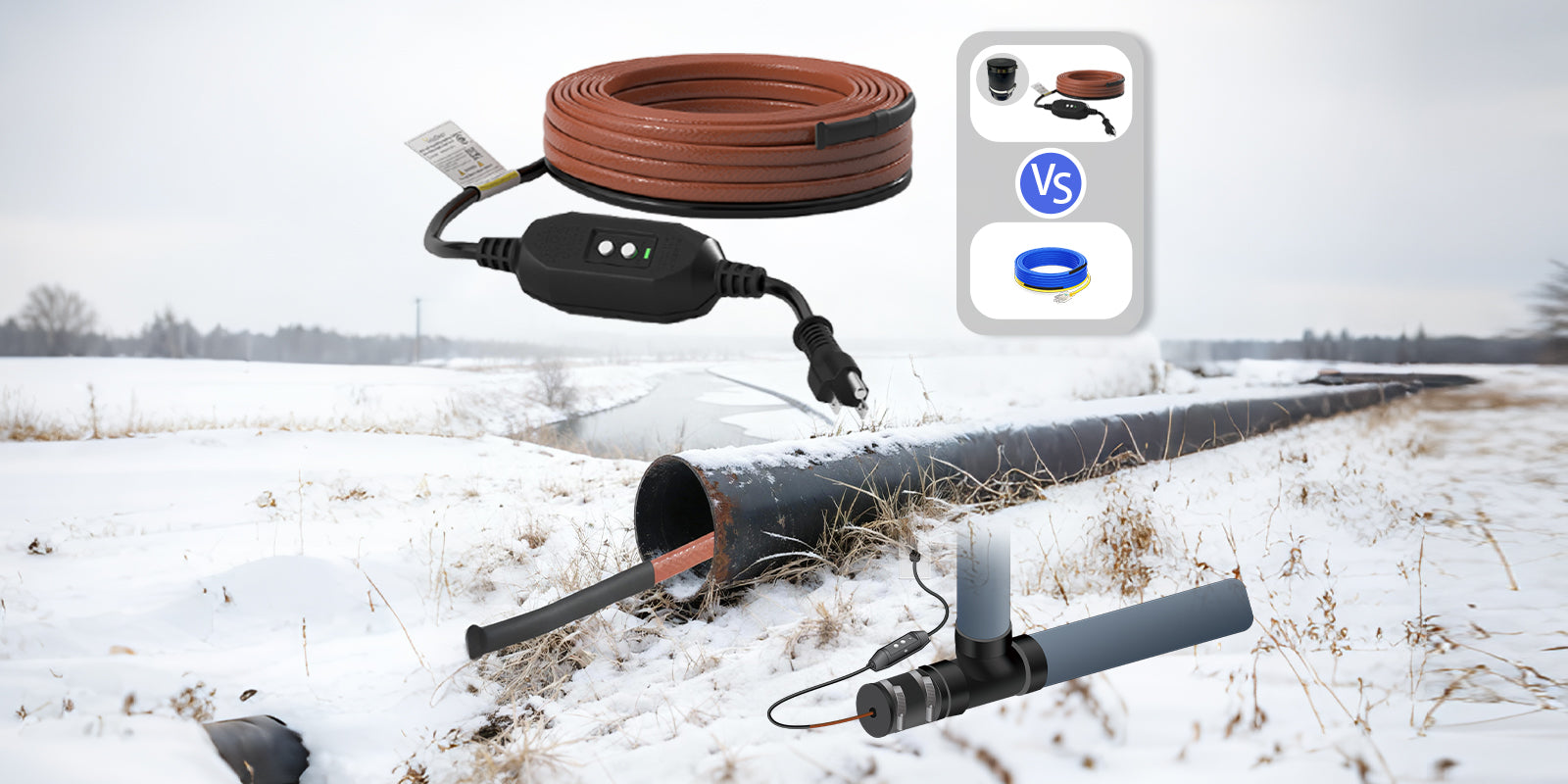

IPHC-DMa vs IPHC-DMi
IPHC-DMa is the heavy-duty version.
Choose IPHC-DMa if you need:
• A larger, stronger cable for sewer, septic, or large drain pipes
• 5W/ft heating output
• Built-in GFCI protection
• Compatibility with 2 in and larger pipes
• Optional sealing for 3 in / 4 in closed drain pipes
• A more robust solution for severe winter drainage problems
Choose IPHC-DMi if you need:
• A smaller and more compact cable
• Open drain applications only
• Drains smaller than 2 in
• A more economical option where GFCI protection is already provided by the circuit
When Not to Use This Product
This product is not recommended for:
• Pressurized drinking water supply pipes
• Potable water lines
• Pipes smaller than 2 in unless confirmed suitable
• Pipes with blocked, collapsed, or unknown internal conditions
• Pipes with very sharp bends where the cable cannot pass safely
• Applications where the cable may be crushed, cut, or exposed to moving mechanical parts
For pressurized potable water systems, please choose a YeloDeer potable in-pipe heating cable instead.
Specifications & Sizing

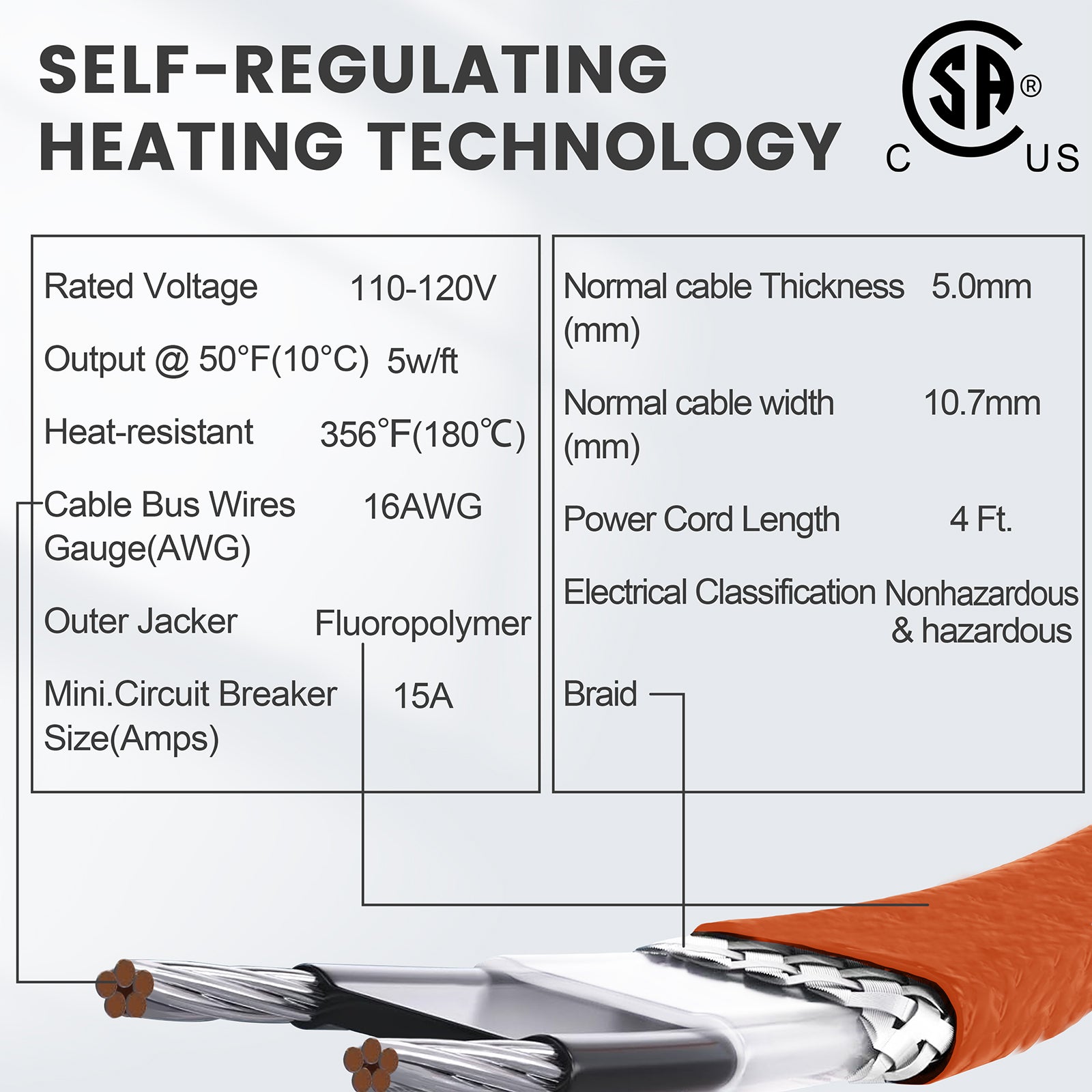

Product Specifications
Product Type: Heavy-duty self-regulating in-pipe heating cable for sewer and drain systems
Model: IPHC-DMa
Application: Non-pressurized sewer, septic, drain, and wastewater pipes
Heating Output: 5W/ft at 50°F / 10°C
Standard Voltage: 120V
Custom Voltage: 120V / 240V available by custom order
Cable Type: Self-regulating heating cable
Outer Jacket: Corrosion-resistant fluoropolymer jacket
Power Cord Length: 4 ft
Plug Type: Integrated GFCI plug
Recommended Pipe Size: 2 in and larger drain or waste pipes
Optional Sealing Accessories: 3 in and 4 in sealing end caps, sold separately
Cable Size: Approx. 0.42 × 0.2 in
Minimum Bend Radius: 1-1/2 in at 32°F / 0°C
Available Lengths: Standard sizes from 6 ft to 180 ft, plus custom length options
Custom Orders: Custom length and voltage options are available
How to Choose the Right Length
Measure from the cable entry point to the farthest section that needs freeze protection. Add extra length for bends, access points, and the outside sealing area if needed.
We recommend choosing the next standard length up rather than choosing a cable that is too short.
Before selecting your length, confirm:
• Where the cable will enter the pipe
• How far the freezing section extends
• Whether the pipe has bends or restricted areas
• Whether the pipe must be sealed after installation
• Whether you need 120V or 240V
• Whether the cable will be used in an open drain or closed drain
Important Sizing Note
This cable cannot be cut or shortened in the field. It is factory terminated and not field-spliceable.
If the cable is slightly longer than needed, the excess length may be managed near the entry area or, in larger pipes, routed carefully inside the pipe without forcing sharp bends. Do not cut the heating cable.
When to Choose 240V
A 240V cable does not automatically use less energy than a 120V cable. Energy usage is based on wattage and operating conditions.
The main advantage of 240V is that it can support longer cable runs with lower current, making it useful for longer sewer, septic, or drain applications.
For custom 240V orders, please contact yelodeer@yelodeer.com with your required length, pipe diameter, application, and installation photos if available.
Installation & Accessories
Basic Installation Overview
This cable is designed to be inserted inside a non-pressurized sewer, septic, drain, or wastewater pipe through a suitable access point.
Typical installation steps:
1. Identify the freezing section of the pipe.
2. Choose a suitable entry point, such as a cleanout, open pipe end, drain outlet, or access fitting.
3. Confirm the pipe is not blocked, collapsed, or too narrow for the cable.
4. Insert the cable into the pipe carefully.
5. Use fish tape or a guide tool for longer pipe runs if needed.
6. Avoid forcing the cable through sharp bends or restricted areas.
7. If the pipe must be sealed, use the appropriate sealing accessory.
8. Plug the cable into a properly protected outlet.
9. For outdoor power connections, use a weather-protected outlet and an in-use cover.
10. Use a thermostat if you want automatic on/off control.
Installation Notes
• Do not cut the cable.
• Do not splice the cable.
• Do not crush or sharply bend the cable.
• Do not force the cable through blocked or collapsed pipe sections.
• Keep the minimum bend radius at 1-1/2 in at 32°F / 0°C.
• Use proper GFCI-protected power supply.
• Protect outdoor plugs and outlets from rain, snow, and standing water.
• If the pipe is closed and must remain sealed, use a compatible sealing accessory.
• For complex sewer, septic, or underground drainage systems, professional installation is recommended.

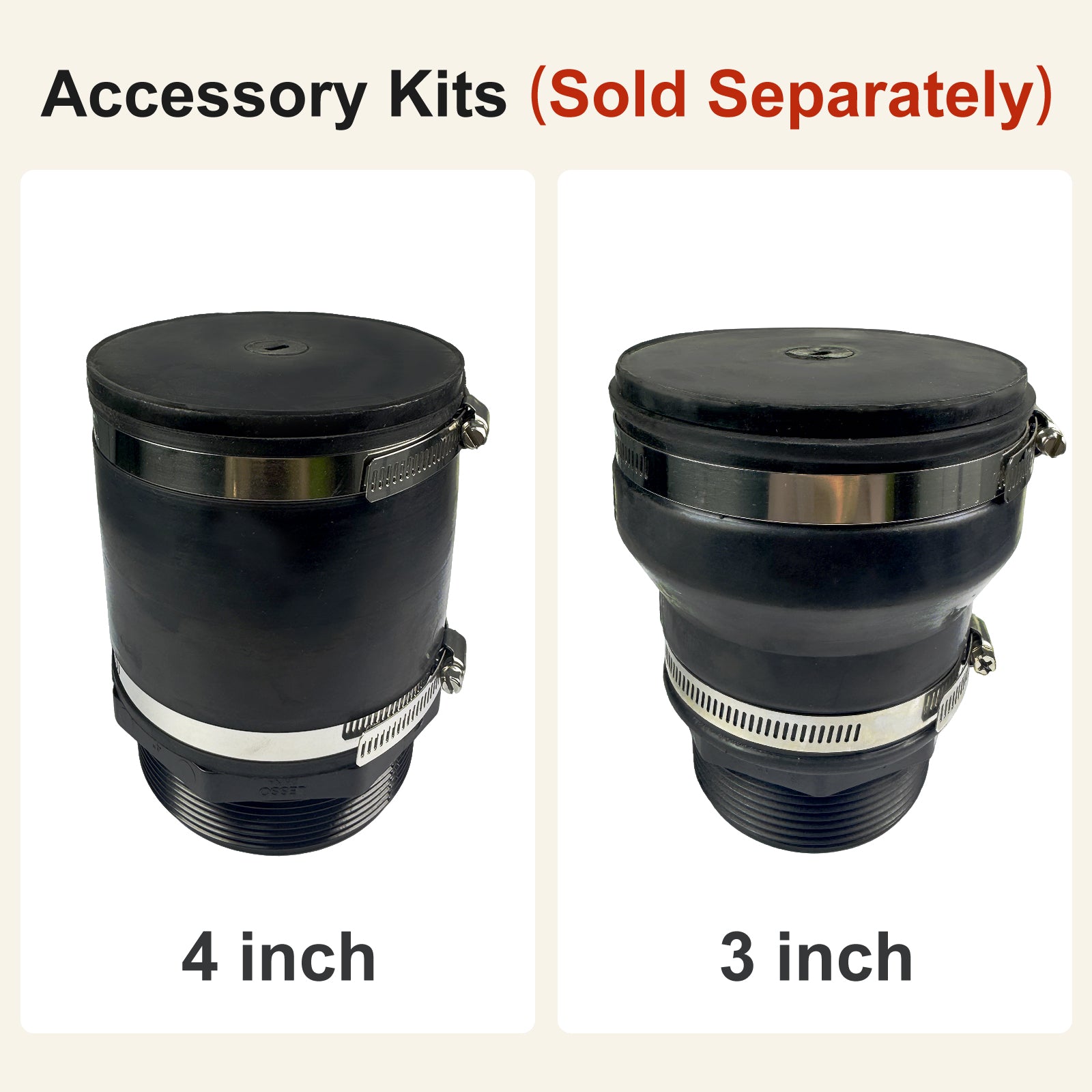

Accessories and Related Options
Depending on your installation, you may need:
• 3 in sealing end cap
• 4 in sealing end cap
• T-type connector for sealed pipe entry
• Fish tape for long pipe runs
• Pipe insulation for exposed sections
• Weatherproof in-use outlet cover
• Pipe heat tape thermostat
• GFCI-protected outdoor outlet
Temperature Controller Recommendation
The cable can operate by plugging directly into power, but a thermostat is recommended if you want automatic temperature-based control.
A thermostat helps:
• Turn the heating system on only when needed
• Reduce unnecessary winter electricity use
• Avoid manual plugging and unplugging
• Manage seasonal temperature changes
• Improve long-term operating convenience
The thermostat is sold separately.
FAQ & Resources
Additional Product Questions
1. Is this cable for potable water pipes?
No. This model is designed for non-pressurized sewer, septic, drain, and wastewater systems. For drinking water supply lines, please choose YeloDeer’s potable in-pipe heating cable or Y-fitting in-pipe heating cable.
2. Can this cable be used in a dry or empty pipe?
The self-regulating heating cable reduces output as the surrounding temperature rises, which helps reduce overheating risk. However, the cable should still be installed according to the product instructions and should not be crushed, cut, or exposed to unsafe conditions.
3. Can I use this cable in a downspout drain line?
Yes, it can be used in suitable non-pressurized downspout drain lines if the pipe diameter, cable route, entry point, and power connection are compatible. Outdoor electrical connections must be protected from moisture.
4. Can the cable pass through elbows?
It may pass through smooth bends if there is enough internal space and the bend radius is not too tight. Do not force the cable through sharp elbows, blocked sections, crushed pipe, or unknown pipe routes.
5. Will the cable block wastewater flow?
In properly sized 2 in or larger drain and waste pipes, the cable is designed to sit inside the pipe while allowing wastewater to pass. Avoid using it in undersized, blocked, or debris-heavy lines where flow may already be restricted.
6. Do I need to insulate the pipe?
For exposed above-ground sections, insulation can improve freeze protection and energy efficiency. Underground sewer and drain pipes may not need external insulation, but exposed openings, access points, or above-ground sections should be protected when possible.
7. Can this cable be used for a septic tank outlet?
Yes. This product is designed for non-pressurized septic and sewer applications, including septic tank outlet freeze protection when the pipe size and access point are compatible.
8. What information should I send for a custom order?
Please send:
• Pipe type
• Pipe diameter
• Required heating length
• Voltage requirement: 120V or 240V
• Entry point photos
• Whether the pipe is open or needs to be sealed
• Any bends, cleanouts, or access fittings in the route
You can email us at yelodeer@yelodeer.com.
Related Resources
For automatic temperature control, use with YeloDeer Pipe Heat Tape Thermostat.
For drinking water supply lines, choose YeloDeer standard in-pipe heating cable or Y-fitting in-pipe heating cable.
For smaller open drain applications, compare with the IPHC-DMi compact in-drain heating cable.
For product selection help, contact yelodeer@yelodeer.com with photos of your pipe, pipe diameter, required length, and application details.
Real Customer Installations
The installation photos below show how customers use YeloDeer heavy-duty in-pipe heating cable in real sewer, septic, drain, sump discharge, and wastewater applications.
Every drainage system is different. Pipe diameter, entry point, pipe condition, bends, underground layout, and sealing requirements can all affect installation.
Before ordering, please check:
• Where the cable will enter the pipe
• The pipe diameter
• The total length that needs freeze protection
• Whether the pipe is open or closed
• Whether a sealing accessory is required
• Whether the pipe has sharp bends or restricted sections
• Whether the power outlet is protected from weather
If you are unsure which length or accessory to choose, send your installation photos and pipe details to yelodeer@yelodeer.com. Our team can help review your application before you order.
