12V DC Self-Regulating Heating Cable for RV, Camper & Off-Grid Pipe Freeze Protection
YeloDeer 12V RV Self-Regulating Heating Cable is a low-voltage external pipe heating cable designed for RVs, campers, trailers, boats, off-grid plumbing, outdoor water lines, small hoses, and battery-powered freeze protection applications.
Unlike standard 120V pipe heat tape, this cable runs on 12V DC power. It is ideal for mobile and remote setups where standard household power may not be available, such as RV water lines, camper plumbing, boat pipes, solar battery systems, emergency water systems, and outdoor low-voltage installations.
The cable uses self-regulating heating technology, which automatically adjusts heat output based on surrounding temperature. It produces more heat in colder areas and reduces output as the pipe or cable warms up. This helps provide safer, more energy-conscious freeze protection for 12V systems.
Key Benefits
• 12V DC low-voltage heating cable
• Designed for RVs, campers, trailers, boats, and off-grid plumbing
• Self-regulating heating technology adjusts output as temperature changes
• 5W/ft heating output at 50°F / 10°C
• Stable maximum cable temperature approx. 140°F / 60°C
• Can be used on dry or water-filled pipes when installed properly
• Safe for straight, spiral, and overlapping installation
• Cut-to-length design for custom pipe layouts
• Waterproof end seal kit included
• 3 ft power cord included
• Aluminum foil tape and zip ties included for installation
• 5-layer cable structure with bus wire, heating core, insulation, braid, and outer jacket
• Suitable for 12V battery, RV power, solar battery, and off-grid systems when properly protected
Best For
• RV water lines
• Camper plumbing
• Trailer water pipes
• Boat and marine water lines
• Off-grid cabins
• Solar battery-powered water systems
• Outdoor faucets and small pipes
• Garden hoses and outdoor water lines
• Poultry and pet water systems
• Agricultural water lines
• Emergency freeze protection during power outages
• Remote workstations and low-voltage winter setups
Important Before You Order
This product requires 12V DC power. It is not a 120V plug-in pipe heat cable. Do not connect it directly to a household 120V AC outlet.
Before purchasing, please confirm:
• Your power source is 12V DC
• Your power supply or battery can handle the required current
• You can install proper fuse protection
• Your wire gauge is suitable for the cable length and current
• The heating cable will be installed externally on the pipe
• The cut end will be sealed correctly if the cable is shortened
• The electrical connections can be protected from moisture
This Product Is for External Pipe Use Only
This cable should be installed on the outside of the pipe, hose, or water line.
Do not insert it inside drinking water pipes, sewer pipes, drain lines, tanks, or any pipe where the cable will be in direct contact with water inside the pipe.
For internal pipe applications, choose a dedicated in-pipe or in-water heating cable.
Self-Regulating Does Not Mean Auto-Off
Self-regulating means the cable changes heat output as temperature changes.
When the pipe is colder, the cable produces more heat.
When the pipe becomes warmer, the cable reduces heat output.
However, self-regulating does not mean the cable fully shuts off by itself.
If the cable is connected to 12V DC power, it may continue to draw power. For battery-powered systems, use a thermostat, switch, fuse, or power management method if you want better control and battery protection.
Applications & Compatibility
Recommended Applications
YeloDeer 12V Self-Regulating Heating Cable is designed for low-voltage external freeze protection where 120V power is not convenient or not available.
Common applications include:
• RV water pipes
• Camper water lines
• Trailer plumbing
• Boat and marine water lines
• Off-grid cabin plumbing
• Solar battery-powered water systems
• Outdoor low-voltage water lines
• Garden hoses
• Outdoor faucets
• Poultry waterers
• Pet water systems
• Livestock water lines
• Small agricultural water lines
• Emergency winter freeze protection
• Remote workstations and temporary water systems

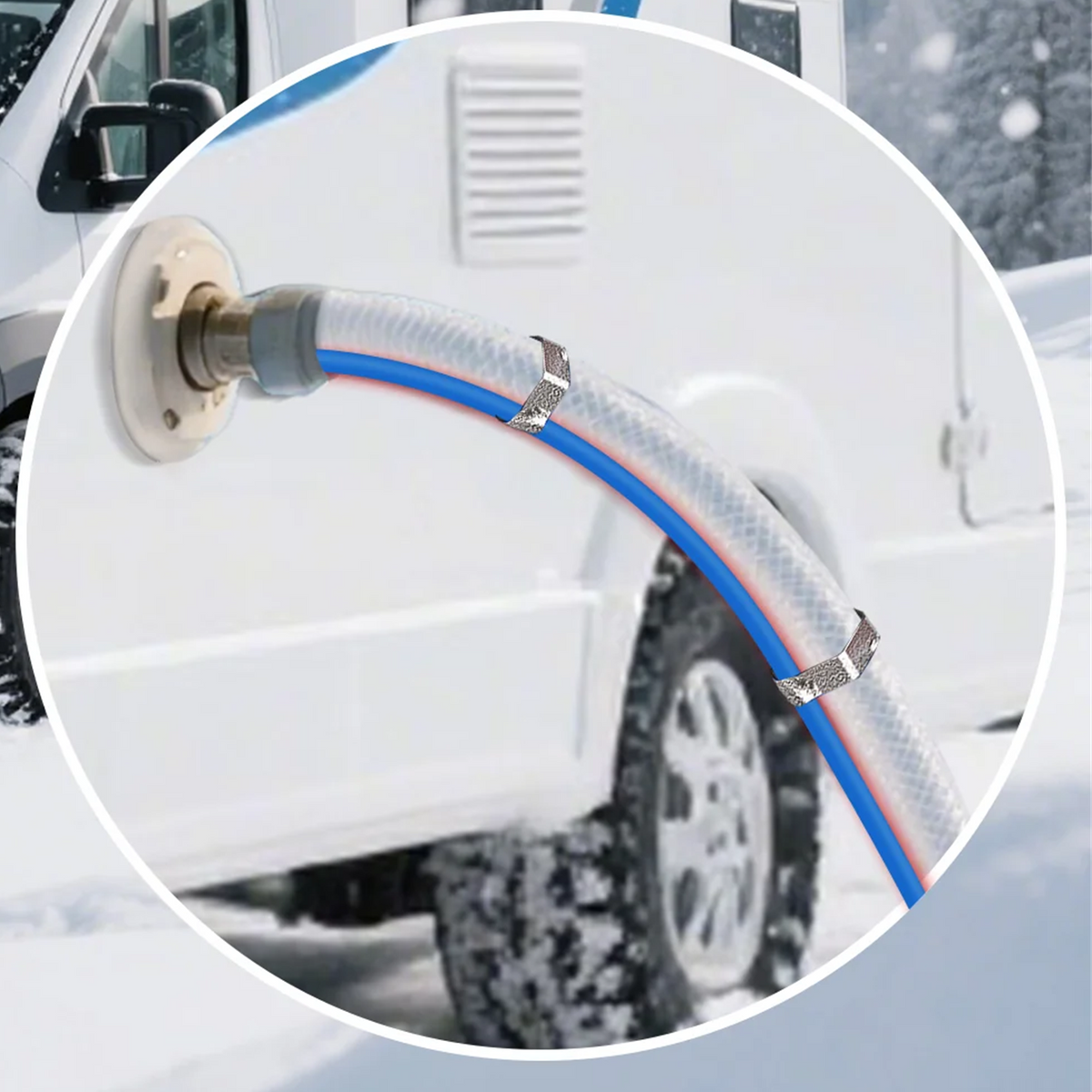

RV, Camper & Trailer Use
This cable is especially useful for mobile winter setups.
It can help protect:
• Fresh water lines
• Exposed RV plumbing
• Camper water hoses
• Trailer pipe sections
• Low-voltage winter water systems
• Small vulnerable pipe sections near exterior compartments
Make sure the cable is installed externally, secured properly, and protected from abrasion, road debris, sharp edges, and water intrusion at electrical connections.
Boat & Marine Use
This low-voltage cable may be used in suitable boat and marine applications where 12V DC power is available.
It can help protect small onboard water lines or exposed plumbing sections from freezing.
Important: Protect all electrical connections from moisture and follow marine electrical safety requirements.
Off-Grid & Battery-Powered Use
Because this product uses 12V DC power, it may be used with:
• 12V battery systems
• RV battery systems
• Solar battery systems
• Emergency battery backup
• Off-grid water systems
Before installation, calculate total power draw and battery runtime. Longer cable lengths use more power.
Compatible Pipe and Hose Materials
This heating cable can be installed externally on many suitable pipe and hose materials, including:
• PVC
• PEX
• Copper
• Steel
• Galvanized pipe
• Rubber hoses
• Garden hoses
• RV water hoses
• Suitable plastic and metal water lines
Before installation, make sure the pipe or hose is clean, dry, undamaged, and safe to heat.
When Not to Use This Product
This product is not recommended for:
• 120V AC household outlet connection
• 240V systems
• In-pipe installation
• Potable water internal installation
• Sewer or drain pipe internal heating
• Long-term submersion
• Roof and gutter de-icing
• High-power pipe heating projects requiring 120V cables
• Applications without proper fuse protection
• Systems where electrical connections may sit in water
• Battery systems that cannot support the required current
If you need standard household pipe freeze protection, choose a 120V pipe heat cable.
If you need internal pipe freeze protection, choose a YeloDeer in-pipe or in-water heating cable.
Specifications & Sizing
Product Specifications
Product Type: 12V DC self-regulating external heating cable
Application: Low-voltage pipe, hose, RV, camper, boat, and off-grid freeze protection
Voltage: 12V DC
Heating Output: 5W/ft at 50°F / 10°C
Cable Type: Self-regulating heating cable
Maximum Stable Cable Temperature: Approx. 140°F / 60°C
Power Cord Length: 3 ft
Installation Methods: Straight, spiral, or overlapping installation
Cut-to-Length: Yes, when properly sealed
End Seal: Waterproof end seal kit included
Included Accessories: 3 ft power cord, waterproof end seal kit, aluminum foil tape, and zip ties
Cable Structure: 5-layer design with bus wire, heating core, insulation, braid, and outer jacket
Available Lengths: 5 ft, 10 ft, 15 ft, and 20 ft
Recommended Use: 12V DC external pipe and hose freeze protection
How to Choose the Right Length
Choose the cable length based on the section of pipe or hose that needs freeze protection.
Before ordering, measure:
• Total exposed pipe or hose length
• Valves, elbows, fittings, or joints that need extra coverage
• Whether the cable will be installed straight or spiral-wrapped
• Whether insulation will be added after installation
• Distance to the 12V DC power source
• Battery capacity and expected runtime
• Whether extra cable needs to be cut and sealed
Straight Installation
Straight installation is suitable for many RV, hose, and small pipe freeze protection applications.
Run the cable along the pipe length and secure it with suitable tape or zip ties.
Spiral Installation
Spiral installation provides more heating coverage per foot of pipe.
It may be useful for:
• Very cold areas
• Wind-exposed pipes
• Valves and fittings
• Short vulnerable sections
• Hoses that freeze repeatedly
Spiral installation uses more cable length, so choose a longer cable if you plan to wrap around the pipe.
Overlapping Installation
Because this is a self-regulating cable, it can safely touch or overlap itself when installed properly.
This is helpful around valves, elbows, fittings, and short pipe sections.
Avoid tight knots, crushing, sharp bends, or fastening methods that may damage the cable jacket.
Power Draw and Battery Planning
This cable is rated at 5W/ft at 50°F / 10°C.
Approximate power draw by length:
• 5 ft cable: about 25W
• 10 ft cable: about 50W
• 15 ft cable: about 75W
• 20 ft cable: about 100W
Approximate current draw at 12V:
• 5 ft cable: about 2.1A
• 10 ft cable: about 4.2A
• 15 ft cable: about 6.3A
• 20 ft cable: about 8.3A
Actual power draw may change with temperature because the cable is self-regulating.
For battery-powered use, always confirm battery capacity, fuse size, wire gauge, and expected runtime before installation.
Can the Cable Be Cut?
Yes. This self-regulating cable can be cut to the needed length. After cutting, the cut end must be sealed with the included waterproof end seal kit. Do not leave a cut end unsealed.
Do not cut the power cord connection unless you understand the wiring requirements.
Do not power the cable until the end seal and electrical connections are installed correctly.
Installation & Accessories
Basic Installation Overview
YeloDeer 12V Self-Regulating Heating Cable is designed for external installation on pipes, hoses, and low-voltage water systems.
Typical installation steps:
- Confirm your power source is 12V DC.
- Measure the pipe or hose section that needs freeze protection.
- Clean and dry the pipe or hose surface.
- Lay the cable straight along the pipe or wrap it in a spiral pattern.
- Secure the cable with aluminum foil tape or zip ties.
- Keep the cable in contact with the pipe or hose surface.
- If cutting is needed, cut the heating cable to the desired length.
- Seal the cut end with the included waterproof end seal kit.
- Add pipe insulation for better freeze protection and energy efficiency.
- Connect the cable to a properly protected 12V DC power source.
- Use a fuse, switch, or thermostat if needed for safer and more controlled operation.
- Test the system before severe winter conditions.
Important Installation Notes
• Use only with 12V DC power.
• Do not connect directly to 120V AC household power.
• Install the cable externally on the pipe or hose.
• Do not insert the cable inside a pipe.
• Do not use for long-term submersion.
• Do not install on damaged or leaking pipes.
• Do not leave a cut end unsealed.
• Do not crush, sharply bend, or knot the cable.
• Do not use nails, screws, metal wire, or sharp fasteners.
• Protect all electrical connections from water, snow, and road spray.
• Use appropriate fuse protection for the circuit.
• Confirm wire gauge is suitable for the current and cable length.
• Disconnect power before cutting, wiring, or servicing the cable.
Using Pipe Insulation
For best freeze protection, cover the pipe and heating cable with suitable pipe insulation after installation.
Insulation helps:
• Reduce heat loss
• Improve freeze protection
• Lower battery power consumption
• Protect the cable from wind and weather
• Improve performance on exposed RV and outdoor pipes
Install the heating cable first, then apply insulation over the pipe and cable.
Using with RV or Battery Power
When used with RV or battery power, make sure:
• The power supply is 12V DC
• The circuit is fused
• The wire gauge is suitable
• The battery has enough capacity
• The cable is switched or controlled when not needed
• Connections are protected from moisture and vibration
• The cable is secured away from moving parts, sharp edges, and road debris
Using a Thermostat or Switch
A thermostat or manual switch is recommended for better control, especially in battery-powered systems.
A thermostat or switch can help:
• Reduce unnecessary battery drain
• Turn the cable off when not needed
• Improve seasonal operation
• Prevent accidental continuous operation
• Make RV and off-grid use easier to manage
Outdoor and Mobile Installation Reminder
For mobile applications such as RVs, campers, trailers, and boats, installation must account for vibration, movement, moisture, and abrasion.
Secure the cable carefully and inspect it regularly during winter use.
FAQ & Resources
Additional Product Questions
1. Is this a 12V or 120V heating cable?
This is a 12V DC heating cable. Do not connect it directly to a 120V AC household outlet. If you need standard household pipe heat tape, choose a 120V YeloDeer pipe heating cable.
2. Can I use this with an RV battery?
Yes. This cable is designed for 12V DC systems and may be used with RV batteries when the circuit is properly fused and the battery can support the current draw. Check total power draw and expected runtime before use.
3. Can I use this with a solar battery system?
Yes. It may be used with a 12V solar battery system if the battery, charge controller, wiring, and fuse protection are properly sized. Because heating cables can consume significant energy over time, calculate battery capacity carefully.
4. Does self-regulating mean it turns off by itself?
No. Self-regulating means the cable adjusts heat output based on temperature. It does not fully turn off by itself.
If connected to power, it may continue to draw current. For battery systems, use a switch or thermostat to avoid unnecessary power drain.
5. Do I need a thermostat?
A thermostat is not required, but it is recommended for better control and battery savings.
Without a thermostat, the cable may continue operating whenever connected to 12V power.
A thermostat or switch helps turn the cable off when freeze protection is not needed.
6. Can the cable be cut shorter?
Yes. The heating cable can be cut to length when properly sealed. After cutting, the cut end must be sealed with the included waterproof end seal kit. Do not leave a cut end unsealed.
7. Can the cable overlap itself?
Yes. Because it is self-regulating, the cable can touch or overlap itself when installed properly. Avoid tight knots, crushing, sharp bends, or damaging the outer jacket.
8. Can I use this on plastic pipes or hoses?
Yes. It can be installed externally on many suitable plastic pipes, metal pipes, RV hoses, garden hoses, and outdoor water lines.
Make sure the pipe or hose is clean, dry, undamaged, and safe to heat.
9. Can I use this inside a drinking water pipe?
No. This cable is for external installation only.
Do not insert it inside drinking water pipes, sewer pipes, drain pipes, tanks, or hoses.
For internal potable water applications, choose a dedicated in-pipe heating cable.
10. Can it be used on dry or empty pipes?
Yes. When installed properly, this self-regulating cable can be used on dry or empty pipes. It reaches a stable maximum temperature around 140°F / 60°C.
Do not install it on damaged or heat-sensitive surfaces without confirming suitability.
11. Can I use it outdoors?
Yes, but all electrical connections must be protected from moisture. The cable can be used in outdoor freeze protection applications, but power connections, splices, switches, and battery terminals must be kept dry and protected.
12. Can I use it for roof and gutter de-icing?
No. This product is designed for low-voltage pipe and hose freeze protection.
For roof, gutter, and ice dam prevention, choose a dedicated roof de-icing cable.
13. Can I use it for livestock or pet water systems?
Yes, it may be used externally on suitable water lines for poultry, livestock, or pet water systems.
Protect the cable from chewing, abrasion, standing water, sharp edges, and animal contact.
14. How do I estimate battery runtime?
Estimate total power first. For example, a 10 ft cable is about 50W at 50°F / 10°C. At 12V, that is about 4.2A. A 50Ah battery could theoretically run a 10 ft cable for about 12 hours, but real runtime depends on battery type, usable capacity, temperature, wiring loss, and actual cable output.
For reliable use, always oversize the battery and use a thermostat or switch.
15. What should I send if I need help choosing the right setup?
Please email yelodeer@yelodeer.com with:
• Pipe or hose length
• Pipe or hose diameter
• Application photos
• Whether it is for RV, boat, farm, outdoor pipe, or off-grid use
• Power source type
• Battery voltage and capacity
• Whether you plan straight or spiral installation
• Whether you need to cut the cable
• Whether insulation will be added
Our team can help review your application before you order.
Related Resources
For standard 120V pipe freeze protection, choose YeloDeer Self-Regulating Pipe Heat Tape with Thermostat.
For no-thermostat 120V plug-and-heat applications, choose YeloDeer Yellow Self-Regulating Pipe Heat Cable.
For custom 120V pipe heating projects, choose YeloDeer Bulk PGB Self-Regulating Pipe Heating Cable.
For internal pipe freeze protection, choose YeloDeer In-Pipe Heating Cable or In-Water Heating Cable.
For product selection help, contact yelodeer@yelodeer.com with photos and power details.
