Name: Food-Grade In-Pipe Heating Cable (CSA, 230 PSI, >3/4") | YeloDeer
Brand: YeloDeer
Price: 70.0 USD
Availability: InStock

Overview

Food-Grade In-Pipe Heating Cable for Water Pipe Freeze Protection

The YeloDeer In-Pipe Heating Cable is designed to help protect pressurized water supply lines from freezing in winter. Installed directly inside the pipe, this self-regulating heating cable provides freeze protection for cabins, well water lines, seasonal homes, farm water systems, outdoor plumbing, and other exposed or hard-to-insulate water lines.

Unlike external heat tape, an in-pipe heating cable delivers heat from inside the water line, making it a practical solution when the pipe is buried, exposed to extreme cold, or difficult to wrap from the outside.

Quick Fit Snapshot

In-Pipe Freeze Protection Installed inside the water pipe to help protect freeze-prone sections from within.

For Pressurized Water Lines Designed mainly for potable water pipes and pressurized water supply lines.

3/4 in and Larger Pipes Actual cable path must maintain at least 17mm / 0.67 in inner opening.

Cable Only or Kit Choose Cable Only for manual use or Kit for automatic temperature control.

Choose the Right Option

Cable Only Choose Cable Only if you already have a compatible controller, prefer manual operation, or only need the in-pipe heating cable itself.

Cable & Controller Kit Choose the Kit if you want automatic temperature control, easier winter operation, and improved energy efficiency for seasonal or long-term use.

Self-regulating does not mean the cable turns fully off by itself.

When used without a controller, the cable will continue to operate while plugged in. The self-regulating heating cable adjusts heat output based on surrounding temperature, but it does not fully shut itself off.

For easier winter operation, better energy control, and automatic temperature-based switching, use this cable with a compatible temperature controller, sold separately.

YeloDeer in-pipe heating cable cable only and controller kit option comparison

Key Benefits

Internal Pipe Heating Provides freeze protection from inside the pipe when external wrapping is difficult.

Food-Grade Jacket Designed for potable water pipe freeze protection when installed properly.

Self-Regulating Technology Adjusts heat output based on surrounding temperature, with more heat in colder areas.

GFCI Plug Protection Standard plug-in design includes GFCI protection for added electrical safety.

Custom Options Available Custom length and 120V / 240V options may be available for special projects.

Controller Kit Option Optional kit helps automate on/off operation based on temperature settings.

Best For

Pressurized Water Supply

Potable Water Pipes Water Supply Lines Well Water Lines Cabin Water Lines

Seasonal & Remote Properties

Seasonal Homes Lake Houses Remote Cabins Winter Plumbing

Farm & Outdoor Water

Farm Water Systems Livestock Water Outdoor Pipes Above-Ground Lines

Difficult-to-Wrap Pipes

Buried Pipes Hard-to-Insulate Lines Extreme Cold Areas Internal Cable Entry

Before You Order

Your pipe size and fittings provide at least 17mm / 0.67 in inner opening The cable can enter through a proper T-fitting, Y-fitting, or compatible adapter The pipe does not contain sharp 90-degree or 45-degree elbows that may block insertion You have measured the full pipe length that needs freeze protection You have confirmed whether Cable Only or Cable & Controller Kit is better Custom length, long runs, or 240V needs are confirmed before ordering Drain, sewer, sump, or wastewater uses have been checked for proper product fit The GFCI plug can connect to a properly protected outlet

Important Installation Notice: Do not force the cable through sharp elbows, blocked pipe paths, reduced fittings, or unknown internal routing.

Forcing the cable can damage the heating cable, restrict the pipe, or prevent proper freeze protection. Standard plug-in products should not be cut or shortened unless the product instructions specifically allow it.

For Drain, Sewer, Sump, or Wastewater Applications

For drain, sewer, sump, or wastewater applications, we recommend using a dedicated YeloDeer In-Drain Heating Cable instead.

Pressurized water lines and open-ended, low-pressure drainage systems have different installation requirements. A dedicated drain or sewer heating cable may provide a better fit and more cost-effective solution.

YeloDeer food-grade in-pipe heating cable for pressurized water pipe freeze protection YeloDeer in-pipe heating cable patented design information In-pipe heating cable installed inside water line for freeze protection Food-grade heating cable for potable water pipe internal freeze protection YeloDeer self-regulating in-pipe heating cable product details Pipe freeze protection heating cable with GFCI plug In-pipe heat cable for cabins wells farms and seasonal homes Self-regulating water pipe heating cable installation application In-pipe heating cable installation overview for water pipe freeze protection Fish tape assistance for long in-pipe heating cable installation

For more details on the differences between YeloDeer pipe heating solutions, read How to Choose the Right Heat Cable for Your Pipes.

Applications & Compatibility

Recommended Applications

This in-pipe heating cable is suitable for pressurized water pipe freeze protection and other water lines where internal cable installation is appropriate.

Pressurized Water Lines

Water Supply Lines Potable Water Pipes Well Water Lines Cabin Water Lines

Outdoor & Exposed Pipes

Outdoor Water Pipes Above-Ground Lines Insulated Water Lines Exposed Plumbing

Seasonal Properties

Lake Houses Seasonal Homes Remote Cabins Winterized Systems

Farm & Livestock Systems

Farm Water Systems Livestock Water Lines Rural Water Supply Hard-to-Wrap Lines

Pipe Compatibility

This product is designed for pipes 3/4 in and larger, but the actual fitting opening must be checked before installation.

Recommended Pipe Size	3/4 in and larger, depending on actual fitting inner diameter
Minimum Required Inner Opening	17mm / 0.67 in
Possible Entry Points	T-fitting, Y-fitting, or compatible adapter
Important Check	Some 3/4 in pipes or fittings may narrow at connectors, elbows, valves, or adapters

Check the actual inner opening before installation.

The cable path must maintain at least 17mm / 0.67 in inner diameter. Narrow connectors, elbows, valves, adapters, or restricted fittings may block insertion.

Not Recommended For

Sharp 90-degree or 45-degree elbows
Pipes with blocked or unknown internal routing
Pipes without a suitable cable entry point
Pipes smaller than the required minimum inner diameter
Applications where the cable may be forced through tight fittings or sharp turns
Drain, sewer, sump, or wastewater lines where a dedicated drain heating cable is a better fit

For Drain or Sewer Pipes

Although some customers ask about using in-pipe heat cable for drainage applications, pressurized water lines and drain or sewer lines have different requirements.

For open-ended, low-pressure, non-potable drain or wastewater systems, choose a dedicated YeloDeer In-Drain Heating Cable for a better fit and more cost-effective solution.

Specifications & Sizing

Key Specifications

Product Type	Self-regulating in-pipe heating cable
Application	Pressurized water pipe freeze protection
Standard Voltage	120V
Custom Voltage	120V / 240V available by custom order
Heat Output	3W/ft at 50°F
Maximum Stable Cable Temperature	60°C / 140°F
Pressure Rating	230 PSI max
Jacket	Food-grade fluoropolymer jacket
Certification	CSA certified
Electrical Protection	GFCI plug
Minimum Required Inner Opening	17mm / 0.67 in
Suitable Pipe Size	3/4 in and larger, depending on actual fitting ID
Available Lengths	Standard lengths and custom lengths available

How to Choose the Right Length

Measure the full length of the pipe section that needs freeze protection. The heating cable should cover the freeze-prone section from the entry point to the area where freezing is likely to occur.

Do not guess the pipe length Do not choose a much longer cable than needed Check the full cable path before ordering Confirm whether fittings, bends, or restricted sections may block insertion For long pipe runs, confirm whether fish tape or puller assistance is needed For custom layouts, send pipe length, pipe size, voltage requirement, and photos

When to Choose Custom

Select the “Custom” option if you need a non-standard length, 240V specification, long-distance pipe run, special project requirement, or help confirming length, voltage, or fitting compatibility.

After a custom order is placed, our team will contact you by email to confirm the required length, voltage, and installation details.

Installation & Accessories

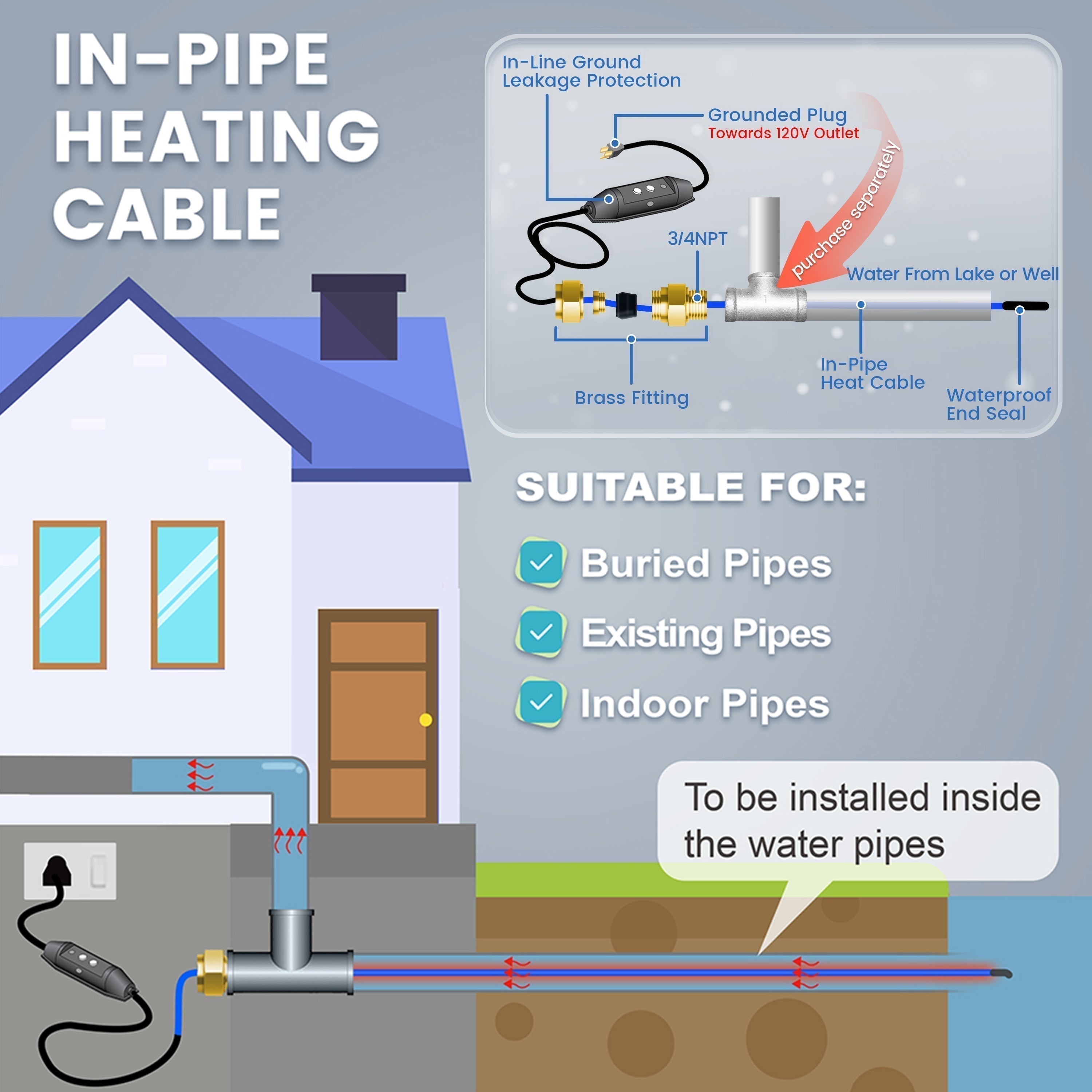

Installation Overview

This in-pipe heating cable is installed through a suitable pipe entry point, such as a T-fitting, Y-fitting, or compatible adapter. The cable is inserted into the water line to protect the pipe from freezing from the inside.

Basic Installation Steps

Identify the pipe section that needs freeze protection.
Shut off the water supply before installation.
Install a proper pipe entry fitting or adapter.
Confirm the minimum 17mm / 0.67 in inner opening.
Insert the heating cable into the pipe carefully.
Avoid forcing the cable through sharp bends or restricted fittings.
Connect the GFCI plug to a properly protected outlet.
If using the controller kit, place the sensor correctly and set the desired temperature range.

Important Installation Notes

Do Not Force Cable Do not force the cable through sharp elbows, restricted fittings, or unknown pipe paths.

Do Not Cut Standard Cable Do not cut or shorten a standard plug-in cable unless the product instructions specifically allow it.

Check Opening Size Confirm at least 17mm / 0.67 in inner opening throughout the cable path.

Use Pipe Insulation Insulate exposed pipe sections to improve freeze protection and reduce energy use.

Plan Long Runs For long pipe runs, fish tape or puller assistance may be required.

Ask Before Uncertain Layouts For uncertain layouts, contact YeloDeer before installation.

Electrical & Plumbing Safety Notice: Shut off the water supply before installation and keep electrical connections dry.

Use the GFCI plug only with a properly protected outlet. If plumbing or electrical work is outside your experience, consult a qualified professional.

Accessories and Kit Options

T-Fitting or Y-Fitting NPT Adapter Hose Barb Fitting Temperature Controller Fish Tape Pipe Insulation Compatible Clamps Connection Hardware

Cable Only vs Cable & Controller Kit

Cable Only Suitable when you already have a compatible controller or prefer to manage operation manually.

Cable & Controller Kit Recommended when you want automatic temperature control, easier winter operation, and better energy efficiency.

The controller helps turn the heating cable on and off based on temperature settings instead of leaving the cable powered continuously.

Without a controller, the cable will keep operating while plugged in.

FAQ & Resources

Frequently Asked Questions

Can this heating cable be installed inside a drinking water pipe?

Yes. This product is designed for pressurized water supply lines and uses a food-grade jacket suitable for potable water pipe freeze protection.

Do I need a T-fitting or adapter?

In most installations, yes. The cable needs a proper pipe entry point, such as a T-fitting, Y-fitting, or compatible adapter.

Please confirm your pipe size, fitting type, and actual inner opening before ordering.

What pipe size is required?

This product is designed for pipes 3/4 in and larger, but the most important requirement is the actual inner opening.

The cable path must maintain at least 17mm / 0.67 in inner diameter.

Can this cable pass through elbows?

It is not suitable for sharp 90-degree or 45-degree elbows.

Gradual bends may work, but the cable should never be forced through tight or restricted turns.

Can I cut the cable shorter?

For standard plug-in products, choose the correct length before purchase.

If you need a special length, select the Custom option or contact us before ordering.

Does this cable need a controller?

A controller is not strictly required, but it is highly recommended.

Without a controller, the cable will keep operating while plugged in. A controller helps reduce energy use and provides automatic temperature-based operation.

Does self-regulating mean the cable turns off by itself?

No. Self-regulating means the cable adjusts its heat output based on the surrounding temperature.

It reduces output in warmer areas and increases output in colder areas, but it does not fully shut off by itself. To fully stop heating, disconnect power or use a controller.

Can this be used for drain, sewer, or sump pipes?

For drain, sewer, sump, or wastewater applications, we recommend using a dedicated YeloDeer In-Drain Heating Cable.

It is better suited for open-ended, low-pressure, non-potable drainage systems.

Is it safe if the pipe is dry or empty?

The self-regulating cable reaches a stable maximum temperature and is designed to reduce overheating risk.

However, installation should always follow the product instructions and the cable should be used only in suitable applications.

What should I do if I am not sure which length or fitting I need?

Please contact us before ordering. Send your pipe size, pipe length, photos of the installation area, voltage requirement, and a brief description of your application.

Our team can help you choose the right option.

Need more help? Visit our full FAQ page or contact us at yelodeer@yelodeer.com.

Real Customer Installations

See how YeloDeer customers use our in-pipe heating cable in real winter pipe freeze protection projects. These installation photos show different pipe layouts, fittings, adapters, and water line setups, helping you better understand how the cable can be installed in real-world conditions.

Every pipe system is different. Before ordering or installing, confirm your pipe size, fitting type, cable entry point, and whether the cable path includes sharp elbows or restricted fittings.

If you are not sure which setup is right for your application, send photos of your pipe layout to yelodeer@yelodeer.com. Our team will help you review the installation details and choose the right option.

Photos are provided for reference only. Always follow the product manual and confirm compatibility with your pipe system before installation.

Real customer installation of YeloDeer in-pipe heating cable for pipe freeze protection Customer pipe layout with YeloDeer in-pipe heating cable and fittings

In-Pipe Heating Cables

Common Questions

This FAQ section is compiled from real customer inquiries.

If you have any other questions about this product, whether related to its design, installation, or application, feel free to ask directly in the QA section at the bottom of the page to get your answers.

You can also contact us via email at yelodeer@yelodeer.com.

We’re here to help!

Both are designed for pressurized supply lines, but they differ in how the heating cable enters the pipe, how they adapt to pipe sizes, and how they affect water flow:

Entry Method

Y Fitting: Uses a Y-pipe with hose barbs sized for 3/4 in, 1 in, and 1-1/4 in pipes. Beyond 1-1/4 in, it becomes unsuitable because the 1 in throat creates a bottleneck.
T Fitting: Requires an additional T-pipe fitting and an adapter. With the adapter, it can accommodate a wider range of pipe sizes, making it more flexible.

Effect on Flow

Y Fitting: Maintains a straight flow path; no change in the water direction.
T Fitting: Alters the flow direction into an L-shape, since the cable enters through the side branch of the T.

Best For

Y Fitting: Quick installs on small to mid-sized pipes (≤1-1/4 in) where keeping a straight flow is important.
T Fitting: Larger or mixed pipe systems where you need more flexibility in pipe sizes and installation points, even if the flow path changes.

No, this in-pipe heating cable is not suitable for sharp bends like 90-degree or 45-degree elbows. If your pipe has such abrupt turns, you'll need to replace those sections with smoother, sweeping bends to allow the cable to pass through easily.

Yes, it can be used, but we also offer heating cables specifically designed for sewage and wastewater pipes. The main difference between this in-pipe cable and the dedicated version is that the latter is not as pressure-resistant. However, it works perfectly for open-ended sewage pipes or drainage channels, and it’s also more cost-effective.

For more details, please check the link--In Drain Pipe Heating Cable.

No, you generally do not need to reset the GFCI (Ground Fault Circuit Interrupter) after a regular power outage. The GFCI only requires a manual reset if it detects a ground fault (leakage).

In the event of a standard power outage, the GFCI should not trip, and once the power is restored, the system should resume operation normally unless a ground fault is detected at that time.

No, the heating cable can be inserted without directional limitations. It works effectively in either direction, making it ideal for both water supply and drainage systems, no matter the direction of water flow.

Applicable for:

Supply Pipes: Pumping water from lakes or rivers.
Drainage Pipes: Removing water from inside your home.

Yes, this product is designed for use with pipes in 3/4-inch and above. However, please ensure there are no sections of your pipe, such as at fittings or connectors, where the inner diameter is reduced to less than 17mm (0.67 inches). If such restrictions exist, the heating cable may not fit properly.

Related Blogs on This Product

Have a Question?

Ask a Question

I have approximately 40 feet of 1 1/2 inch pipe running between two buildings. The water line connection is pretty straight. The pipe runs underground and recently froze due to extreme cold. The plumbers thawed it out but now we are looking for a solution to keep it from happening again. Will this line dramatically (or materially) reduce the volume of water going to the second building? Second, the cold spot is in the middle of the "run" between the two buildings. Can the sensor be placed in the middle and the run continue on to the end of the run? Third, is there a "smart" feature that I can log on to and see what the water temp is? Finally, is it one end only, meaning I don't need to do anything at the other end?

Dear Mr. Drapeau,
Thank you for your questions regarding our Food-Grade In-Pipe Heating Cable. We are happy to provide the following clarifications:
Regarding water flow volume: A 1 1/2 inch pipe will not dramatically or materially reduce the volume of water going to the second building. We have not received any customer feedback indicating flow restrictions with this pipe size when using our heating cable.
Regarding sensor placement: The sensor probe is designed to be placed at the coldest spot of the pipe run. It can absolutely be placed in the middle of the run between the two buildings, and the heating cable can continue to the end of the pipe as needed.
Regarding "smart" features: Our intelligent thermostat controls the heating cable based on the pipe or air temperature detected by the sensor, activating it when temperatures drop to a set threshold. While it effectively prevents freezing, it does not currently support direct logging or remote viewing of water temperature.
Regarding installation: Our heating cable is designed for single-end connection. This means all electrical connections and controls are at one end, and no additional work is required at the opposite end of the pipe run.
We hope this information helps you make an informed decision. Please let us know if you have any further questions or need additional details.
Best regards,
Hello can I leave my heating cable always plugged in Thank- you

Hello Floyd,
Thank you for reaching out.
You can keep the heating cable plugged in if you have anti-freezing requirements.
However, when the weather is warm and there is no need for pipe-freezing protection,
please unplug the cable to ensure safety and energy efficiency.
Thanks and regards,
Demi
What diameter is the heating cable?

The heating cable diameter is 10.7*5.0mm (0.42*0.2in).
How flexible is the inline heating cable. Can I feed it through a 1" 90 degree fitting

Thanks for your question！
No, this in-pipe heating cable is not designed to bend around sharp 90-degree or 45-degree elbow fittings. If your pipe has abrupt elbows, they need to be replaced with sections that create sweeping bends to allow the cable to pass smoothly. Important Notice: Forcing the cable through sharp elbows can damage the end seal, potentially causing water leakage. Many leakage issues result from improper installation, so please ensure careful installation.
At what temp does the line kick in and heat up

Thank you for your question! Since this product does not have a built-in thermostat, it begins heating as soon as it’s plugged in, regardless of the external temperature. However, due to its self-regulating feature, it adjusts the output power based on the surrounding temperature—when the temperature is higher, the output is lower, though it’s still in a heating state.
If you’d like more precise temperature control, we also offer a bundle that includes a Pipe Heat Tape Thermostat, allowing you to manually set the temperature at which it turns on and off.
Is the 6’ power cord in addition to the 15’ measurement of the actual heat cable, or included with the entire measurement(6’ power cord, 9’ heat cable)?

The length indicated on our product pages refers only to the length of the heating cable and does not include the power cord.
However, please note that for the in-pipe heating cable you inquired about, the power cord is actually 4 feet long.

Food-Grade In-Pipe Heating Cable (CSA, 230 PSI, >3/4") | YeloDeer
