Overview

WiFi Snow Melting Controller System for Roof, Gutter, Driveway, and Walkway De-Icing

The YeloDeer EFC1 is an automatic snow melting controller designed to operate compatible heating cable systems based on both outdoor temperature and moisture conditions. Choose the Ground Sensor Kit for paved surfaces or the Roof Sensor Kit for roof and gutter de-icing applications.

The controller supports 120V and 240V systems, WiFi monitoring through the Smart Life app, and automatic or forced heating control. The heating cable itself provides the snow-melting heat and is not included with the controller sensor kits.

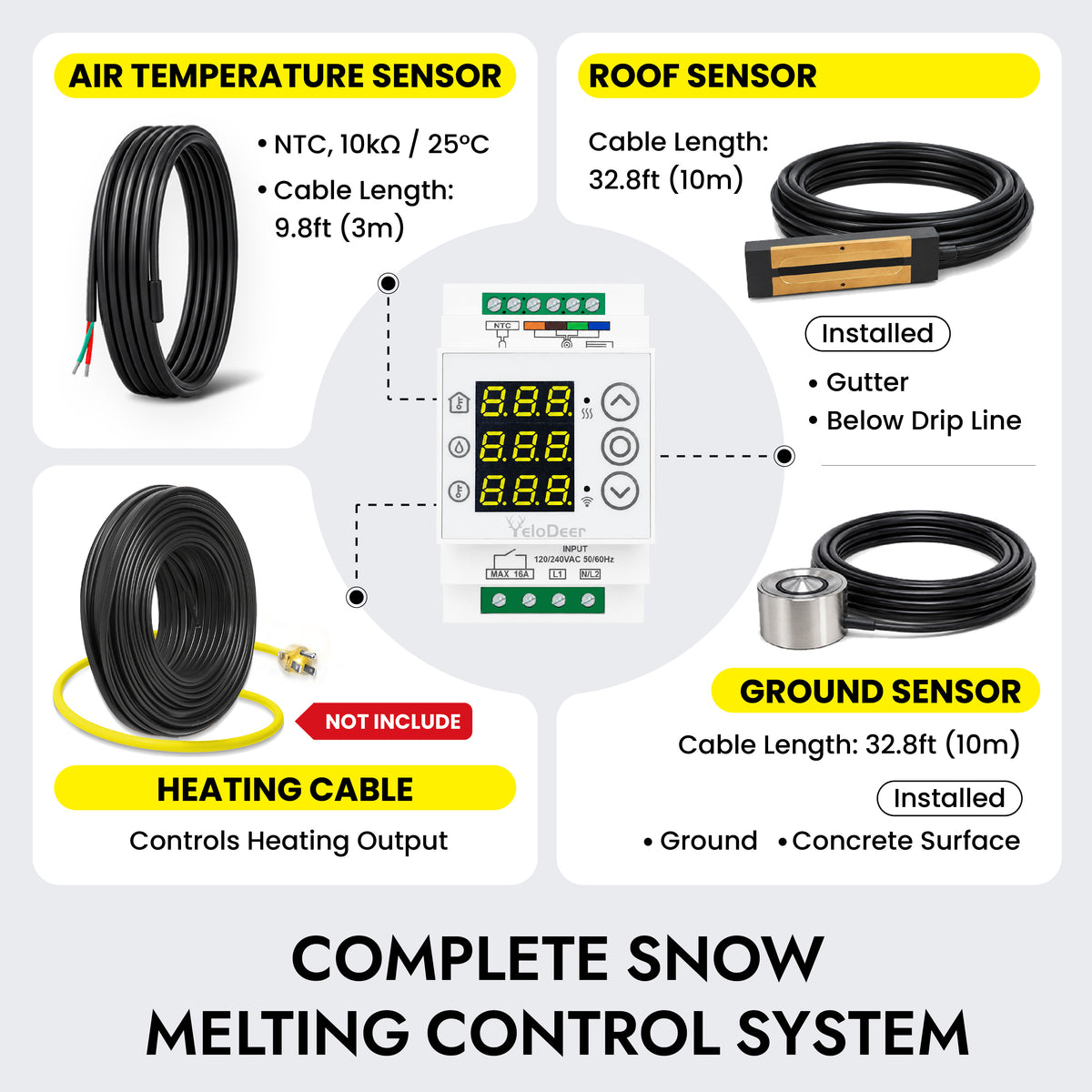

Quick Fit Snapshot

Ground or Roof Sensor Choose EFS-G for driveways and paved surfaces, or EFS-R for roofs, gutters, and downspouts.

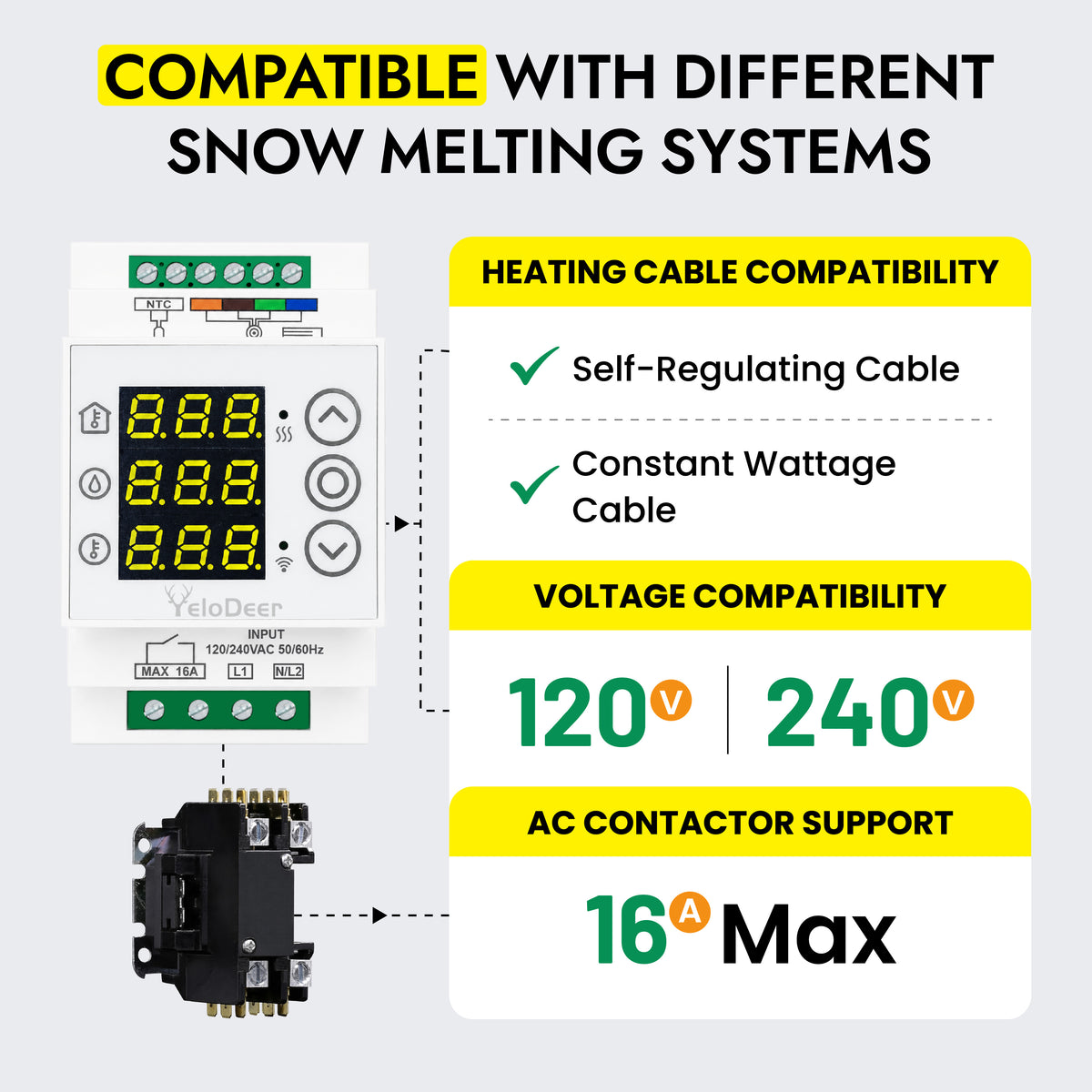

120V / 240V Compatible EFC1 accepts 85–265V AC, 50/60Hz power for compatible North American snow melting systems.

16A Max Relay Maximum controller relay current is 16A. For continuous operation, keeping the connected load at or below 11A is recommended.

Temperature + Moisture Automatic heating operates only when the selected temperature conditions and moisture detection requirements are both satisfied.

Key Benefits

Automatic Snow & Ice Control Helps operate compatible heating cables only when cold and wet conditions indicate de-icing may be needed.

Application-Specific Sensors Separate ground and roof sensor designs allow the system to match the way meltwater is detected in different locations.

WiFi Remote Monitoring Connect through a 2.4 GHz WiFi network and the Smart Life app for compatible remote monitoring and control functions.

Automatic or Forced Heating Use automatic dual-sensor operation for normal winter control or activate forced heating when temporary manual operation is required.

Choose the Right SKU

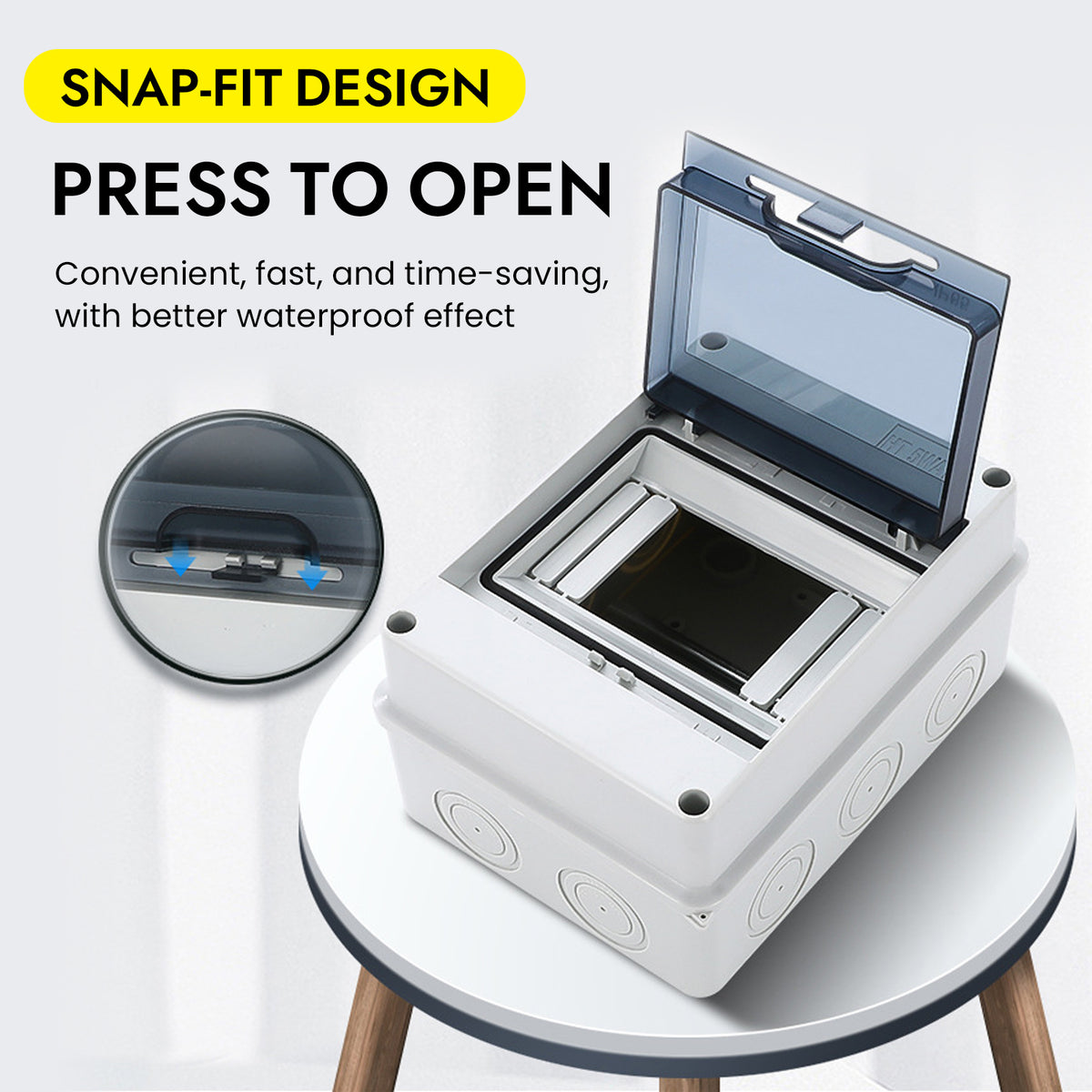

Weatherproof Enclosure Only

IP65 Enclosure DIN Rail Housing Outdoor Controller Protection

Choose this option when you need a weatherproof enclosure for an EFC1 controller installation. This SKU is the enclosure only and does not include the EFC1 controller or moisture sensors.

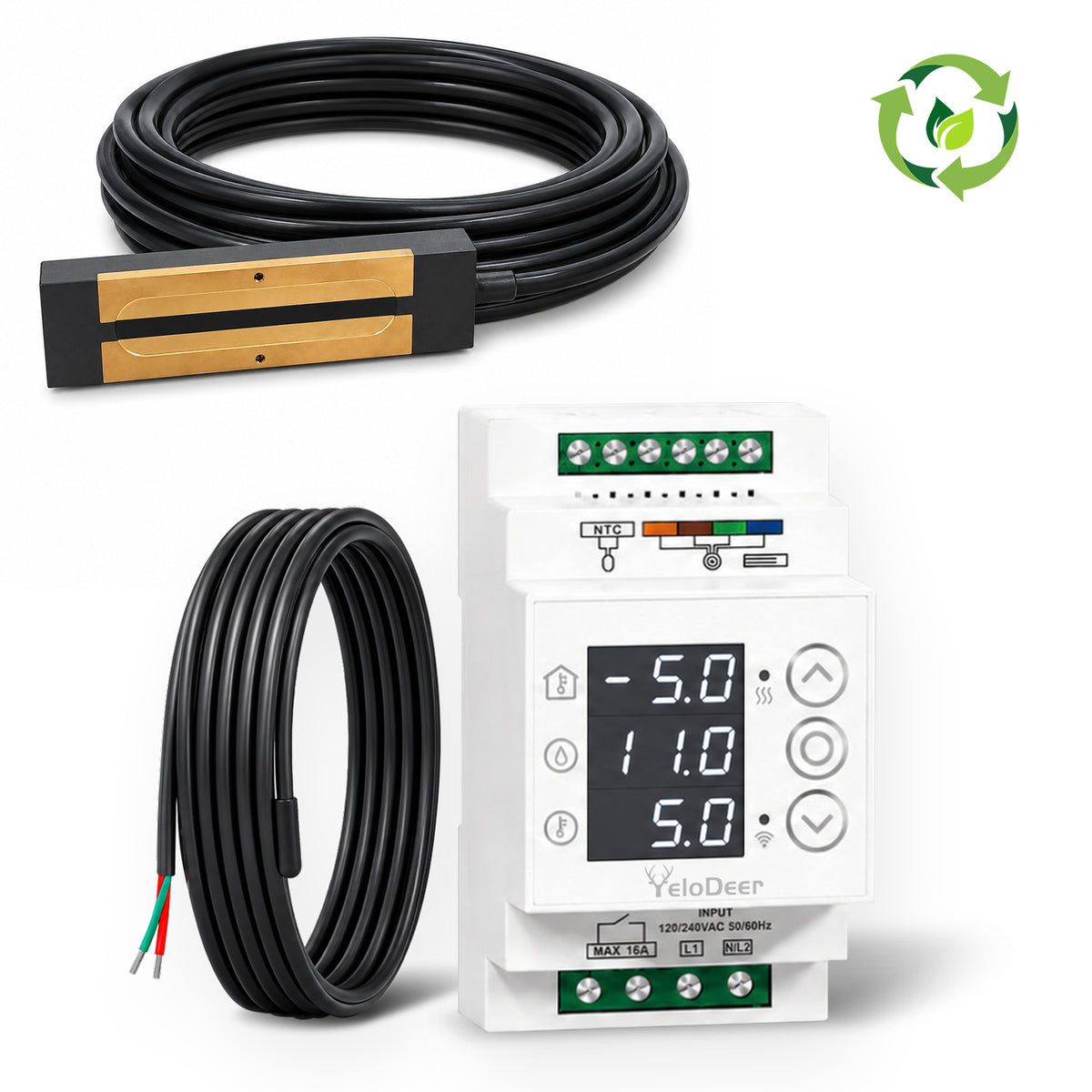

Roof Sensor Kit — EFC1 + EFS-R

Roof Edges Gutters Downspouts

Choose the EFS-R roof moisture sensor for roof and gutter de-icing systems where meltwater can reach the sensor surface.

Ground Sensor Kit — EFC1 + EFS-G

Driveways Walkways Porches & Ramps

Choose the EFS-G ground moisture sensor for paved snow melting areas. The sensor is designed for horizontal, flush installation in the protected surface.

Suitable For

Ground Snow Melting

Driveways Walkways Sidewalks Ramps Porches Loading Docks

Roof & Drainage De-Icing

Roof Edges Gutters Downspouts Roof Drainage Areas

Important Before Ordering

Confirm the SKU, electrical load, installation location, and heating cable system before ordering.

The Ground Sensor Kit and Roof Sensor Kit use the same EFC1 controller but different moisture sensors. Choose EFS-G for ground applications and EFS-R for roof or gutter applications.
The Weatherproof Enclosure SKU is the enclosure only. It does not replace the controller or sensor kit.
Heating cable is not included with the controller sensor kits. The EFC1 controls a compatible external snow melting or de-icing heating system.
The EFC1 controller is IP20. Install it indoors or inside a suitable weatherproof electrical enclosure when used in an outdoor installation.
Maximum relay current is 16A. For long-term continuous operation, keeping the connected load at or below 11A is recommended.
For loads above 16A, 3-phase systems, or systems above 265V, use a properly rated external AC contactor rather than routing the heating load directly through the controller.
The controller supports 85–265V AC, 50/60Hz. Confirm the heating cable voltage and circuit configuration before wiring.
WiFi control requires a stable 2.4 GHz network. A non-metallic enclosure is preferred when possible because a fully enclosed metal box may weaken the WiFi signal.

Electrical Safety

This controller must be installed and wired by a qualified electrician in accordance with applicable electrical requirements.

Disconnect power before installation, wiring, inspection, or maintenance. Appropriate circuit breaker and GFCI/leakage protection are strongly recommended. The heating cable ground conductor must be connected to the mains grounding system.

Do not install the controller near flammable materials, heat sources, or in hazardous or explosive atmospheres.

Choose Ground or Roof Sensor Kit Confirm 120V or 240V System Calculate Total Heating Load Keep Direct Relay Load Within Rating Plan Weatherproof Controller Protection Provide Required Circuit Protection Confirm Sensor Installation Location Confirm Stable 2.4 GHz WiFi if App Control Is Needed

Related Roof De-Icing Products

Building a roof or gutter de-icing system? Explore YeloDeer Roof & Gutter De-Icing Cables.

Applications

Ground Sensor Applications — EFS-G

The EFS-G Ground Sensor Kit is designed for outdoor paved areas where the moisture sensor can be installed horizontally in the snow melting surface and exposed to representative meltwater conditions.

Residential Ground Areas

Driveways Walkways Sidewalks Porches

Access & Traffic Areas

Ramps Stairs Loading Docks Outdoor Paved Areas

Roof Sensor Applications — EFS-R

The EFS-R Roof Sensor Kit is designed for roof and drainage applications where melting snow or ice water can reach the moisture-sensing surface.

Roof De-Icing

Roof Edges Ice-Prone Areas Roof Drainage Paths

Gutter Freeze Protection

Gutters Downspouts Meltwater Paths

Who This System Is For

Homeowners For automatic control of compatible residential driveway, walkway, roof, and gutter snow melting systems.

Property Managers For seasonal snow and ice control around residential, rental, and small commercial properties.

Contractors & Electricians For DIN-rail snow melting control systems requiring temperature and moisture-based activation.

DIY Project Planning Suitable for experienced users planning a snow melting system, while electrical installation and wiring must be completed by a qualified electrician.

Applications to Avoid

Recommended Use the controller with a properly designed outdoor snow melting or roof de-icing heating system where temperature and meltwater conditions can be monitored correctly.

Do Not Use Do not install the controller in hazardous or explosive atmospheres, near flammable materials or heat sources, or with electrical loads outside the controller rating unless a properly rated external contactor is used.

The system detects water, not snow directly. Snow and ice are poor electrical conductors, so the moisture sensor uses its built-in heater to help melt snow or ice on the sensor surface before moisture is detected.

Specifications

EFC1 Controller Specifications

Model	EFC1
Product Type	WiFi snow melting and de-icing controller
Input Voltage	85–265V AC, 50/60Hz
Typical North American Systems	120V or 240V AC
Maximum Relay Current	16A
Recommended Continuous Load	11A or less for long-term continuous operation
Standby Power	2W
Relay Type	AC-1
Mounting	35 mm DIN rail
Controller IP Rating	IP20
Maximum Terminal Wire Size	2.5 mm² / 13 AWG
Controller Dimensions	3.54 × 2.09 × 2.56 in / 90 × 53 × 65 mm
Ambient Temperature	32–113°F / 0–45°C
Storage Temperature	14–122°F / -10–50°C
Air Temperature Sensor	NTC, 10 kΩ at 77°F / 25°C
Air Sensor Cable Length	9.8 ft / 3 m
Control Logic	Outdoor temperature + moisture detection
WiFi	2.4 GHz WiFi; Smart Life app compatible
Operating Modes	Automatic Mode and Forced Heating Mode
Warranty	1-year limited warranty for product quality-related issues

Moisture Sensor Specifications

Specification	EFS-G Ground Sensor	EFS-R Roof Sensor
Recommended Application	Driveways, walkways, ramps, porches, paved snow melting areas	Roof edges, gutters, downspouts, roof drainage areas
Sensor Cable Length	32.8 ft / 10 m	32.8 ft / 10 m
Temperature Sensor	NTC, 10 kΩ at 77°F / 25°C	NTC, 10 kΩ at 77°F / 25°C
Internal Sensor Heater	5W	5W
IP Rating	IP68	IP68
Ambient Temperature	-58–158°F / -50–70°C	-58–158°F / -50–70°C
Measured Temperature Range	-22–167°F / -30–75°C	-22–167°F / -30–75°C
Operating Temperature	-58–158°F / -50–70°C	-58–158°F / -50–70°C
Dimensions	2.36 × 2.36 × 1.42 in / 60 × 60 × 36 mm	4.72 × 1.18 × 0.59 in / 120 × 30 × 15 mm
Weight	26.74 oz / 758 g	16.68 oz / 473 g

About the 5W sensor heater: The internal heater inside the EFS-G and EFS-R moisture sensors is used only to melt snow or ice on the sensor surface so moisture can be detected. It is not designed to melt snow across the driveway, roof, gutter, or other protected area.

Advanced Control Functions

Function	Default	Setting Range
F0 — Temperature Unit	°F	°F / °C
F1 — Drying Delay Time	2 hours	0.5–9 hours
F2 — Air Temperature Calibration	0°F / 0°C	±9°F / ±5°C
F3 — Moisture Detection Threshold	200	10–990
F4 — Maximum Heating Alarm Time	36 hours	1–240 hours
F5 — Temperature Hysteresis	1°F / 1°C	1–18°F / 0.1–10°C
F6 — Total Heating Hours	View only	View only
F7 — Heating Cycle Counter	View only	View only
F8 — Software Version	View only	View only
F9 — Factory Reset	No	No / Reset

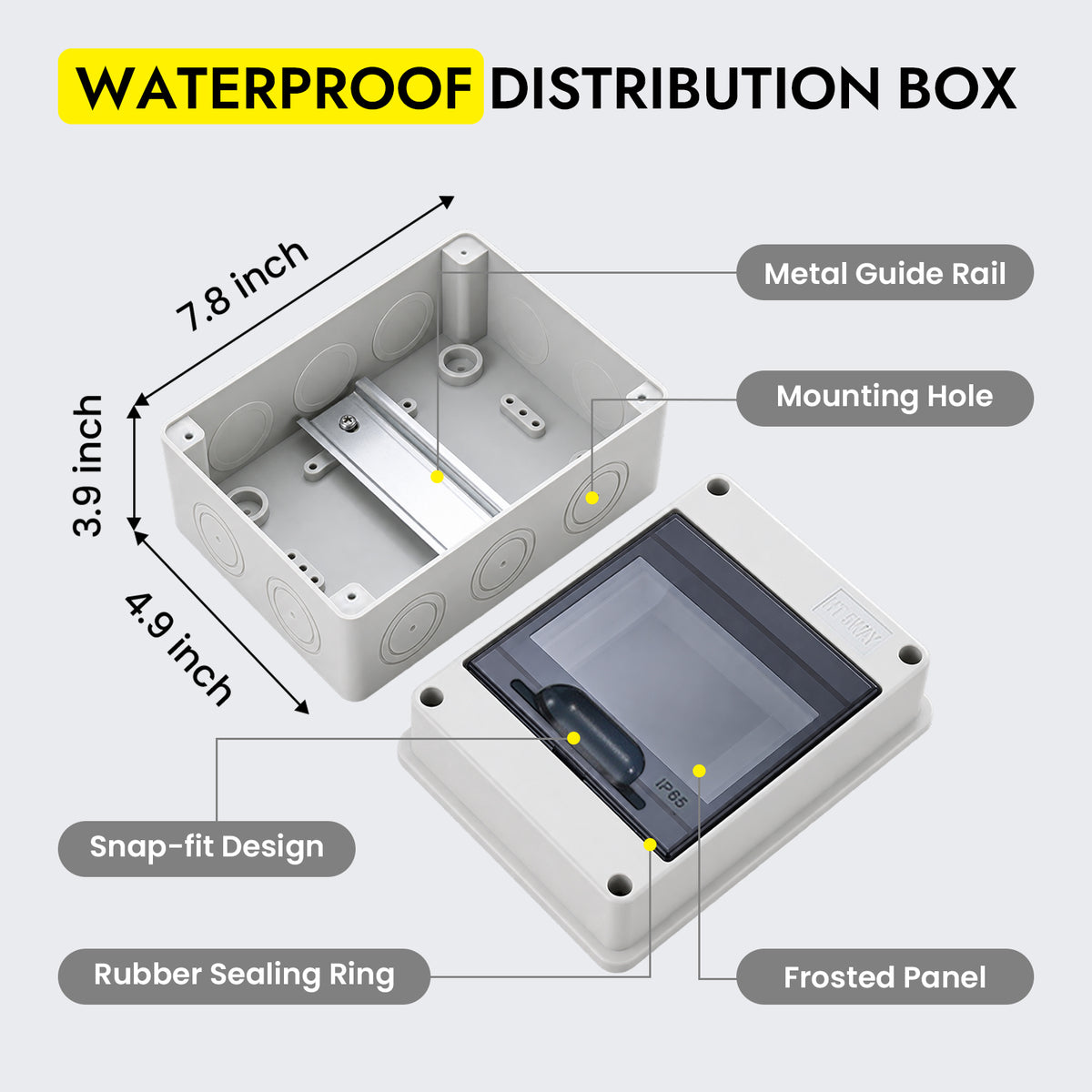

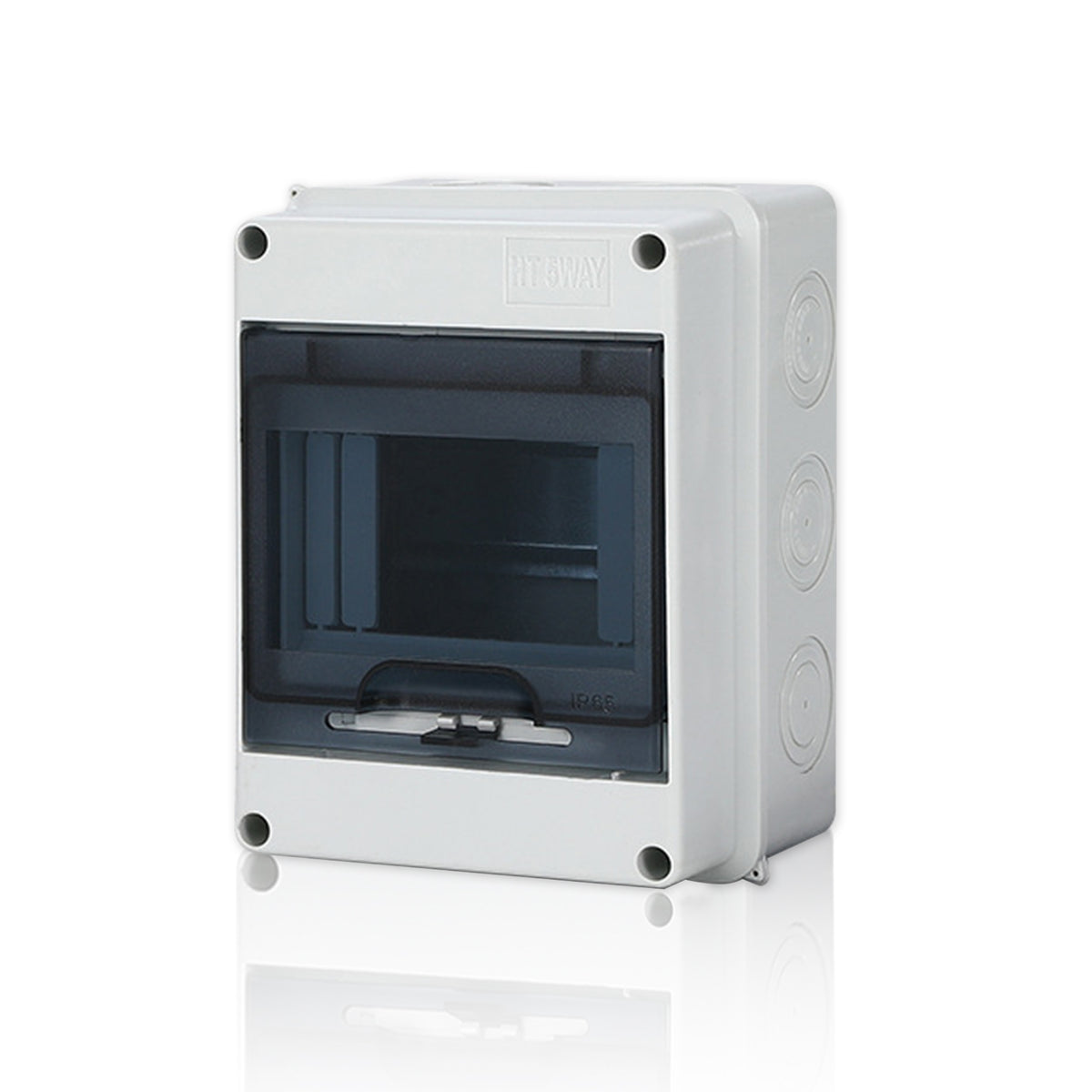

Weatherproof Enclosure SKU

Product Type	Weatherproof DIN rail controller enclosure
IP Rating	IP65
Primary Use	Protecting the EFC1 controller in suitable outdoor installations
Cover	Transparent access window
Included Controller	No — enclosure SKU only
Included Moisture Sensor	No — enclosure SKU only

Installation

Installation Overview

The EFC1 is a DIN-rail electrical controller and must be installed and wired by a qualified electrician. The following information is intended as a pre-installation overview rather than a replacement for the complete instruction manual.

Select the correct EFS-G Ground Sensor or EFS-R Roof Sensor kit for the application.
Confirm supply voltage, heating cable voltage, total current, circuit protection, and whether an external contactor is required.
Install the EFC1 indoors or inside a suitable weatherproof electrical enclosure.
Install the air temperature sensor outdoors in a shaded location away from direct sunlight, rain, and snow.
Install the selected moisture sensor where representative meltwater can reach the sensor surface.
Complete power, load, grounding, and sensor wiring according to the wiring diagram in the instruction manual.
Restore power, configure the operating temperature range and moisture settings, and test system operation before winter use.

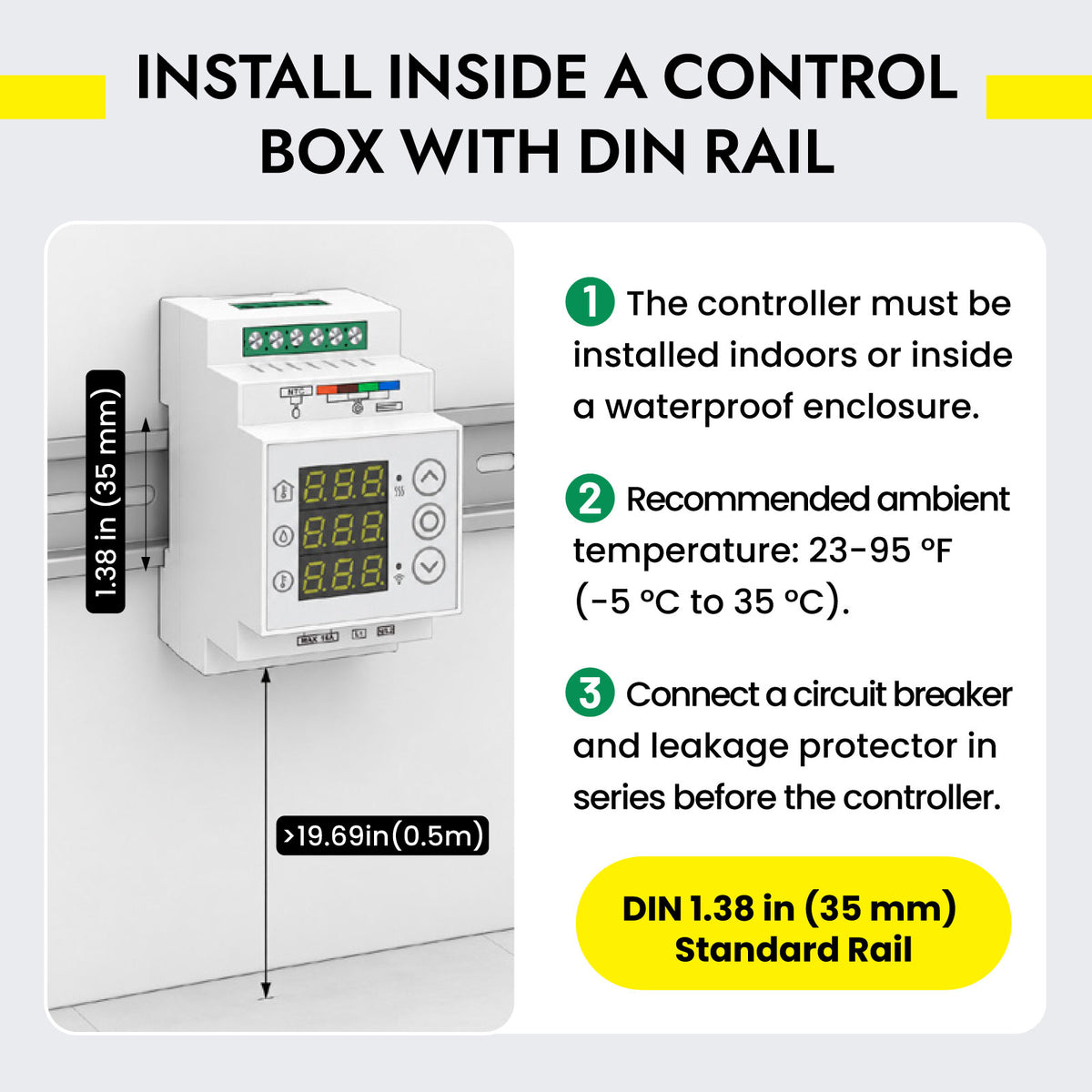

Controller Installation

DIN Rail Mounting Mount the EFC1 on a standard 35 mm DIN rail.

Protect the Controller The EFC1 is IP20 and must be installed indoors or inside a suitable weatherproof electrical enclosure.

Mount Above Ground The manual specifies installing the controller more than 19.7 in / 0.5 m above ground.

Recommended Installation Temperature Install in an environment approximately 23–95°F / -5–35°C when possible.

Add Circuit Protection Install appropriate circuit breaker and leakage/GFCI protection in series with the controller.

Ground the Heating System The heating cable ground conductor must be connected to the mains grounding system.

Air Temperature Sensor Placement

Recommended Install the air temperature sensor in a shaded outdoor location protected from direct sunlight, rain, and snow. Under the eaves is recommended when available.

Avoid Do not route the air sensor cable alongside power wiring unless appropriate shielding is used, because electrical interference can affect temperature readings.

EFS-G Ground Sensor Installation

Install Horizontally The moisture sensor must be placed horizontally with its sensing surface facing upward, even when the surrounding paved area is sloped.

Keep the Top Flush Install on a solid concrete base with the sensor surface flush with the finished ground surface.

Position Between Heating Cables Keep the sensor at least 0.8 in / 2 cm away from each adjacent heating cable.

Stay Away From the Edge Keep the sensor at least approximately 3.3 ft / 1 m from the edge of the snow melting area.

Choose a Representative Wet Area Install in a low, wet, shaded area where meltwater conditions represent the snow melting surface.

Seal Around the Sensor Seal gaps so meltwater flows over the sensing surface rather than draining into gaps around the sensor.

For asphalt installations, replace the normal protective conduit with metal conduit and do not install the EFS-G sensor before paving. Protect sensor wiring and follow the complete installation instructions.

EFS-R Roof Sensor Placement

Install the EFS-R in a roof, gutter, or drainage location where melting snow or ice water can reliably reach the moisture-sensing surface. Keep the sensor secured, unobstructed, and accessible for seasonal inspection and cleaning.

Load Wiring

The EFC1 LOAD terminals function as switching contacts and do not independently supply power to the heating cable.

Follow the 120V or 240V wiring diagram supplied with the controller. For loads above 16A, 3-phase systems, or supply voltages above 265V, use a properly rated external AC contactor.

WiFi Installation Notes

2.4 GHz WiFi Only The controller requires a stable 2.4 GHz WiFi network for Smart Life app connectivity.

Check Signal Before Final Mounting Confirm WiFi performance at the controller location before completing the enclosure installation.

Prefer Non-Metallic Enclosures A plastic or other non-metallic enclosure is recommended when possible for more reliable WiFi communication.

Avoid Fully Enclosed Metal Boxes A metal enclosure may weaken or block WiFi. Verify signal strength before final installation if a metal enclosure must be used.

For additional installation resources, visit the YeloDeer Installation Guide.

FAQ

Which SKU should I choose?

Choose the EFC1 + EFS-G Ground Sensor Kit for driveways, walkways, sidewalks, porches, ramps, loading docks, and similar paved snow melting surfaces.

Choose the EFC1 + EFS-R Roof Sensor Kit for roof edges, gutters, downspouts, and roof drainage de-icing systems.

Choose the Weatherproof Enclosure only when you need an enclosure for the controller. The enclosure SKU does not include the EFC1 controller or moisture sensor.

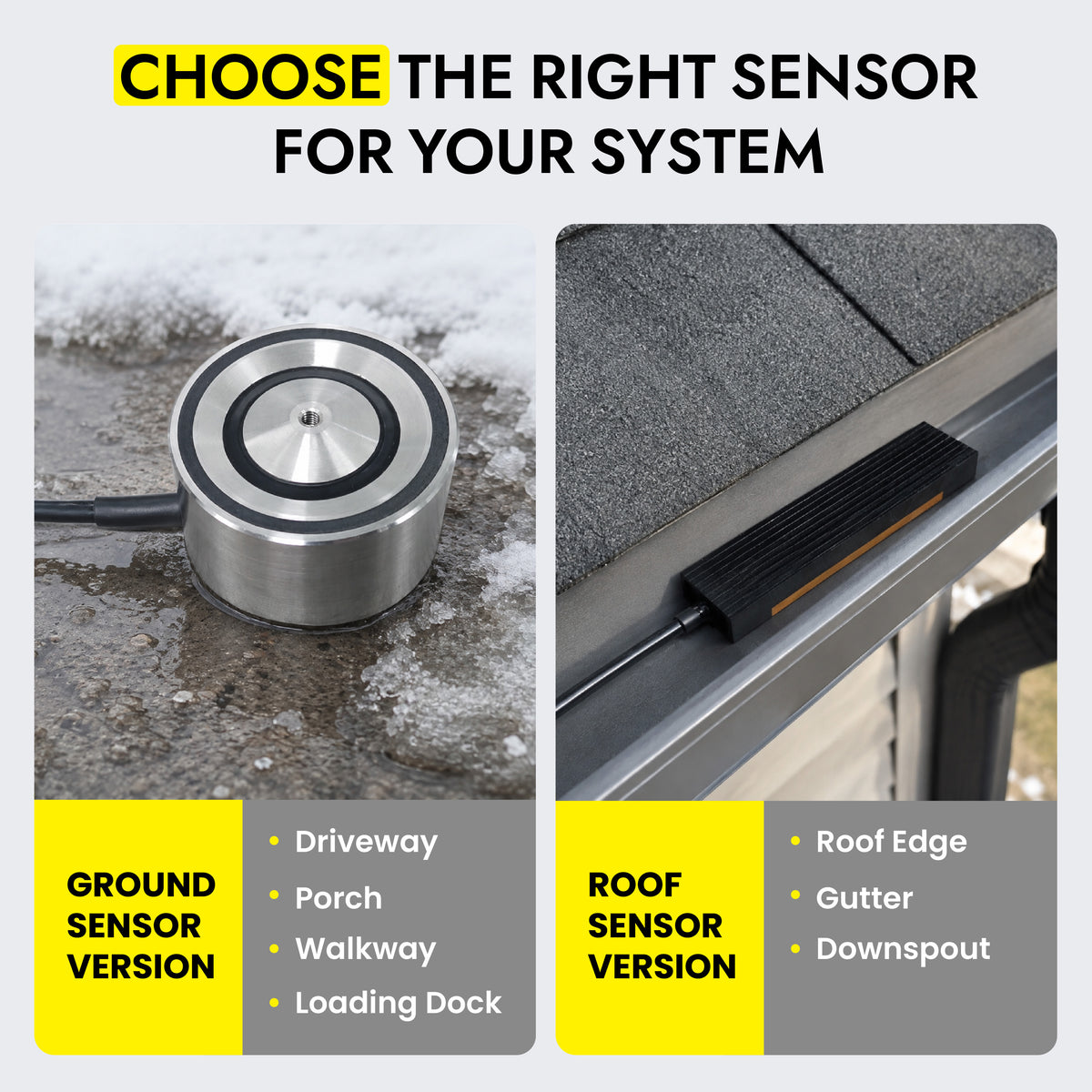

What is the difference between the EFS-G and EFS-R sensors?

Both work with the same EFC1 controller and use moisture detection with an internal 5W sensor heater.

The EFS-G is a round ground sensor designed for horizontal, flush installation in paved snow melting surfaces. The EFS-R is a lower-profile roof sensor designed for roof, gutter, and downspout applications.

Does the controller detect snow directly?

No. The system detects water on the moisture sensor surface rather than snow itself.

Because snow and ice are poor electrical conductors, the moisture sensor uses its built-in heater to help melt snow or ice on the sensing surface. Once water is detected and the outdoor temperature is within the selected operating range, automatic heating can begin.

Why might the system not start immediately when snowfall begins?

The sensor may need time to melt snow or ice on its surface into detectable water. This is normal for the moisture-detection method used by the system.

The controller also operates only when the outdoor temperature is within the configured operating range.

Can I use the EFC1 with both 120V and 240V snow melting systems?

Yes. The EFC1 accepts 85–265V AC, 50/60Hz input and can be wired for compatible 120V or 240V systems.

Always confirm the heating cable voltage, circuit configuration, wiring method, grounding, and load before installation.

Can the controller power my heating cable directly?

The controller relay is rated for a maximum of 16A. For long-term continuous operation, keeping the direct connected load at or below 11A is recommended.

For loads above 16A, 3-phase systems, or systems above 265V, the EFC1 should control a properly rated external AC contactor rather than carry the full heating load.

Can the EFC1 controller be installed outdoors?

The EFC1 controller itself is rated IP20 and should not be directly exposed to outdoor weather.

Install it indoors or inside a suitable weatherproof electrical enclosure. For WiFi installations, a non-metallic enclosure is preferred when possible because metal can reduce WiFi signal strength.

What WiFi network does the controller require?

The EFC1 uses a 2.4 GHz WiFi network and supports remote control through the Smart Life app.

Check WiFi signal strength at the final installation location before completing the enclosure installation.

Guides

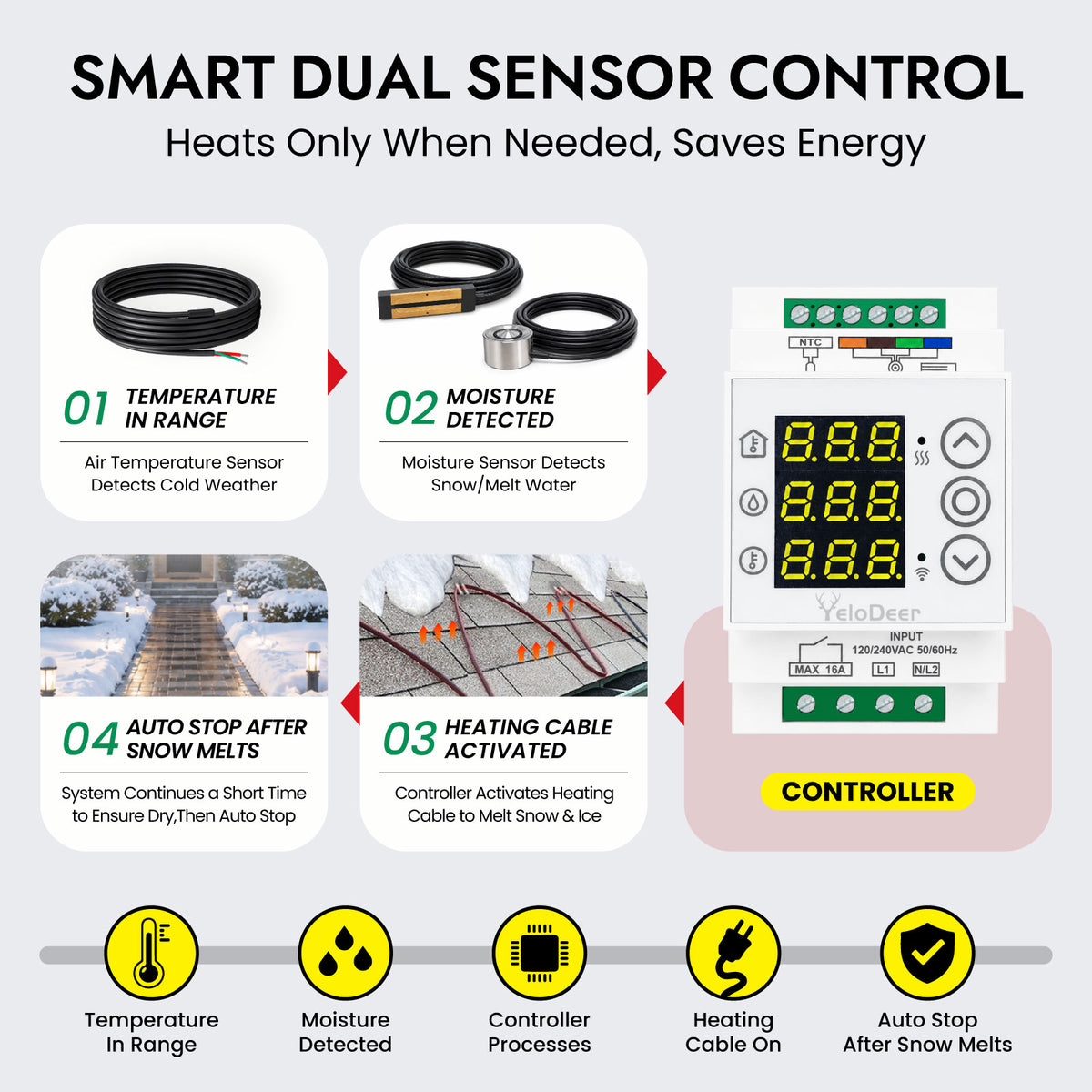

How Automatic Mode Works

1. Monitor Outdoor Temperature The controller continuously checks outdoor air temperature.

2. Monitor Moisture When temperature enters the selected operating range, the system begins monitoring the moisture sensor.

3. Start Heating When water is detected while temperature conditions are satisfied, the controller activates the connected heating system.

4. Continue Through Drying Delay After moisture is no longer detected, heating continues for the preset drying-delay period before shutting off automatically.

Temperature Range Logic

Above Upper Limit Conditions are considered too warm for normal snow or ice risk, so moisture monitoring does not operate.

Between Upper & Lower Limits The system monitors moisture and can activate heating when water is detected.

Below Lower Limit The controller stops automatic moisture monitoring because conditions may be too cold for effective melting or drainage.

Example from the manual: with an upper limit of 41°F / 5°C and a lower limit of 14°F / -10°C, moisture monitoring operates while outdoor temperature is between those limits.

Forced Heating Mode

Forced Heating Mode allows the connected heating system to operate continuously for a selected period without checking the normal temperature and moisture activation conditions.

Typical Uses

Emergency De-Icing System Testing Pre-Heating Drying Wet Surfaces

Forced Heating bypasses the normal automatic detection logic. Use it only when necessary and monitor the connected heating system appropriately.

Before Each Winter Season

Inspect All Wiring Connections Inspect Heating Cable for Visible Damage Check GFCI / Leakage Protection Clean the Moisture Sensor Surface Remove Leaves, Stones, Dirt, and Debris Confirm Meltwater Can Drain Away Check Sensor Placement Run a Short Test Before the First Snowfall

Sensor Care

Keep the Surface Clean Leaves, dirt, stones, ice blockage, or other debris can interfere with moisture detection and may trigger abnormal-operation alarms.

Maintain Drainage Water must be able to reach and leave the sensing surface normally. Standing water or poor drainage can affect system operation.

Inspect After Severe Weather Check the sensor and surrounding area after heavy snowfall, ice accumulation, maintenance work, or unusual drainage conditions.

Check Before Replacing Parts If abnormal moisture detection occurs, first inspect sensor cleanliness, drainage, wiring, and physical condition.

System Planning Checklist

Select EFS-G for Ground or EFS-R for Roof Confirm Heating Cable Voltage Calculate Total System Current Determine Whether a Contactor Is Required Plan Controller Enclosure Location Plan Air Temperature Sensor Location Plan Moisture Sensor Location Provide Circuit Breaker and Ground-Fault Protection Verify Grounding Check 2.4 GHz WiFi Signal if App Control Is Needed Test Automatic Operation Inspect the System Before Each Winter Season

Need Installation Help?

See the YeloDeer Installation Guide for additional installation resources. For project-specific questions, contact yelodeer@yelodeer.com with your supply voltage, heating cable specifications, total load, application type, wiring plan, and installation photos.
