In-Pipe Freeze Protection for Condensate Drain Lines, Furnace Drains & Small Non-Pressurized Drain Lines
YeloDeer DrainGuard is an in-pipe heating cable kit designed to help protect small, non-pressurized drain lines from freezing. It is especially useful for HVAC condensate drains, high-efficiency furnace drain lines, condensing water heater or boiler drains, ice maker drains, humidifier drains, dehumidifier drains, and other low-flow drain applications that may freeze in cold weather.
Unlike external heat tape that warms the outside of the pipe first, DrainGuard places a self-regulating heating cable directly inside the drain line through a dedicated PVC Y-fitting and rubber sealing assembly. This helps bring heat closer to where ice forms, helping keep the actual drainage path open during freezing conditions.
This kit is designed for non-pressurized drain applications only. It is not intended for pressurized water supply lines, potable drinking water lines, PEX supply lines, or sealed water systems carrying internal water pressure.
Quick Fit Snapshot
Condensate Drain Protection Designed for HVAC condensate drains, furnace drains, boiler drains, ice maker drains, and similar small drain lines.

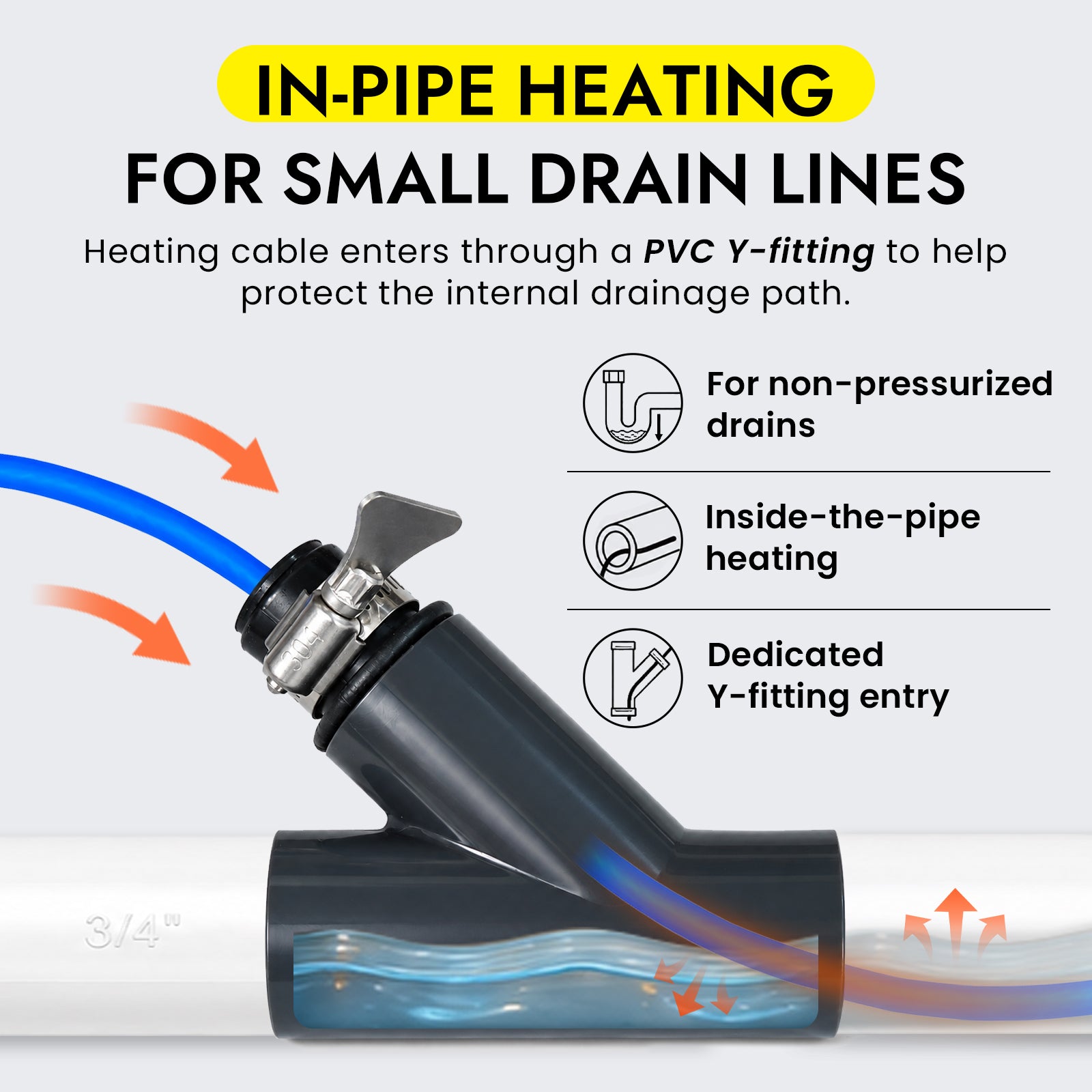

In-Pipe Heating Design The heating cable is inserted into the drain line to help protect the internal flow path directly.
3/4" Standard, 1/2" Adaptable Designed for 3/4" drain lines and adaptable to 1/2" drain lines using the included components.
Non-Pressurized Drains Only Not for pressurized plumbing, potable water supply, or sealed water lines carrying internal pressure.
Key Benefits
Helps Prevent Frozen Drain Lines Helps reduce ice buildup and drainage blockage in small low-flow drain lines during winter.
Direct Internal Heat Places heat inside the drain line, closer to the water path where ice commonly forms.
Better for Hard-to-Wrap Areas Useful where drain lines pass through walls, floors, crawl spaces, garages, basements, tight corners, or partially buried sections.
Self-Regulating Technology Automatically adjusts heat output as surrounding temperature changes for reliable winter operation.
CSA-Certified Heating Cable Uses a CSA-certified self-regulating heating cable for residential and light commercial drain freeze protection.
Fluoropolymer Outer Jacket Durable cable jacket helps resist moisture, corrosion, and damp drain-line environments.
Best For
HVAC & Furnace Drains
HVAC Condensate Furnace Drains Heat Pump Condensate Utility Drains
Condensing Equipment
Condensing Water Heaters Boiler Drains Equipment Drain Lines Low-Flow Drainage
Small Appliance Drains
Ice Maker Drains Humidifier Drains Dehumidifier Drains Small Drain Lines
Cold-Exposure Areas
Basements Garages Crawl Spaces Exterior Walls Unheated Rooms
Important Before You Order
This product is for small, non-pressurized drain lines only.
DrainGuard is not designed for pressurized water lines, potable drinking water lines, PEX supply lines, main household water lines, or any pipe carrying internal water pressure.
If you need freeze protection for a pressurized potable water line, choose YeloDeer Standard In-Pipe Heating Cable or YeloDeer Y-Fitting In-Pipe Heating Cable instead.
Your drain line is non-pressurized Your pipe size is 3/4" or 1/2" The pipe is PVC or ABS drain pipe The drain line is not already blocked or frozen solid You can cut and reconnect a short section of pipe You can use the correct primer and solvent cement The outlet is a grounded 120V AC outlet Outdoor electrical connections can be protected from weather
Self-Regulating Does Not Mean Auto-Off
This cable automatically adjusts heat output based on surrounding temperature. It produces more heat in colder conditions and reduces output as temperatures rise.
However, self-regulating does not mean the cable turns itself completely off. To stop heating completely, unplug the cable or use a compatible thermostat controller.
For automatic seasonal operation and energy savings, use this product with a YeloDeer Pipe Heat Tape Thermostat, sold separately.
Freeze Prevention, Not Emergency Thawing
DrainGuard is designed for freeze prevention.
If your drain line is already frozen, blocked, leaking, or damaged, thaw and inspect the line first. Do not force the heating cable into a blocked or unknown pipe route.
Recommended Applications
DrainGuard is designed for small, non-pressurized drain lines where freezing may block drainage and cause equipment shutdown, water backup, or repeated winter service issues.
HVAC Condensate Drain Lines
Heat Pumps Air Handlers Attic Condensate Utility Rooms
High-Efficiency Furnace Drains
Condensing Furnaces Furnace Drain Pipes Exterior Wall Exits Garage Runs
Condensing Water Heater & Boiler Drains
Boiler Condensate Water Heater Drains Basement Drains Cold Utility Areas
Small Low-Flow Drain Lines
Ice Maker Drains Humidifier Drains Dehumidifier Drains Appliance Drain Lines
Pipe Compatibility
The standard kit is designed for 3/4" drain lines. It can also be adapted to 1/2" drain lines using the included adapter components.
3/4" PVC Drain Pipe 1/2" PVC Drain Pipe 3/4" ABS Drain Pipe 1/2" ABS Drain Pipe ASTM/NPS Drain Pipe Non-Pressurized Drain Lines
The included pipe fittings are PVC. When connecting the supplied PVC components to ABS pipe, use approved PVC-to-ABS transition cement where required by local code and cement manufacturer instructions.
Flexible Drain Hose Applications
Flexible drain hose installations may be possible in some non-pressurized drain applications, but they require a properly sized hose barb-to-PVC adapter and clamp.
Hose barb adapters and clamps are not included.
Confirm hose size, fitting compatibility, and non-pressurized drain use before installation. Do not use this product on pressurized flexible water lines.
When Not to Use This Product
- Pressurized water supply lines
- Potable drinking water lines
- PEX water supply pipes under pressure
- Main household water lines
- Fuel, chemical, or industrial process lines
- Drain lines that are already blocked, collapsed, or unknown inside
- Applications where electrical connections may be submerged in water
- Installations requiring a sealed entry point for a pressurized system
Product Selection Help
Choose DrainGuard If You need freeze protection for a small non-pressurized condensate, furnace, boiler, ice maker, humidifier, or dehumidifier drain line.
Choose Potable In-Pipe Cable If You need freeze protection inside a pressurized drinking water supply line or household water pipe.
Heating Cable Specifications
| Product Type |
In-pipe heating cable kit for small non-pressurized drain lines |
| Product Series |
DrainGuard DGK |
| Voltage |
120 V AC |
| Standard Power Output |
3 W/ft at 50°F / 10°C |
| Optional Power Output |
5 W/ft at 50°F / 10°C may be available upon request |
| Cable Type |
Self-regulating heating cable |
| Heating Cable Model |
PG-3CT1 standard / PG-5CT1 optional |
| Outer Jacket |
Fluoropolymer |
| Minimum Working Temperature |
-40°F / -40°C |
| Maximum Exposure Temperature |
185°F / 85°C |
| Maximum Maintenance Temperature |
149°F / 65°C |
| Bus Wire Gauge |
18 AWG |
| Cable Dimensions |
0.30 × 0.19 in / 7.9 × 4.7 mm |
| Certification |
CSA-certified heating cable |
| Recommended Pipe Size |
3/4" drain line standard; 1/2" drain line with included adapter components |
| Pipe Type |
PVC or ABS non-pressurized drain pipe |
| Field Cutting |
Do not cut or modify the heating cable in the field |
Kit Includes
Self-regulating heating cable 3/4" PVC Y-fitting Rubber gasket Sealing grommet Lock nut 3/4" to 1/2" PVC adapters PVC pipe nipples Installation manual
How to Choose the Right Length
Choose a cable length based on the total drain-line area that may be exposed to freezing. Measure from the planned Y-fitting entry point to the farthest freeze-prone section of the drain line.
Pipe length from equipment to exterior exit Sections passing through unheated rooms Wall penetration areas Outdoor exposed drain sections Drain hose or tubing routed through cold spaces Extra cable needed for nearby wrapping Outlet distance from the installation area Whether pipe insulation will be added
The heating cable does not need to be fully inserted into the pipe.
Any remaining cable may stay outside the pipe or be wrapped around nearby unheated drain sections for additional freeze protection. Do not cut or shorten the heating cable in the field.
Suggested Length Guide
| 5 ft |
Short exposed drain sections or compact installations |
| 10 ft |
Common short condensate drain protection |
| 20 ft |
Longer runs through basements, garages, crawl spaces, or wall exits |
| 30 ft |
Extended drain lines or multiple exposed areas |
| 50 ft |
Long runs, special installations, or service-professional use |
If you are between two sizes, choose a length that is slightly longer than your estimated freeze-prone section. This allows for better coverage and optional wrapping around nearby exposed drain sections.
Custom Lengths
Custom lengths may be available upon request. Contact yelodeer@yelodeer.com before ordering.
Please include pipe diameter, required heating length, application type, installation photos, and whether the drain line is PVC, ABS, or flexible hose.
Installation Type

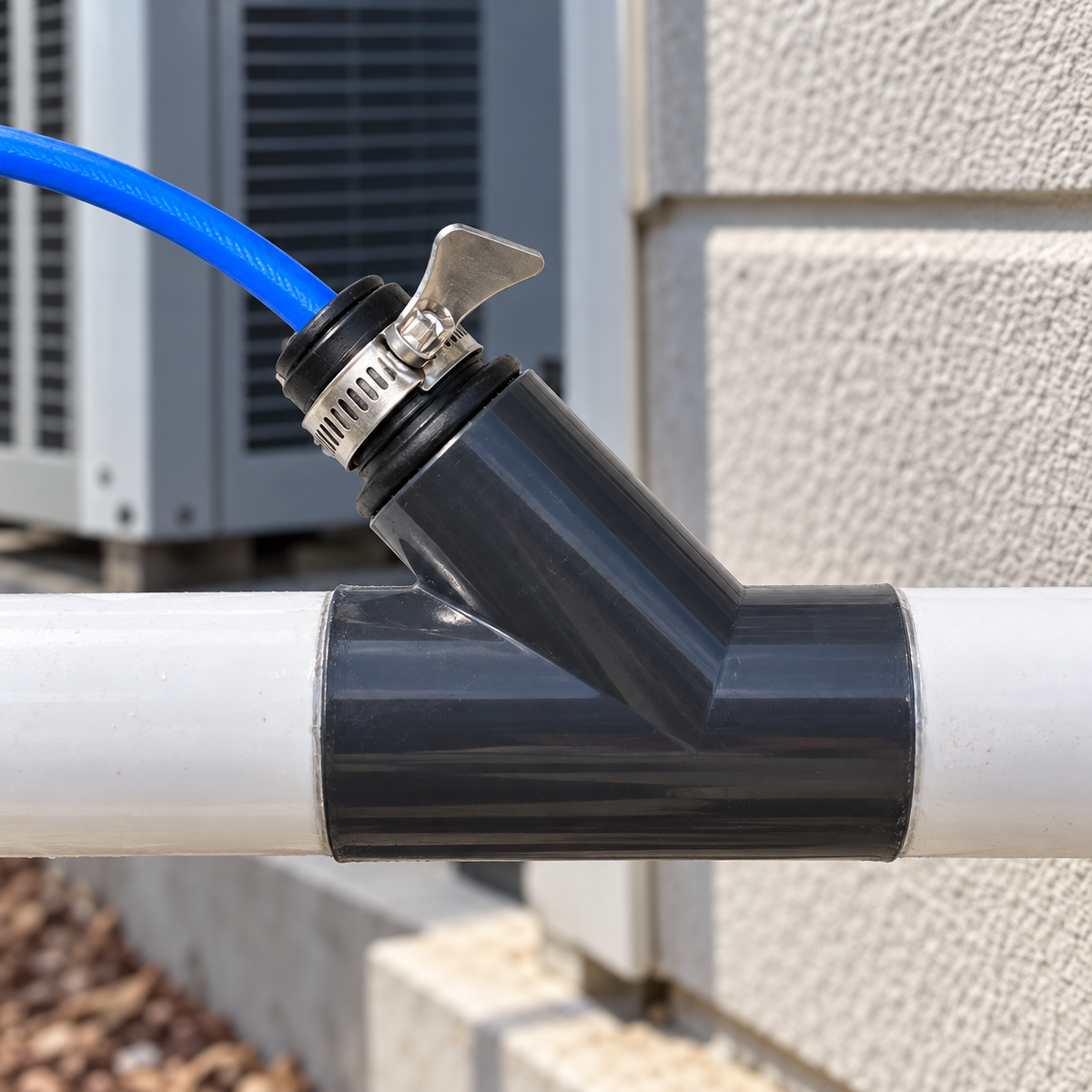

DrainGuard uses a cut-and-connect drain-line installation. A short section of the existing drain line is removed and replaced with the included PVC Y-fitting assembly. The heating cable is then inserted through the side port and routed into the drain line.
Recommended Tools
Pipe Cutter Measuring Tape Marker Deburring Tool PVC or ABS Primer Solvent Cement Safety Glasses Cut-Resistant Gloves
General Installation Steps
- Disconnect power before installation.
- Shut off the HVAC, furnace, boiler, or appliance connected to the drain line.
- Locate the freeze-prone section of the drain line.
- Confirm the drain line is non-pressurized.
- Confirm pipe material and select the correct primer and solvent cement.
- Measure and cut the pipe conservatively.
- Deburr and clean all pipe ends.
- Install the Y-fitting and adapter components as needed.
- Insert the heating cable through the Y-fitting side port and into the drain line.
- Install the rubber gasket, sealing grommet, and lock nut.
- Route any remaining cable outside the pipe or wrap it around nearby unheated drain sections if needed.
- Plug into a grounded 120 V AC outlet after installation is complete.
- Confirm the cable warms within 5–10 minutes, then check drainage flow and seals for leaks.
Cut Length Reference
| 3/4" Drain Line |
Recommended cut length: 2.75 in / 7 cm |
| 1/2" Drain Line |
Recommended cut length: 8.25 in / 21 cm |
Cut conservatively.
If too little pipe is removed, additional trimming can be done during installation. If too much pipe is removed, proper insertion depth may not be achieved, which may result in weak joints or leaks.
Important Installation Notes
Use Correct Cement Use primer and solvent cement compatible with the actual pipe and fitting materials being installed.
Do Not Overtighten Tighten the lock nut evenly until the rubber gasket is compressed and a watertight seal is formed.
Protect Sharp Edges Deburr all cut pipe ends and protect the cable wherever it may contact sharp edges.
Maintain Drainage Slope Keep proper drain slope so water does not sit in the pipe and refreeze.
Protect Outdoor Power For outdoor installations, use a weatherproof outlet cover where required.
Use Proper Extension Cord If an extension cord is used, it should be grounded, 16 AWG or heavier, and compliant with applicable codes.
Using Pipe Insulation
For best results, wrap protected drain sections with suitable pipe insulation after installation. Insulation helps reduce heat loss and improves freeze protection in exposed or unheated areas.
Garage Drain Lines Basement Utility Areas Crawl Space Drains Exterior Wall Exits Outdoor Drain Sections Wind-Exposed Areas
Temperature Controller Recommendation
DrainGuard can operate without an external thermostat because it uses a self-regulating heating cable. However, a thermostat controller can help improve energy efficiency and convenience during winter.
For automatic temperature control, use with YeloDeer Pipe Heat Tape Thermostat, sold separately.
Flexible Hose Adapter Note
Flexible drain hose installations require a properly sized hose barb-to-PVC adapter and clamp. These parts are not included with the kit.
Use only properly sized fittings suitable for the hose and drain application. Do not use this product on pressurized hose or potable water supply tubing.
Use this quick guide to confirm whether DrainGuard is the right solution before ordering. For longer explanations, we recommend reading the related articles in the YeloDeer Knowledge Center after they are published.
1. How to Choose the Right Length
Start from the planned Y-fitting entry point and measure the full drain section that may be exposed to freezing. Do not measure only the visible outdoor part if the pipe also passes through an exterior wall, garage, crawl space, attic, basement edge, or other unheated area.
Measure from the Y-fitting entry point Include hidden cold-wall sections if known Include outdoor exposed drain sections Include garage, attic, crawl space, or basement runs Allow extra length for nearby wrapping Do not cut the heating cable shorter
If you are between two sizes, choose the next suitable length. The heating cable does not need to be fully inserted into the pipe. Extra cable may remain outside the pipe or be wrapped around nearby exposed drain sections for supplemental freeze protection.
2. DrainGuard vs External Heat Tape
External Heat Tape
Wraps around the outside of the pipe. It can work well when the pipe is fully accessible, properly insulated, and heat can transfer through the pipe wall effectively.
DrainGuard In-Pipe Heating
Places the heating cable inside the drain line, closer to where ice forms. This is useful for small drain lines, wall exits, tight spaces, and pipe sections that are difficult to wrap externally.
External heat tape may not fully protect pipe sections inside walls, behind equipment, through floors, or in tight areas where complete wrapping is difficult. DrainGuard helps protect the internal drainage path from an accessible Y-fitting location.
3. Already Frozen? Read This First
DrainGuard is designed for prevention, not emergency thawing.
If the drain line is already frozen, thaw and restore normal drainage before installation. Do not force the cable into a blocked, collapsed, leaking, or unknown drain line.
Warm the surrounding area if safe Use warm towels on accessible pipe sections Use a hair dryer on low or medium heat for exposed sections Do not use open flames or torches Do not pour boiling water into PVC or flexible tubing Call a professional if the frozen section is hidden or severe
4. Before You Install
DrainGuard requires a cut-and-connect installation. Make sure the drain line, pipe size, material, and access point are suitable before ordering or beginning installation.
Confirm Drain Type
Use only on non-pressurized gravity drain lines, not pressurized water supply lines.
Confirm Pipe Size
Designed for 3/4" drain lines and adaptable to 1/2" drain lines using included parts.
Confirm Pipe Material
Best suited for PVC or ABS drain pipe with proper primer and solvent cement.
Confirm Access
You need enough room to cut the pipe, install the Y-fitting, route the cable, and inspect for leaks.
Confirm Drainage Slope
Poor slope can leave standing water in the line and increase freezing risk.
Confirm Power Protection
Use a grounded 120 V AC outlet and protect outdoor electrical connections from moisture.
Need Help Choosing?
If you are unsure whether DrainGuard fits your application, email yelodeer@yelodeer.com before ordering.
Please include pipe photos, pipe diameter, pipe material, required heating length, where the line freezes, and whether the line is for condensate, furnace, boiler, ice maker, drain, sewer, septic, or potable water.
